Product Description
Fits: 4T40E / 4T45E / 4T60E / 4T65E

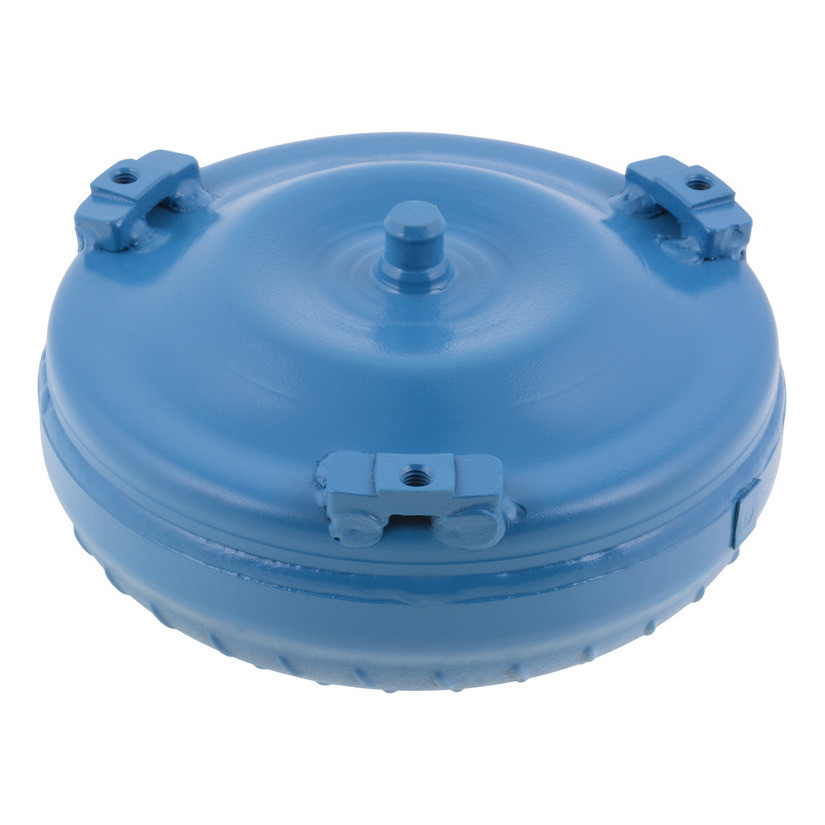

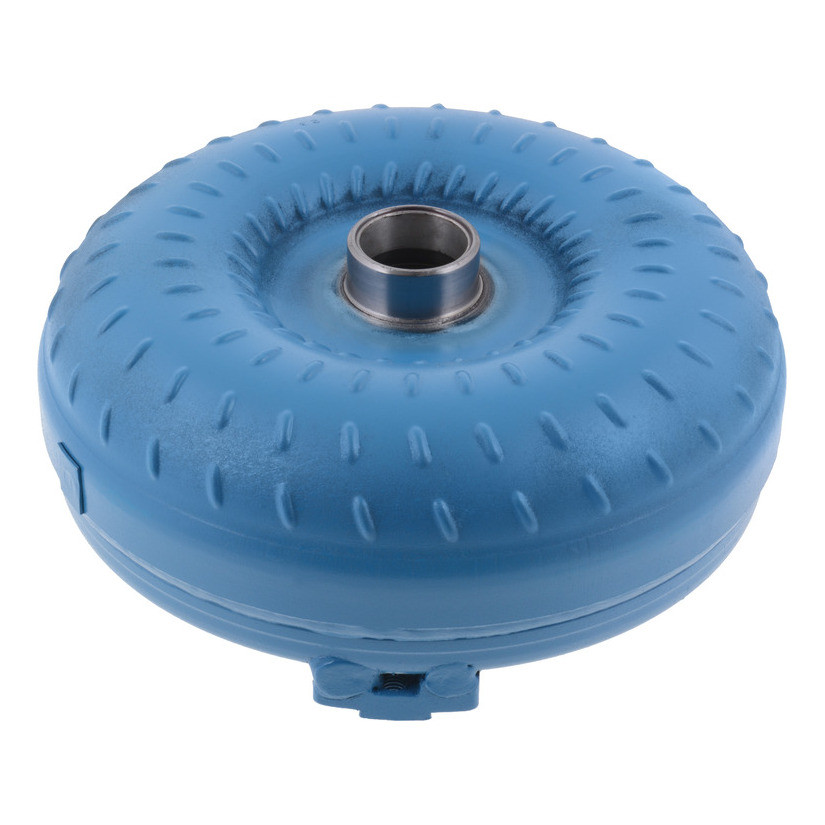

Lock-up torque converter for GM 4T40E, 4T45E, 4T60E and 4T65E transmissions with 1500-1750 stall. It has a 10.20 in overall diameter, 9.375 in bolt pattern, 3-pad mount with 10mm x 1.5 threads, bushing hub, .824 in pilot diameter and 27 splines.
Specifications
| Fits | 4T65E, 4T60E, 4T45E, 4T40E |
|---|---|
| Overall diameter | 10.20 in |
| Bolt pattern | 9.375 in |
| Mount | 3 pad, 10mm x 1.5 thread |
| Hub | Bushing hub |
| Pilot diameter | .824 in |
| Splines | 27 |
| Stall | 1500-1750 |
| Codes | 24204741 FLHB, 24204741, 24208344, 24208475, 24212743, 24217466, 24217467, 24219827, 24222019 |
| Transmissions | 4T60-E 1991 - 2000; 4T80-E 2004 - 2005; 4T65-E-HD/MN7 1997 - 2008; THM125C 1993 - 1993; 4T65-E 1996 - 2009; 4T45-E 1999 - 2010; 4T40-E 1996 - 2005; 4T65-E-HD 2000 - 2005 |
| Brand | Recon or CVC |
Notes
Part number: GM71CW Torque Converter; Lock-Up, 10.20" Overall Dia., 9.375" Bolt Pattern, 3 Pad, 10mm x 1.5 Thread, Bushing Hub, .824" Pilot Dia., 27 Splines, 1500-1750 Stall; Codes: 24204741 FLHB, 24204741, 24208344, 24208475, 24212743, 24217466, 24217467, 24219827, 24222019
Core Charge
Core charge: $110, already included in the price. The price of this converter includes a $110 refundable core charge. When your new converter arrives, send your old converter back with the prepaid return label we provide (for returns from within the USA), and we will refund the $110 once the core is received and checked.
- Return the core within 30 days of delivery.
- Outside the USA? The prepaid label only works for returns from within the USA. You can still ship the core back at your own cost to receive the refund.
- The core must be the same type as the converter you bought, complete, and not cracked, cut open or taken apart.
- Drain the fluid, pack it securely, and put your order number in the box.
- We refund the core charge to your original payment method within 5 business days of receiving it.
Contact us before shipping if your core is damaged or you need a new label.
