Product Description
Fits: 4T60 / 440-T4 / 4T60E / 4T65E · all years
Alto clearance PowerPack for the 2nd, 3rd and forward clutches in GM 4T60, 440-T4, 4T60E and 4T65E transmissions, all years. Made in the USA. These clutch packs have no factory provision for clearance adjustment, and excess clearance can contribute to a maximum long-term shift adapt code P1811. This kit provides the parts to adjust each pack.
Specifications
| Manufacturer part number | Alto Products Corp 062759 |
|---|---|
| Fits | 4T60, 440-T4, 4T60E, 4T65E |
| Clearance per friction element | .010” |
Directions
2nd clutch: the normal steel plate is .068 in thick, with five steels (062733) and six .070 in frictions (062722). Using the .090 in 062733-228 steel together with OE thickness steels lets you adjust the pack.
Forward clutch: the 041251-082 snap ring adjusts the clearance.
3rd clutch: the normal stack has five internal splined (062724) and five external splined (062725) 1-sided plates, .079 in thick. Using five of the .083 in 062715 external spline plates gains .040 in of clearance.

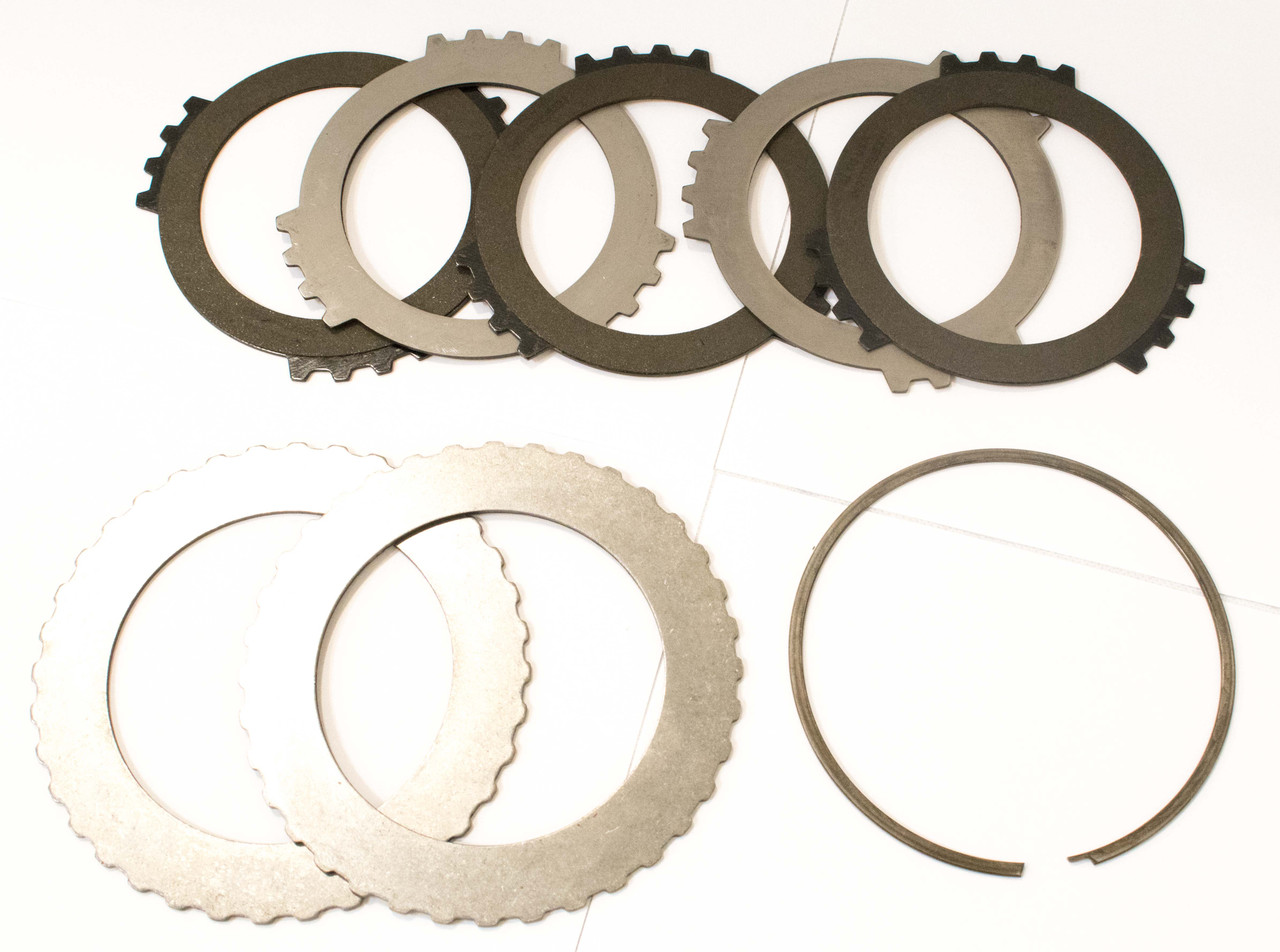

What's included
- (2) 062733-228 (.090” / 2.28mm) 2nd clutch selective steel
- (5) 062715 (.083” / 2.10mm) 3rd clutch external spline 1-side HEG friction
- (1) 041251-082 (.082” / 2.08mm) snap ring
Notes
Remember to make sure there is sufficient clearance; allow .010” per friction element.
Instructions and resources
Product Videos
Custom Field
Product Reviews
1 Review Hide Reviews Show Reviews
-
Nice kit of clearance upgrades
I used this kit to reduce the 3rd clutch clearance on my 2002 Volvo 4T65EV transmission from 0.070" to 0.045", which was a better alternative to shimming with a shaved used external friction. Each of the five frictions will only gain you 0.004", so I don't know how the claim of 0.040" clearance gain is calculated. I already had two thicker 2nd clutch steels, so didn't need the ones in this kit, but they would have been useful if I didn't have them already. The input retainer ring, although thicker, is also narrower than the stock ring and doesn't hold in place in the input housing as firmly, so I stayed with the stock ring.
