E4OD 4R100 Stage-1 Performance Clutch Module April1997-UP (Raybestos) Red Plate Frictions

Product Description

Stage-1 (red plate) friction kit for the Ford E4OD and 4R100, April 1997-UP (32-tooth overdrive frictions), assembled from Raybestos plates. The contents list below is exactly what is in the box.

Specifications

About Stage-1 frictions

Stage-1 (red) performance frictions sit between stock tan or High Energy plates and the Gen2 Blue Plate Special racing material. They hold more torque and handle more heat than stock plates, for performance builds and heavy towing. Made in USA. The forward plates have a hardened core to prevent tooth wear and tooth sharpening over time.

For 1988 to March 1997 units, see 3021A-STO2.

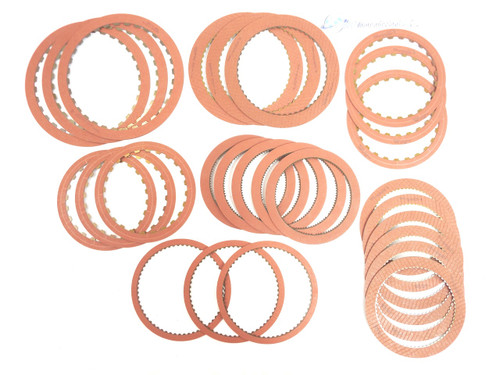

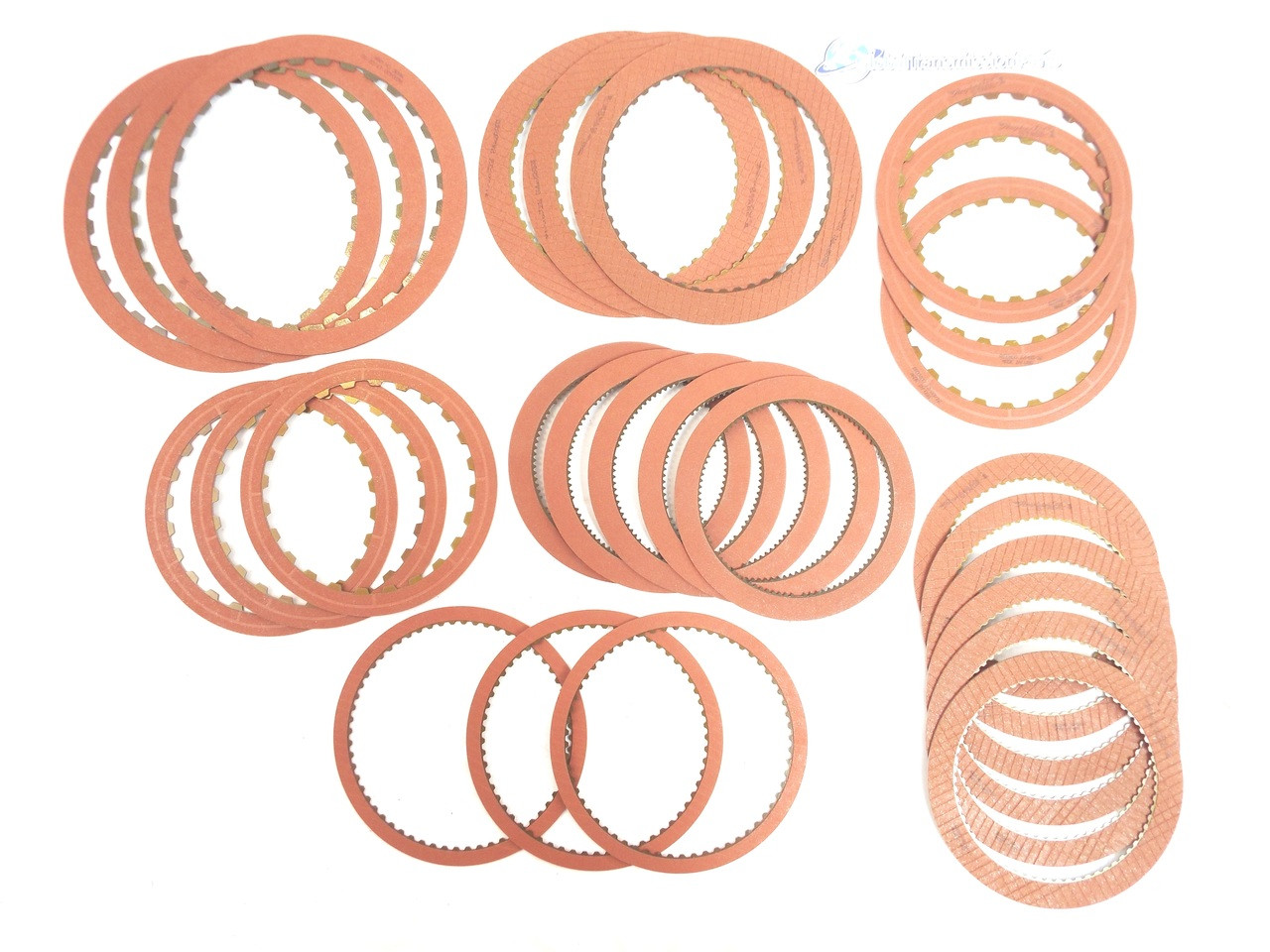

What's included

• 6 x Low/Reverse, Stage-1 (red): .078" (1.98 mm) thick, 6.795" OD, 24 teeth (R600400)
• 5 x Direct, Stage-1 (red): .077" (1.96 mm) thick, 6.389" OD, 64 teeth (R600340)
• 3 x Overdrive, Stage-1 (red): .077" (1.96 mm) thick, 8.688" OD, 32 teeth (R600420)
• 3 x Coast, Stage-1 (red): .077" (1.96 mm) thick, 6.594" OD, 60 teeth (R600430)
• 3 x Intermediate, Stage-1 (red): .077" (1.96 mm) thick, 7.793" OD, 50 teeth (R600380)
• 4 x Forward, hardened core, Stage-1 (red): .077" (1.96 mm) thick, 6.365" OD, 90/96 teeth (R600360)

Instructions and resources

• E4OD Stage-1 kit, 1988 to March 1997 (3021A-STO2)
