Product Description

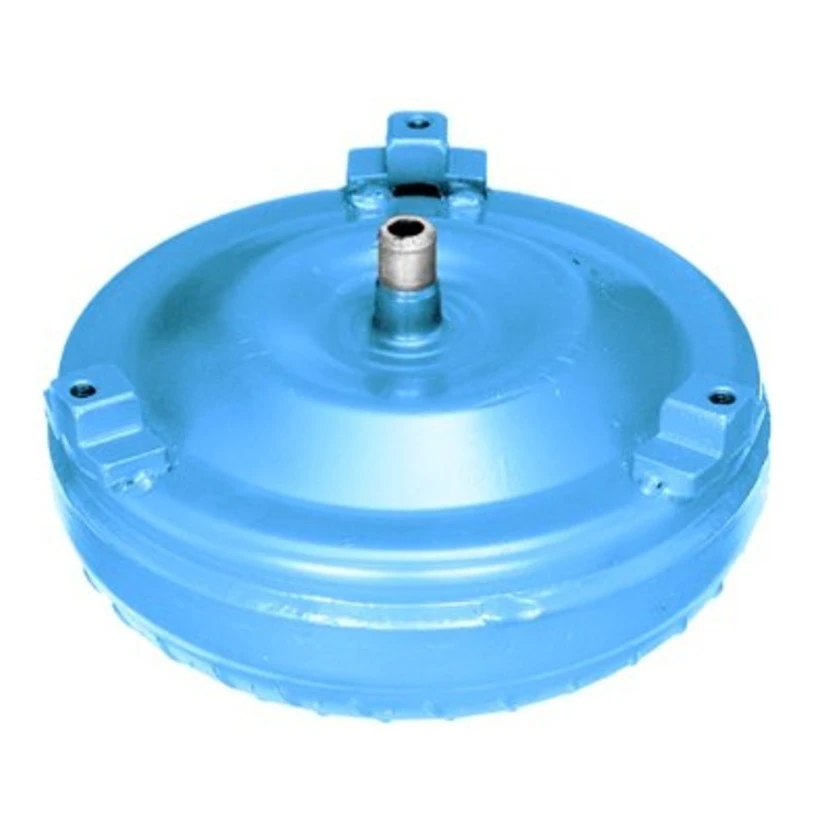

Torque Converter; Lock-Up, 10.20" Overall Diameter, 9.875" Bolt Pattern, 3 pad Mount w/ 10mm x 1.5 Thread, Slotted Hub, .825" Pilot Diameter, 1.50" Pilot Length, 27 Spline, 1800-2200 Stall Speed; Codes: 24202522, 24219407, 24227093, HLQD
PRICE INCLUDES CORE CHARGE & ALL DOMESTIC SHIPPING CHARGES
Specifications
| Body Diameter Inches | 10.375 |
|---|---|
| Body Diameter mm | 263.5 |
| Hub Type | Slotted Flanged |
| Hub Internal Bushing | No |
| Hub Seal Groove | No |
| Number of Mounts | 3 |
| Mount Type | Stepped Pads |
| Mount Threads | 10mm X 15 |
| Bolt Circle Inches | 9.875 |
| Pilot OD Major Inches | 0.825 |
| Pilot Type | Straight |
| With Ring Gear | No |
| Ring Gear Tooth Count | 0 |
| Codes Metal/Laser Stamped | 24219407 |
| Codes Sticker | 24219407 |
| Cooling Shroud | No |
| Billet Cover | No |
| Pump Stall | Medium Stall |
| Turbine Internal Spline Count | 27 |
| Lock-Up Unit | Yes |
Transmissions
| Name | Years |
|---|---|
| 4L60-E | 1995 - 2012 |
Vehicle Fitment
| Years | Vehicle | Drive Types |
|---|---|---|
| 2004 - 2012 | Chevrolet Colorado | RWD, 4WD |
| 1997 - 2002 | Chevrolet Camaro | RWD |
| 2004 - 2012 | GMC Canyon | RWD, 4WD |
| 1995 - 2002 | Pontiac Firebird | RWD |
