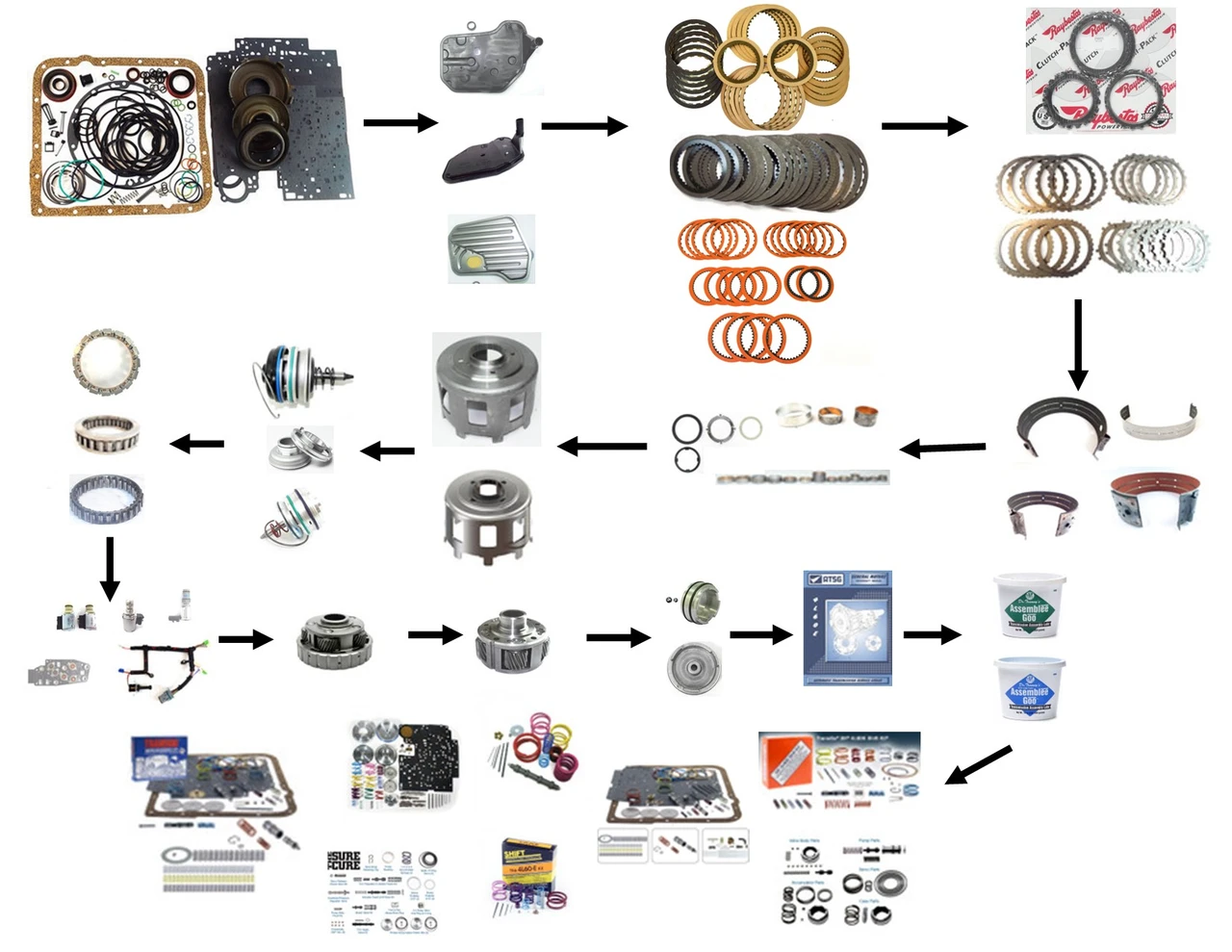

Build Your Own 4L60E 4L65E 4L70E Loaded Master Rebuild Kit (1993-UP)

Product Description

Build your own 4L60E 4L65E 4L70E rebuild kit: choose the parts that match the transmission on your bench and leave out what you don't need. This builder has 35 choices: 1 required (Overhaul/Seal Kit) and 34 optional upgrades and add-ons.

Brands offered in this kit include Alto, Raybestos, Exedy, BorgWarner, Sonnax, TransGo, Superior, Fitzall, Dura-Bond, Lubegard, Dr. Tranny, ATSG, Torrington and Fairbanks.

What you can choose

• Overhaul/Seal Kit (required): Gasket & Seal Overhaul Kit (1993-E1997); Gasket & Seal Overhaul Rebuild Kit (L1997-2003); Gasket & Seal Overhaul Rebuild Kit (2004-2014) (Comes with a Bonded Separator Plate)
• Transfer Case Adapter Gasket (4WD Only): 5-Bolt Transfer Case Adapter Gasket; 6-Bolt Transfer Case Adapter Gasket
• Molded Rubber Piston Kit: 700R4 4L60E Molded Rubber Piston Upgrade Kit (1982-E1997); 4L60E|4L65E Molded Rubber Piston Pack (L1997-UP); Red Eagle® Hi-Performance PowerPistons™
• Upgrade to Reusable Farpak Pan Gasket: Farpak (your overhaul kit already includes a standard pan gasket)
• Filter: Shallow Oil Filter (1993-1997); Deep Oil Filter (1997-UP) "No Leak" Performance 1-Piece Design; Oil Filter Hummer H3, Colorado, Canyon ONLY (2004-UP); Corvette Only w/ Shallow Pans (1997-UP)
• Friction/Clutch Module: Clutch Friction Module (1987-Up) Alto; Clutch Friction Module (1987-UP) Raybestos; Clutch Friction Module (1987-UP) Exedy; Friction Clutch Plate Module (1987-UP) Borg-Warner; Friction Module w/ Z-Pak Upgrade (1987-Up) Raybestos; Red Eagle Performance Clutch Module (1987-UP) Alto; Stage-1 Performance Clutch Module (1987-UP) Raybestos (Comes with 8 .062" Thin 3-4 Frictions); Gen2 Blue Plate Special High Performance Friction Clutch Module (1987-UP) Raybestos
• Steel Module: Steel Module (1987-UP); High Performance Kolene Steel Module (1987-UP)
• Band: High-Energy Carbon 2-4 Band by Alto (1982-UP); 2-4 Band (1982-UP) Borg-Warner; High-Energy ProSeries 2-4 Band by Raybestos (1982-UP); Extra Wide Red Eagle 2-4 Band (1982-UP) 2-5/8'' Alto; Extra Wide Super-Pro 2-4 Band (1982-UP) 2-5/8'' Raybestos; 700R4 4L60E 4L65E 2-4 Band Aftermarket
• Bushing Kit: Master Bushing Kit (1985-UP); Master Bushing Kit (1982-UP) Dura-Bond; Pump Bushing Kit (1993-UP)
• Bearing Kit: Torrington Bearing Kit (1982-2006) w/o 2001-UP Reaction to Sun Shell Bearing; Torrington Bearing Kit (1982-2006) w/ 2001-UP Reaction to Sun Shell Bearing(Full Kit); Torrington Bearing Kit (2007-UP) w/o 2001-UP Reaction to Sun Shell Bearing; Torrington Bearing Kit (2007-UP) w/ 2001-UP Reaction to Shell Bearing(Full Kit) (Options with and without 2001-UP Reaction to Shell Bearing due to cost of bearing)
• Thrust Washer Kit: Thrust Washer Kit (1982-2006)
• Heavy Duty Sun Shell: Sun Gear Reaction Shell - HD Washer and Bearing Style (1982-UP); SmartShell® Heavy Duty Reaction Shell Kit (1982-UP) Sonnax; Sun Gear Reaction Shell - The Beast
• Heavy Duty Separator Plate: Valve Body Separator Plate by Transgo (1993-1994); Valve Body Separator Plate by Transgo (1995); Valve Body Separator Plate by Transgo (1996-2006); Valve Body Separator Plate by TransGo (2009-2013) (Upgrade - Replaces the Bonded Plate in the Kit); Valve Body Separator Plate by TransGo (2007-2008) (Upgrade - Replaces the Bonded Plate in the Kit) (Not needed with 4L60E-PRO)
• Forward Sprag: Forward/Input Clutch Sprag (1987-UP); HD Forward Sprag (29-Element) Borg-Warner (1987-UP)
• Low/Reverse Sprag: Low Reverse Roller Clutch Sprag (1987-UP) Aftermarket; Low Reverse Roller Clutch Sprag (1987-Up) Borg Warner
• Servo: Performance Corvette 2-4 Servo (1982-UP) (Pistons Only); Performance Corvette 2-4 Servo Assembly (1982-UP) Ready-to-Install; Extreme HD Billet 2-4 Super Servo Complete Assembly (1982-UP) Ready-to-Install (Not needed with 4L60E-PRO)
• Pump Hard Parts Kit: 4L60E Pump Hard Parts Kit 13-Vane; 4L60E Pump Hard Parts Kit | 10-Vane
• 1-2 Accumulator Piston: 1-2 Accumulator Piston (1982-UP) Aluminum Small Pin Style; 1-2/3-4 Pinless Accumulator Piston Kit (1982-UP) Sonnax 77998-03K (Not needed with 4L60E-PRO or Sonnax Performance Pack)
• Reverse Drum: Reverse Input Drum (1993-UP) Remanufactured; Reverse Input Drum (1993-UP) New (Recommended if you buy a wide band)
• Front planetary: 4-Pinion Front Planet (1982-2004); 5-Pinion Front Planet OEM Remanufactured; 5-Pinion Front HD Planet (No Reaction Shaft); Front 5 Pinion HD Planet (With HD Reaction Shaft and Bearing); Front 6 Pinion Planet HD 2.84 Ratio Input Carrier Kit by Sonnax (1982-UP) 77284-K
• Rear Planetary: 4-Pinion Rear Planet (USED); 4-Pinion Rear Planet w/ Oil Slinger (Used); 4-Pinion Rear Planet (New); 5-Pinion Rear Planet OEM Remanufactured; Rear 5-Pinion HD Planet (New)
• Shift Kit: Valve Body Shift Correction Package (1993-1997) Superior #K4L60-E; Shift Kit (1993-2015) Non-Hybrid TransGo #SK4L60E; Shift Correction Package (1998-2005) Superior #K4L60E-L; PowerTow Performance Shift Kit (1996-2/05) Superior/Fairbanks #PT4L60-E; Sonnax Performance Pack Shift Kit (1994-UP) Sonnax #HP-4L60E-01 - Includes 1-2 & 3-4 Pinless Accumulator Pistons, Servo Release Check Valve, Forward Accumulator Kit, Boost Valve, Checkballs; Transmission Reprogramming Kit (1993-2015) TransGo #4L60E-HD2; Manual Shift Control Reprogramming Kit (1993-2008) TransGo #4L60E-3; Sure Cure Kit (Requires Tooling) (1995-UP) Sonnax #SC-4L60E; plus 1 more
• Boost Valve: Boost Valve & Sleeve by Fitzall (1993-2004); Line Pressure Booster Kit by Sonnax (1.907'' Sleeve 1993-2004); Upgraded HD Steel Pump Boost Valve by Superior (1993-2004); Boost Valve & Sleeve by Superior (2005-UP); Boost Valve & Bushing Steel Replacement Kit 0.500'' (1993-UP); Line Pressure Booster Kit by Sonnax (1.810'' Sleeve) (2005-UP) (Skip if you chose TransGo HD2/-3/PRO, Sonnax Sure Cure or Performance Pack - included)
• Check Ball in Capsule for Servo: Check Ball in Capsule for Servo; Servo Release Check Valve Kit (1982-UP) Sonnax (Included in Sonnax Performance Pack); 3rd Accumulator Directional Switch Valve by Superior (K0136); 3rd Accumulator Checkball & Seat by Sonnax (Common reason for 3-4 burn up)
• 1-2 3-4 A/B Shift Solenoid Set: 1-2 3-4 A/B Shift Solenoid Set (1993-UP)
• Pressure Control Solenoid (EPC): Electronic Pressure Control Solenoid (1990-2002); Electronic Pressure Control Solenoid (2003-UP)
• TCC PWM Solenoid: TCC PWM (1996-UP)
• 3-2 Downshift Solenoid: 3-2 Downshift Solenoid (1993-1995); 3-2 Downshift Solenoid (1996-UP)
• Manifold Pressure Switch: Manifold Pressure Switch (1993-2008) (No MPS used from 2009-UP)
• Internal Wire Harness w/TCC Lockup Solenoid: TCC Lockup Solenoid & Wire Harness (1993-2002) 12143279; TCC Lockup Solenoid & Wire Harness (2003-2008) no ISS Plug; TCC Lockup Solenoid & Wire Harness (2006-08) w/ ISS Plug; TCC Lockup Solenoid & Wire Harness (2009-UP) w/ ISS Plug
• Rebuild Manual: 4L60E ATSG Tech Service Rebuild Manual
• Update Rebuild Manual: 4L60E 4L65E ATSG Tech Service Rebuild Update Manual (engineering changes from 1993 to 2003)
• Tub of Assembly Lube: Dr. Tranny Transmission Assembly Lube - Green Firm; Dr. Tranny Transmission Assembly Lube - Blue Soft; Dr. Tranny Transmission Assembly Treatment by Lubegard; Sonnax Slippery Stick O-LUBE
• Rebuild Tool Kit: 700R4 4L60E 4L65E 4L70E Rebuild Tool Kit
• Input Drum Reinforcement Kit: Input Drum Reinforcement Kit by Sonnax 77733-51KA

Not sure which option fits? Contact us with your vehicle's year and model and your transmission's identification and we'll help you choose.
