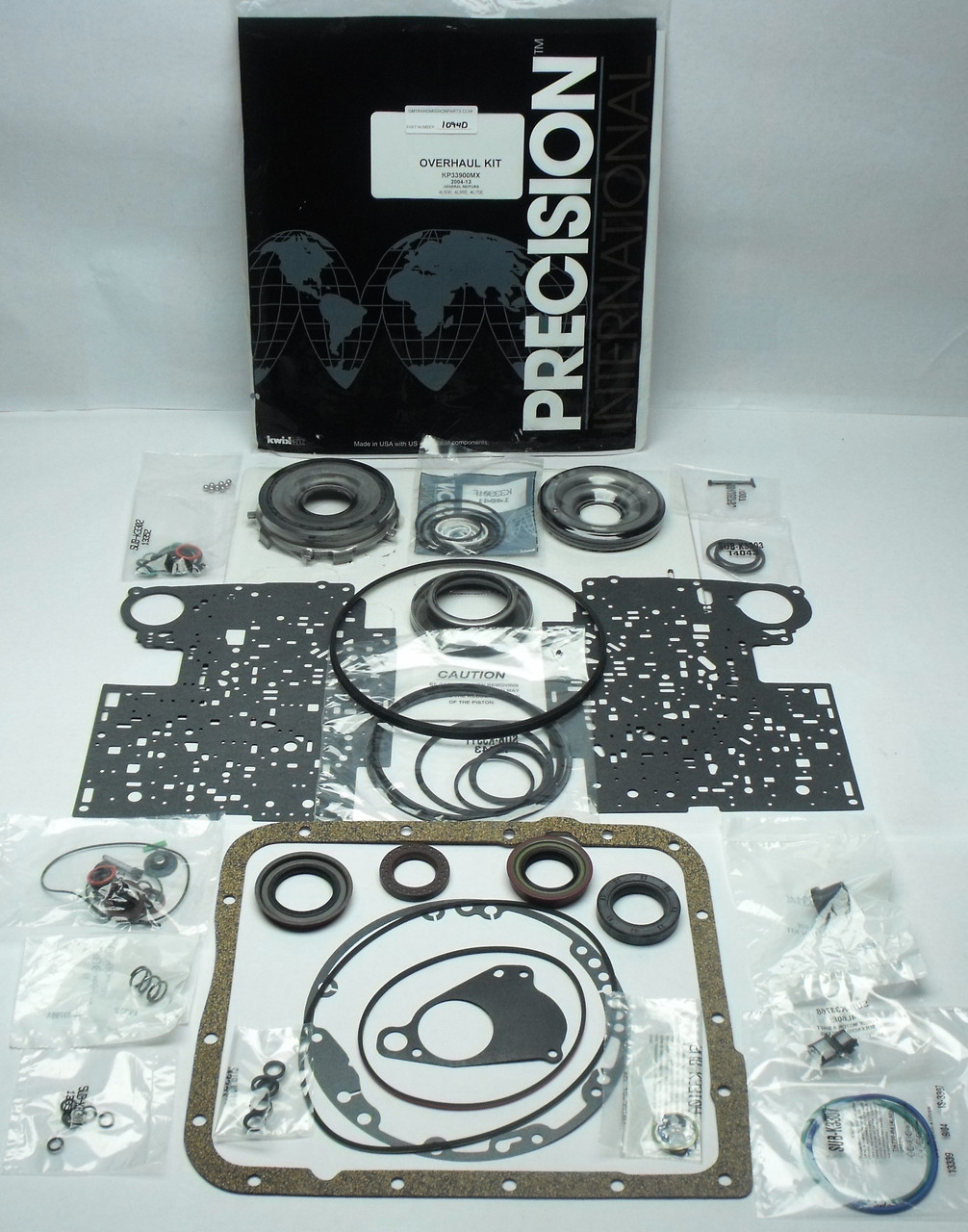

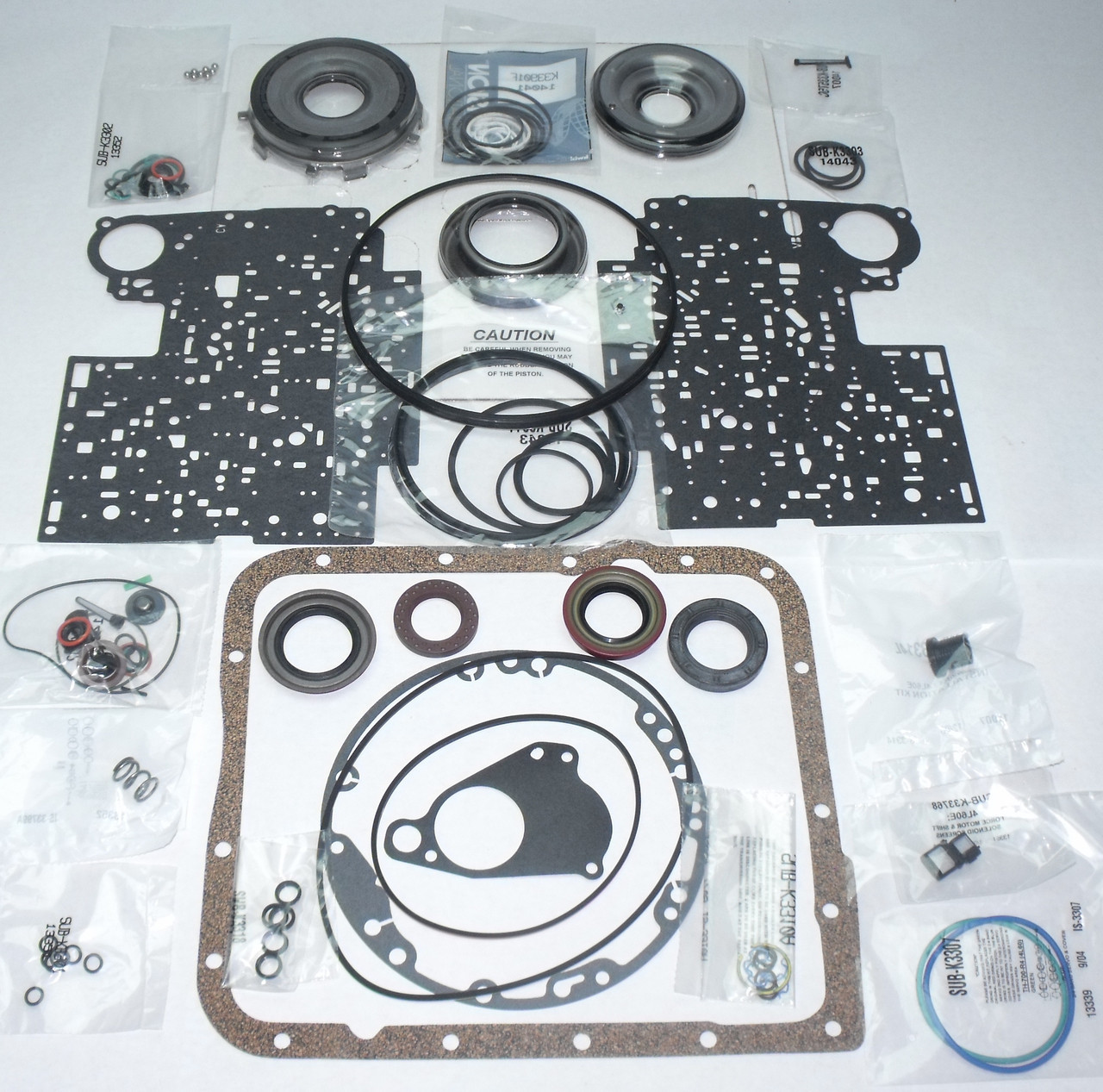

4L60E|4L65E Gasket & Seal Overhaul Kit w/ Molded Rubber Pistons (2004-2013)

Product Description

Precision International overhaul kit with molded rubber pistons for GM 4L60E and 4L65E transmissions from 2004-2013. It has the molded rubber piston pack plus the basic seals, gaskets, O-rings and filters needed for the rebuild.

The kit is made in the USA to meet or exceed OEM specifications, uses rubber and fiber materials, and is packaged for the rebuilder so parts are easy to find.

Specifications

About Precision International

Precision International supplies parts for import and domestic automatic transmissions to the aftermarket and to original equipment manufacturers (OEMs).

What's included

• Molded rubber piston pack (PI K33900-99)
• Upper valve body gasket, 2001-UP (OEM 24211920)
• Lower valve body gasket, 2001-UP (OEM 24211921)
• Valve body check ball set of 8 (OEM 8631975)
• 1-2 accumulator housing gasket (OEM 24211603)
• Wedge style front pump seal (OEM 24226315)
• Metal clad front pump oil seal (OEM 24202535)
• Oil pan gasket, cork (OEM 8642360)
• Adapter housing metal clad seal for 4WD Colorado, Canyon (PI 33972 / OEM 97287358)
• Pump bolt O-ring kit (PI SUB-K3301 / OEM 8654341)
• Electrical O-ring and filter seal kit (PI SUB-K3302)
• Accumulator piston O-ring kit (PI SUB-K3303)
• Seal kit (PI SUB-K3311)
• Pump filters and screens (PI SUB-K3312)
• 2-4 servo inner and outer housing O-ring kit (PI SUB-K3307 / OEM 8642112 and 8647351)
• Transmission cooler seal and output shaft snap ring kit (PI SUB-K33101A)
• Filter hat seal kit (PI SUB-K3314L)
• Pressure manifold seal kit (PI SUB-K3318)
• Force motor and shift solenoid filter screen kit (PI SUB-K33768 / OEM 8683768 and 8683769)
• 2-4 servo spring kit (PI SUB-K33799A / OEM 8654391)
• TCC solenoid screen (PI SUB K-33575C)
• Teflon sealing ring kit with 12 rings (PI SUB-K33901F)
• Pump outside O-ring
• 4WD extension housing O-ring
• Pump to case gasket (PI 33702A)
• 2WD extension housing oil seal (PI 8850A)
• 4L60E/4L65E rebuild technical sheets: recommended torque specs, bolt information, electrical resistance, valve body check ball locations, solenoid chart
