Product Description
Fits: 4F50N, AX4S, AX4N, AXODE, AXOD
Fits all except 3.0 liter 12 valve, factory style sleeve, no O-ring.
Vehicles with Ford AXOD, AXODE, AX4S or AX4N transmissions frequently have flare 1-2 and 2-3 upshifts, high pressure, harsh Reverse (300 psi), 2-1 downshift clunk, non-adjustable throttle pressure and clutch or band failure from poor line rise. This is caused by wear on the inside bore of the boost sleeve allowing TV/EPC and/or Reverse oil to either leak to exhaust or cross-leak. Sonnax offers boost valve kits for both 3.0 and 3.8 liter applications and sleeves with or without O-rings (factory style) to eliminate the above problems.
- Sleeves are made from high-quality aluminum to prevent wear
- Hardcoat anodized aluminum valve combats premature wear
- O-ring sleeves prevent leakage between the sleeve and valve body bore
- Available in two sizes: 96201-12K (O-ring style) with a small diameter boost valve of .475"; 96201-01K (O-ring style) and 96201-08K (factory style) with a small diameter boost valve of .491"
- Drop-in Zip Valve® parts install quickly and easily
Symptoms
- 1-2 Flare
- 2-3 Flare
- 2-1 Clunk
- Harsh Reverse
- Clutch failure
- Band failure
- Non-adjustable (high) throttle pressure
Cause
The boost valve wears the inside diameter of the boost sleeve, allowing TV/EPC and Reverse oil leakage.
Correction
Sonnax drop-in boost valve kits provide wear-resistant materials, minimum clearance for restored pressure control, and optional O-rings for positive sealing within the bore.

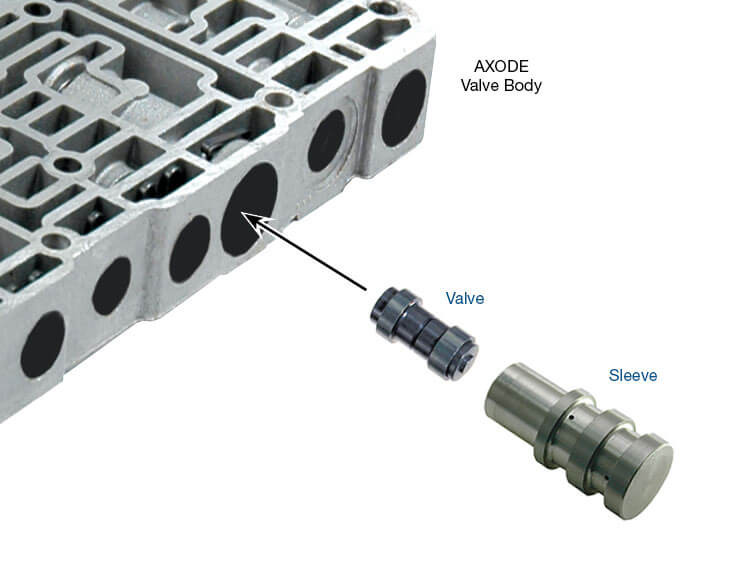

Contents
- Sleeve
- Valve .491"
- O-Rings (2)
Valve Body Layout
Sonnax valve body layouts provide a detailed overview of individual units making it quick and easy to determine what’s available for the specific valve body you’re working on. See all Sonnax valve body layouts.
