Product Description

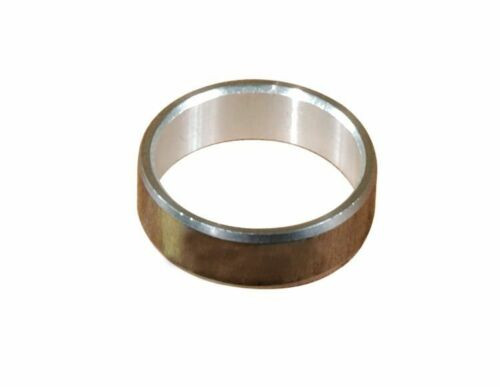

Sonnax part number: 46000-01K
Fits: 4F27E, FNR5, FS5A-EL, FN4A-EL
Fits: 4F27E, FNR5, FS5A-EL, FN4A-EL
Package Quantity: 2
Stator bushings in Ford 4F27E, FNR5 and Mazda FN4A-EL, FS5A-EL units have a tendency to wear out prematurely due to sub-optimal material composition of OE bushing. This wear can lead to bushing failure, high TCC slip rates, overheating and TCC performance codes. Sonnax stator bushing 46000-01K features superior wear characteristics, eliminating premature deterioration for worry-free operation.
- Upgraded material composition outperforms OE bushing
- Includes two bushings which can be used at either location
Specs
- Bushing Style: Precision
- Material: Bimetal
- Housing Bore: 0.867"
- Shaft Dia.: 0.747"
- Width: 0.266"
Symptoms
- High TCC slip RPM (TCCMACT) increases with operating temperature
- Code P0741
- Bushing failure
- Bushing wear
- Overheating
Cause
Worn stator bushings allow TCC apply pressure to exhaust.
Correction
Recover hydraulic control and restore normal TCC operation by installing Sonnax stator bushing.
Product Videos
Custom Field
Transmission Model(s) 4F27E
