48RE Valve Body Conversion Kit

Product Description

TransGo 48RE valve body conversion kit for 2003-08 48RE transmissions. It converts a 46RE or 47RE valve body core into a shift-kitted 48RE, an economical option when 48RE cores are scarce.

Specifications

How it works

The converted valve body has the same functions as a stock 48RE, plus the increased line pressure for holding capacity of the SK 48RE kit. A new limit system helps prevent governor pressure sensor failures, and shifts are short and clean.

Corrects, prevents or reduces TCC slip or shudder, converter drain-back, 2nd band failure and 3rd clutch failure. It increases TCC and clutch element torque capacity and improves TCC engagement feel.

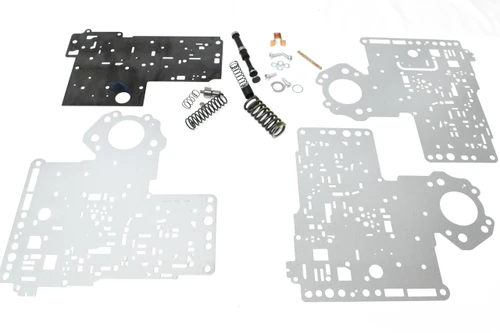

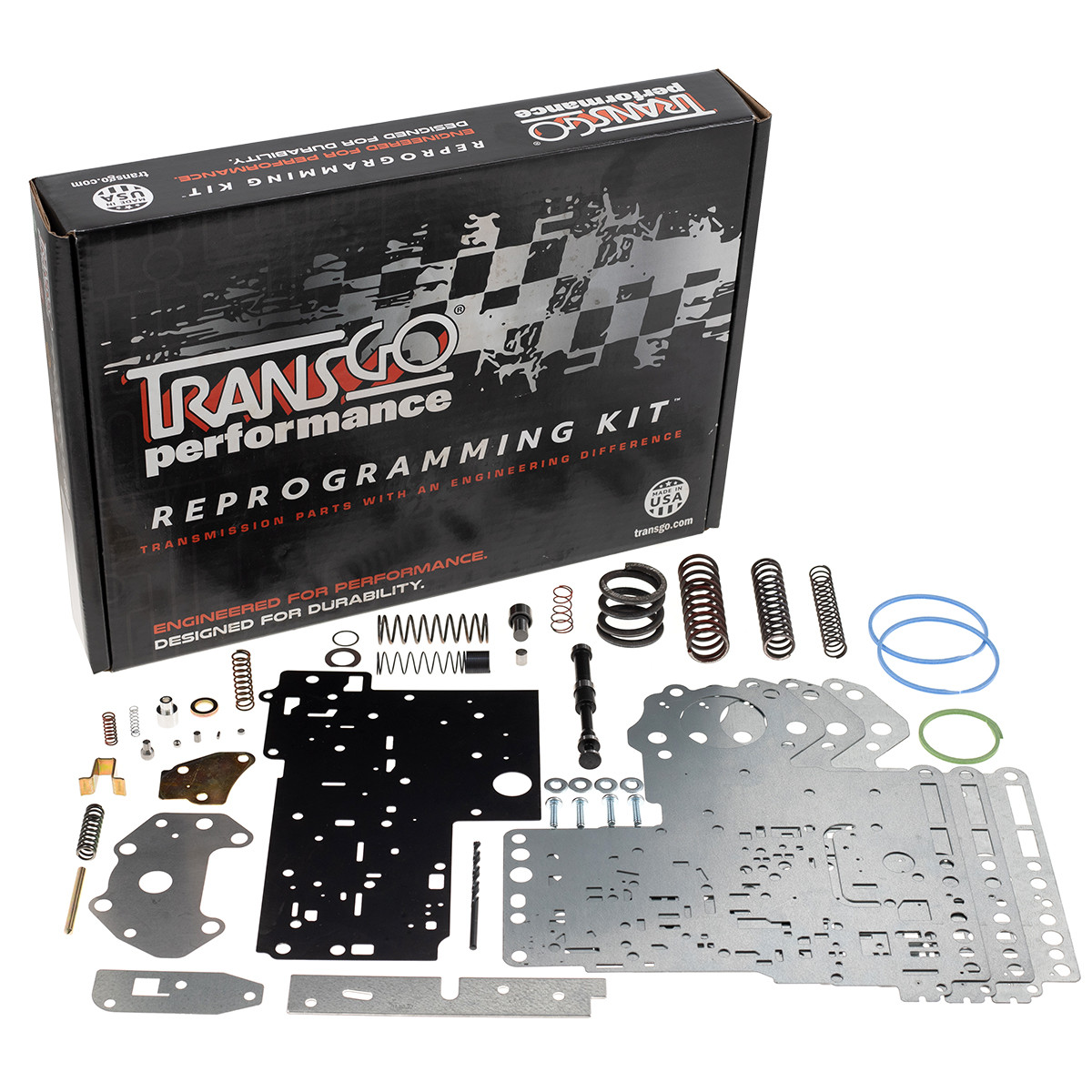

What's included

• PR valve shim, spring seat and inner spring for line-to-converter feed, plus outer spring for increased pressure
• USA-made hardened steel manual valve with converter charge in park provision and cherry bomb
• Drop-in USA-made hardened TV valve, boost plug and tapered spring
• Patent-pending triple valve body separator plates
• Lower valve body separator plate
• Transfer plate, tapered plug, spring, checkball and limit bushing
• Solenoid body plate
• Part throttle body transfer plate, pin and detent limit valve spring
• Part throttle valve spacer (for units with TTVA motor and modified computer programming)
• Boost valve bracket and optional tuning plate
• Throttle valve spring (for optional later upshifts)
• Lower 1-2 accumulator spring
• (3) 3-4 accumulator springs and plug for accumulator housing
• 3-4 quick fill valve spring
• (3) High-temp low shrink sealing rings
• Mumbly peg (for easy detent spring and ball installation)
• (4) Longer stiffener plate bolts and washers
• Drill bit
