Product Description
48RE Extreme Duty Output Shaft Kit
FOR USE IN 2003 TO 2006 4WD MODELS ONLY WITH NV271 OR NV273 TRANSFER CASES. NOT FOR USE IN 2WD OR EARLIER 47RE APPLICATIONS WITH NV241 TRANSFER CASE. REQURIES TRANSFER CASE DISASSEMBLY.
Sonnax Part Number: 22173D-01K
Delivering ultimate protection against Chrysler 48RE shaft breakage, Sonnax extreme duty output shaft kit 22173D-01K features a unique combination of innovative engineering and quality manufacturing. Stronger materials typically used for improving weak parts can’t overcome the OE shaft’s small, 23-spline cross-section. The Sonnax shaft features a significantly larger, 29-spline configuration that is based on the OE manual transmission spline. At 1.480" dia., this high-strength alloy shaft delivers 50% more strength than OE-size, aftermarket shafts.
For applications where replacing the transfer case input shaft is not an option, see Sonnax heavy duty output shaft 22173D-HD.
- Larger, 29-spline diameter allows for increased cross-section to protect against breakage
- High-strength alloy balances the toughness required for shaft strength with the deep case hardness required for the one-way clutch race that is an integral part of the shaft
- The included New Venture 271/273 input gear is ready for install — no machining required

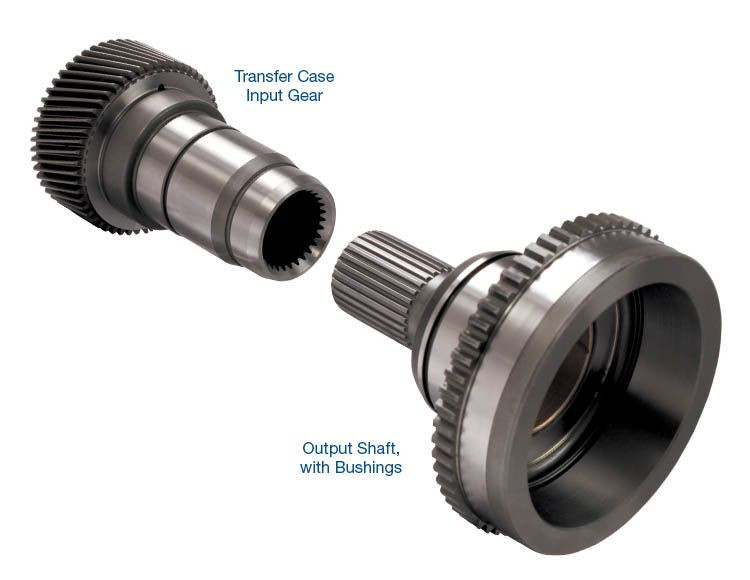

PACKAGE CONTAINS
- Transfer Case Input Gear
- Output Shaft with Bushings
