09G 09K 09M 6F21WA TF60SN TF80SC TF81SC Oversized Two-Spool Relay/Signal Valve Kit

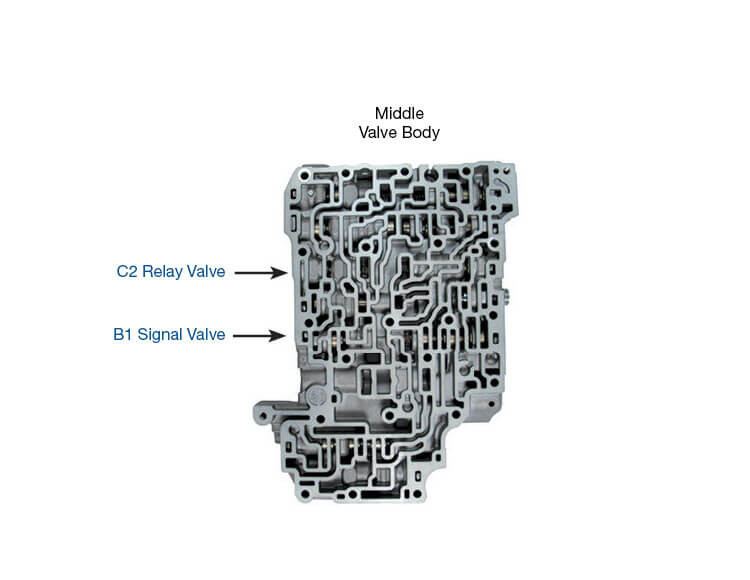

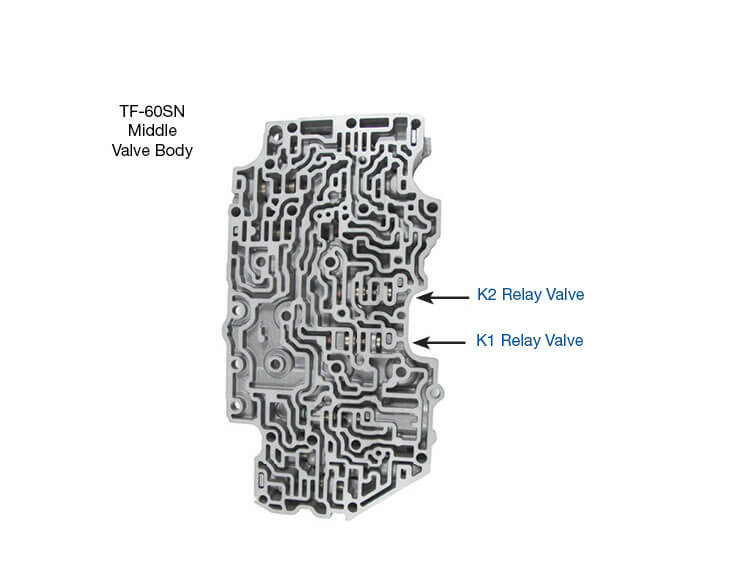

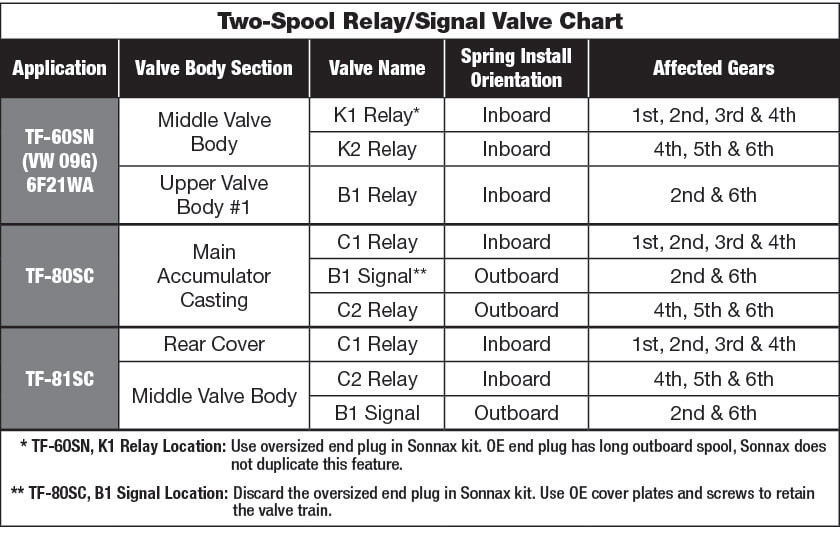

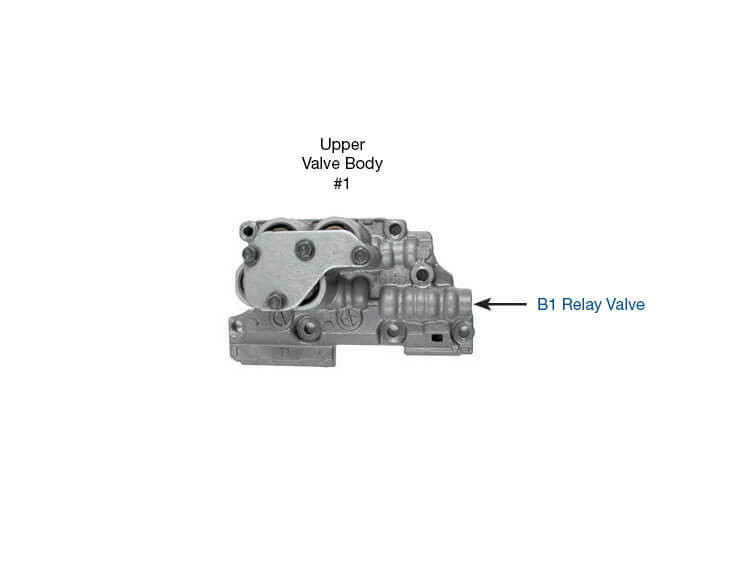

THIS KIT CAN BE USED IN ANY OF NINE LOCATIONS IN FIVE DIFFERENT VALVE BODY APPLICAITONS
The listed Aisin AW 6-speed transmissions each utilize two-spool valves as relay or signal valves. These valves are found in multiple circuits in all valve bodies across the AW6 family and are used to route critical clutch/brake feed and apply oil to the appropriate apply components. Various shift concerns can accompany ratio or solenoid codes when bore wear becomes a problem in this circuit. The oversized two-spool relay/signal valve kit 15741-49K restores proper clutch/brake feed and apply pressure to the related components by functioning in a refurbished bore that provides correct hydraulic clearances.
- Fits any of nine locations in several Aisin AW 6-speed applications
- Hardcoat anodized aluminum valve combats premature wear
- Annular grooves improve lubrication and valve centering
Symptoms
- Gear ratio & solenoid codes
- Various shift concerns
- No shift
Cause
Bore wear prevents proper valve stroke and reduces critical clutch/brake feed/apply oil flow through the various relay/signal valves.
Correction
Restore proper clutch/brake feed and apply control by reconditioning the bore and installing Sonnax oversized two-spool relay/signal valve kit.
Contents
- Valve
- End Plug
