Product Description
Dodge/Chrysler/Jeep A518 A618 46RE|RH 47RE|RH Transmission Front Clutch PowerPack
Made in the USA by Alto Products Corp
1990-2002
Performance Upgrade for Stock, Heavy Duty and Race Applications
Alto Part Number: 028755

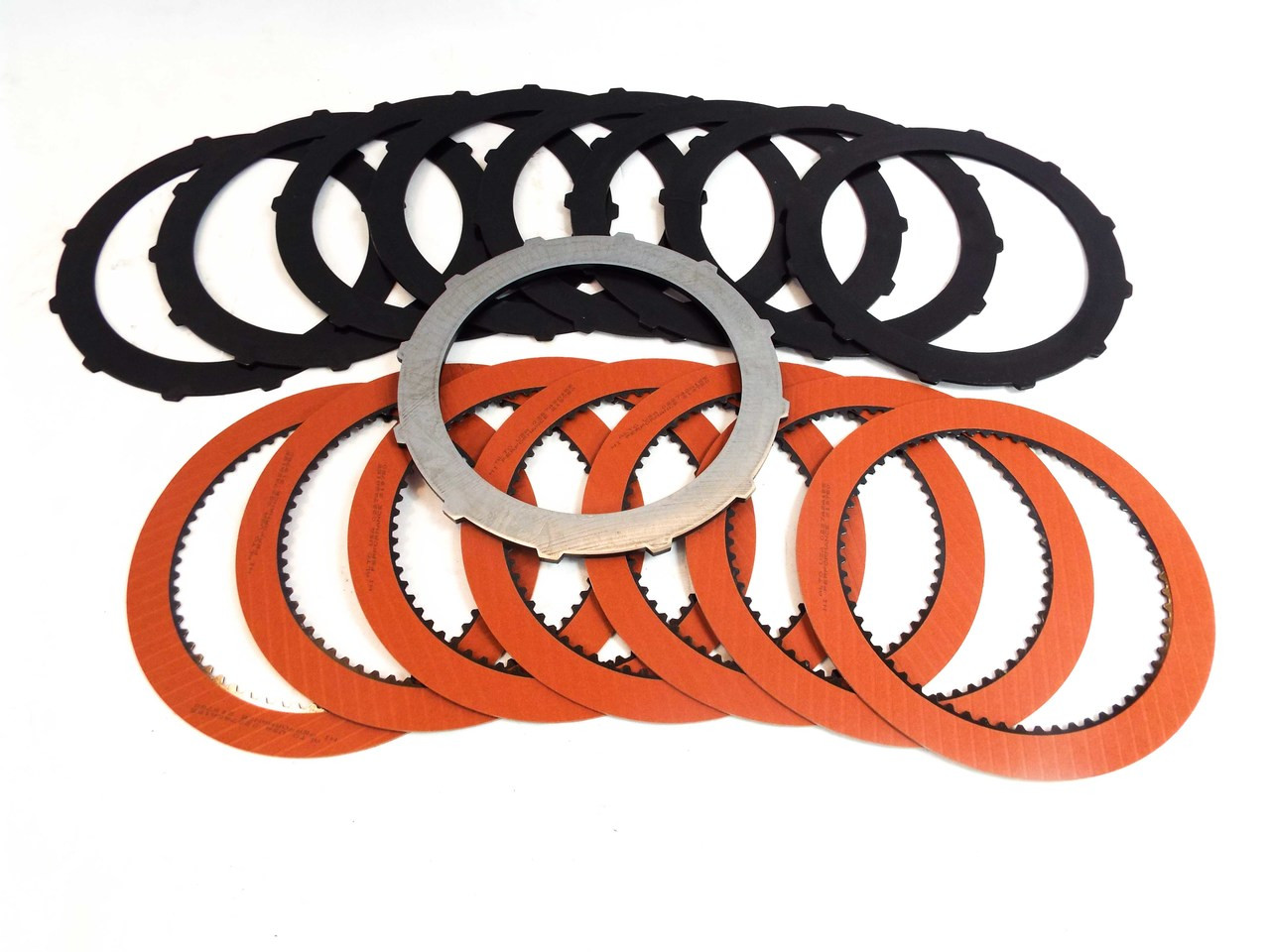

This PowerPack Contains
- (7) 028742A155 (.061” / 1.55mm) Red Eagle® Friction Plates
- (6) 028701K (.068” / 1.72mm) Kolene® Steel Plates
- (2) 028701K216 (.085” / 2.15mm) Kolene® Steel Plates
- (1) 028761X (.170/4.32mm) Pressure Plate
Installation Insturctions
The stack-up of the front clutch is the same as the OE with the exception of adding additional plates. Then use the combination of 0.068'' steel plates and 0.085'' steel plates to achieve the correct clutch pack clearance. You will be capable of stacking 5 or 6 frictions and 5 or 6 steels in the A518 transmission models, and 6 or 7 friction and steels in the A618 transmissions. If you use the pressure plate supplied in this kit, you can change to the higher number of plates, if you use the OE pressure plate you can install the lower number of plates.
After assembly of drum, apply the clutch pack several times with air to seat all components. Check clutch pack clearance using a feeler gauge. Insert feeler gauge between wave snap ring and pressure plate. Clearance should be 0.070'' to 0.129'' (1.78mm to 3.28). If clearance is incorrect, clutch plates, snap ring, or pressure plate may have to be changed.
