Product Description
U140E U140F U240E U241E Solenoid Modulator Valve Kit
Sonnax Part Number: 57917E-13K
TOOLING REQUIRED
- F-57917E-TL13
- VB-FIX

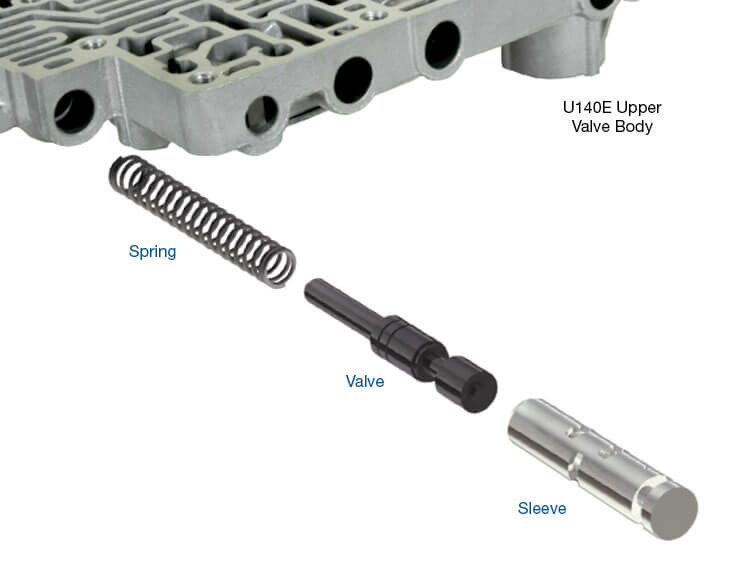

In Toyota/Lexus U140E, U140F, U240E and U241E units, the steel OE solenoid modulator valve is prone to side-loading in the bore. This side-loading action, combined with repeated oscillation of the valve, prematurely wears the cast aluminum bore causing shift and TCC concerns. Sonnax solenoid modulator valve kit 57917E-13K restores normal solenoid supply pressures.
- High-grade aluminum sleeve resists wear and provides porting to prevent valve side-loading
- Hardcoat anodized aluminum valve combats premature wear, incorporates annular grooves to prevent side-loading
- Replacement spring resets regulated pressure to OE specification

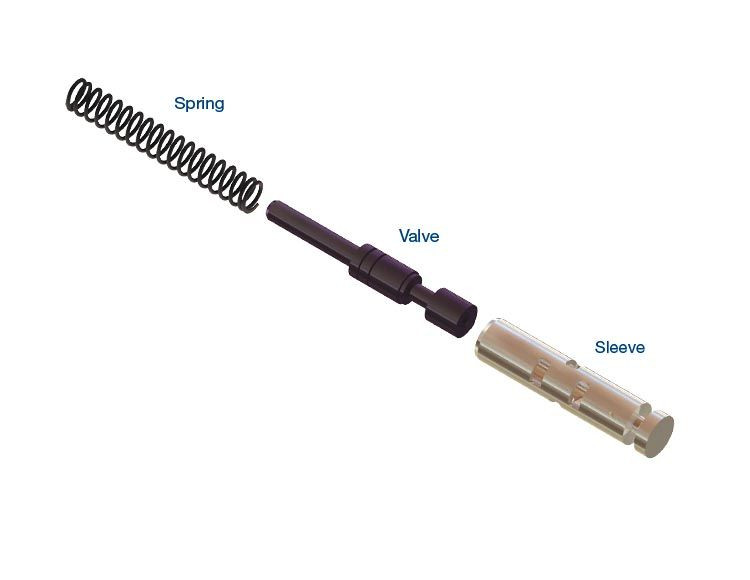

PACKAGE CONTAINS
- Valve
- Sleeve
- Spring
SYMPTOMS
- Slips & flares
- Harsh upshifts
- Bind-up
- Harsh Reverse
- TCC cycling
- TCC slip
- Excess Reverse pressure & distorted housings
- Low cooler flow
- Overheating
CAUSE
Excessive solenoid pressure is caused by line pressure side-loading the steel solenoid modulator valve and the continuous oscillation of the valve, which wears the cast aluminum bore.
CORRECTION
Sonnax solenoid modulator valve and high-grade aluminum sleeve allows the bore to be refurbished, and prevents side-loading of the valve and future wear.
Product Videos
Custom Field
Requires Tooling? Yes
