Pump Parts

700R4 4L60E Stator Shaft (1985-2005) 245mm or 298mm 6.75" Short Stator

This is a high quality NEW aftermarket replacement stator shaft for GM 700R4 and 4L60E automatic transmissions manufactured from 1985 to 2005.  This will not work with 300mm found in 1998 model and later 4L60E.   298mm 27-Spline

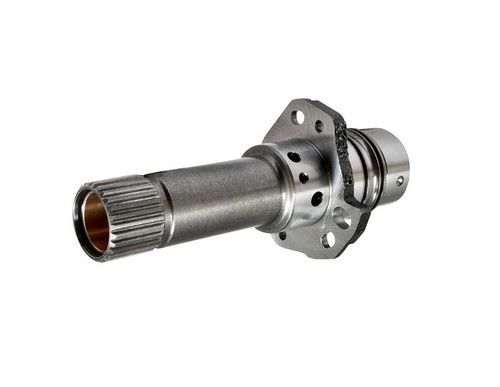

4L60E 4L65E Stator Shaft (1998-2005) 300mm 7.25" Long Stator

4L60E/4L65E 4L70E Stator Support Shaft Assembly 1998-2005 7.25" Long No ISS Hole 30 Spline

4L60E 4L65E 4L70E Stator Shaft (2006-UP) w/ ISS Hole 245mm and 298MM 6.830" Short Stator

Pump Stator Shaft, 4L60E/65E/70E, 245/298MM Converter Type, 6.830" Long, Reluctor Style, 2006-UP(With ISS)

4L60E 4L65E 4L70E Stator Shaft (2006-UP) w/ ISS Hole 300mm 7.25" Long Stator

Stator Support Shaft; 280/300MM Converter Type, 7.300" Long, Reluctor Style

4L60E 4L65E 4L70E ISS Hole Plug with Bolt (2006-UP) 24234175

This is a new AC Delco ISS hole plug for 2006 and up 4L60E/4L65E transmission pump with the ISS design but do not use the ISS. In this listing the bolt for the ISS plug is also included.

700R4 200-4R Elevated Pressure Main Pressure Regulator Spring | Sonnax

LOW LINE PRESSURE RESULTING FROM WORN BOOST VALVES, A WORN PUMP BORE AT THE PRESSURE REGULATOR VALVE OR PUMP OCKET WEAR WILL NOT BE CORRECTED BY THIS SPRING SONNAX PART NUMBER: 77917-08 Low spring rates, incorrect spring heights and inappropriate...

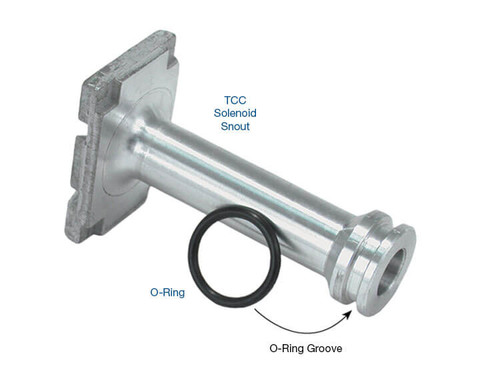

700R4 4L60E TCC Solenoid Snout Kit | Sonnax

The plastic OE torque converter clutch solenoid snouts are prone to breakage causing them to leak oil that should be directed to the converter clutch apply valve. Until now, your only option was to replace the entire OE harness or purchase an...

2004R 700R4 TV Boost Valve Kit | Sonnax | .471'' Bore Dia - Factory Style

200-4R 700R4 TV Boost Valve Kit 0.471'' Bore Diameter | Factory-Style Sleeve Sonnax Part Number: 77917-500 NO TOOLING REQUIRED A common problem in GM 200-4R and 4L60 transmissions is burned bands and/or 3-4 clutches. This failure can be reduced by...

2004R 700R4 TV Boost Valve Kit | Sonnax | .500'' Bore Dia - Factory Style

200-4R 700R4 TV Boost Valve Kit 0.500'' Bore Diameter | Factory-Style Sleeve Sonnax Part Number: 77917-500 NO TOOLING REQUIRED A common problem in GM 200-4R and 4L60 transmissions is burned bands and/or 3-4 clutches. This failure can be reduced by...

2004R 700R4 TV Boost Valve Kit | Sonnax | .500'' Bore Dia - O-Ring Style

200-4R 700R4 TV Boost Valve Kit 0.500'' Bore Diameter | O-Ring Style Sonnax Part Number: 77917-500 NO TOOLING REQUIRED A common problem in GM 200-4R and 4L60 transmissions is burned bands and/or 3-4 clutches. This failure can be reduced by eliminating...

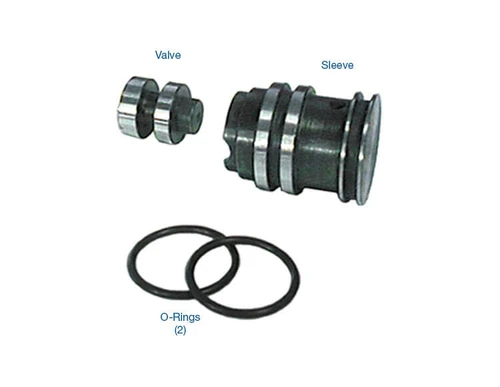

2004R 700R4 TV Boost Valve Kit | Sonnax | .471'' Bore Dia - O-Ring Style

200-4R 700R4 TV Boost Valve Kit 0.471'' Bore Diameter | O-Ring Style Sonnax Part Number: 77917-471 NO TOOLING REQUIRED A common problem in GM 200-4R and 4L60 transmissions is burned bands and/or 3-4 clutches. This failure can be reduced by eliminating...

4L60-E 4L65-E 4L70-E Stator Support Shaft Assembly (208/300mm, Reluctor Style, 04-Up) - Sonnax

4L60-E, 4L65-E, 4L70-E Stator Support Shaft AssemblyPart No. 77918S-09K280mm or 300mm Converter, reluctor style, '04-later. View Instructions Find a DistributorSonnax stator support shaft assembly 77918S-09K in GM 4L60-E, 4L65-E and 4L70-E transmissions...

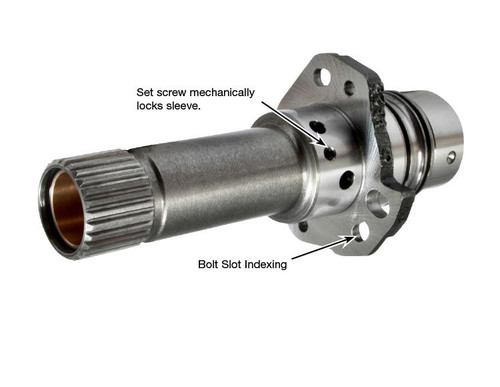

4L60-E 4L65-E 4L70-E Stator Support Shaft Assembly (280/300mm, 99-04) - Sonnax

4L60-E, 4L65-E, 4L70-E Stator Support Shaft AssemblyPart No. 77918S-1K280mm or 300mm Converter, non-reluctor style. '99-'04.Sonnax stator support shaft assembly 77918S-1K for GM 4L60-E, 4L65-E and 4L70-E transmissions eliminates sleeve rotation by...

4L60-E 4L65-E 4L70-E Stator Support Shaft Assembly (298mm, Reluctor Style) - Sonnax

4L60-E, 4L65-E, 4L70-E Stator Support Shaft AssemblyPart No. 77918S-08K298mm Converter, reluctor styleSonnax stator support shaft assembly 77918S-08K for GM 4L60-E, 4L65-E and 4L70-E transmissions eliminates sleeve rotation by securing the sleeve in...

700R4 4L600E Pump Stator Support Shaft Kit | Sonnax | 245/298mm Converter Non-Reluctor

245MM OR 298MM CONVERTER, NON-RELUCTOR STYLE, UNIVERSAL BOLT PATTERN SONNAX PART NUMBER: 77918S-K Sonnax stator support shaft 77918S-K kit for GM 4L60 and 4L60-E units eliminates sleeve rotation by mechanically fastening the sleeve in place with...

200-4R 4L60 Reverse Boost Valve Kit - Sonnax

200-4R, 4L60 Reverse Boost Valve KitPart No. K77898A Large Ratio, Factory Style, No O-Rings You need this if... Vehicles with GM 200-4R and 4L60 transmissions often have complaints of poor Reverse boost or upshifts in manual low. This complaint is...

700R4 4L60E Pump Body Bushing Driver

SKU# T700-309PUMP BUSHING DRIVER, GM Fits: 200, 200C, 200-4R, 325-4L, 700-R4, 4L60 & 4L60E NOTE: #T700-310 Sold Separately

4L60E (1996-2003) TCC Pump Orifice Capsule

SKU# 77831TCC PUMP ORIFICE CAPSULE, 4L60E ('96-'03) Prevents Lock-Up failure.

4L60E 4L65E Sonnax Boost Valve Kit | Late O-Ring Style | .472''

Late style, .472" dia., OE ratio, O-ring style GM 4L60-E, 4L65-E and 4L70-E transmissions frequently have poor line rise, which can result in 3-4 clutch, 2-4 band failure or poor shift quality. The duty cycle of the EPC solenoid causes the boost sleeve...

4L60E 4L65E Sonnax Boost Valve Kit | Late O-Ring Style | .421''

Late style, .421" dia. OE ratio, O-ring style GM 4L60-E, 4L65-E and 4L70-E transmissions frequently have poor line rise, which can result in 3-4 clutch, 2-4 band failure or poor shift quality. The duty cycle of the EPC solenoid causes the boost sleeve to...
