GM TH350 700R4 4L60E Center Support Case Saver Assembly (1969-UP)

Product Description

TH350/TH350C - TH250/TH250C - 700R4/4L60 - 4L60E/4L65E

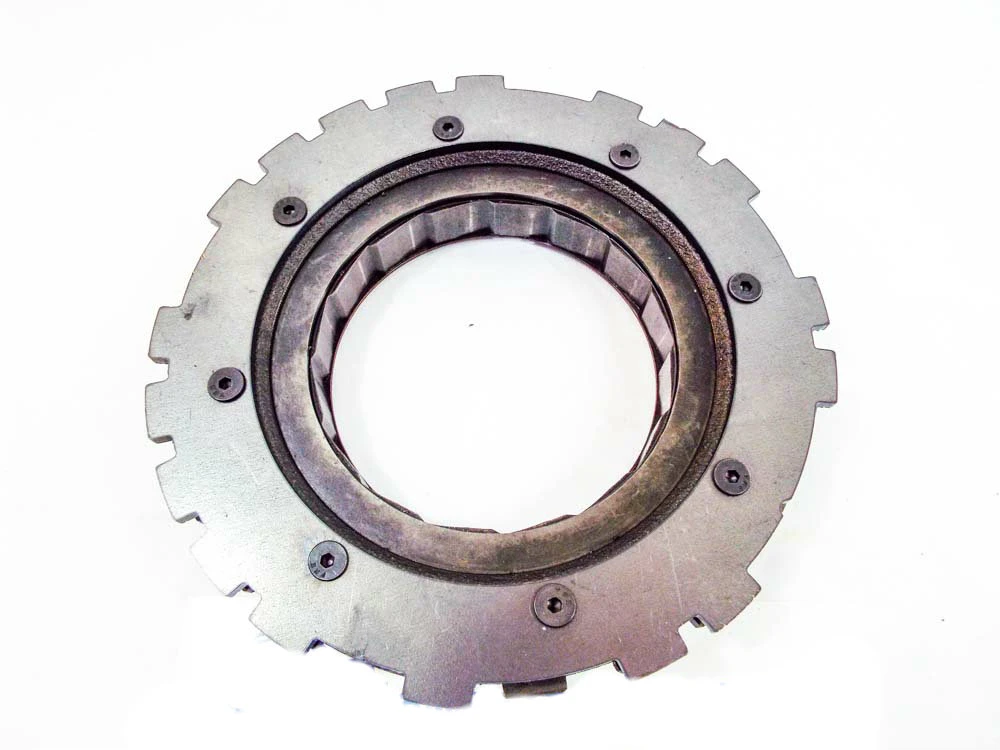

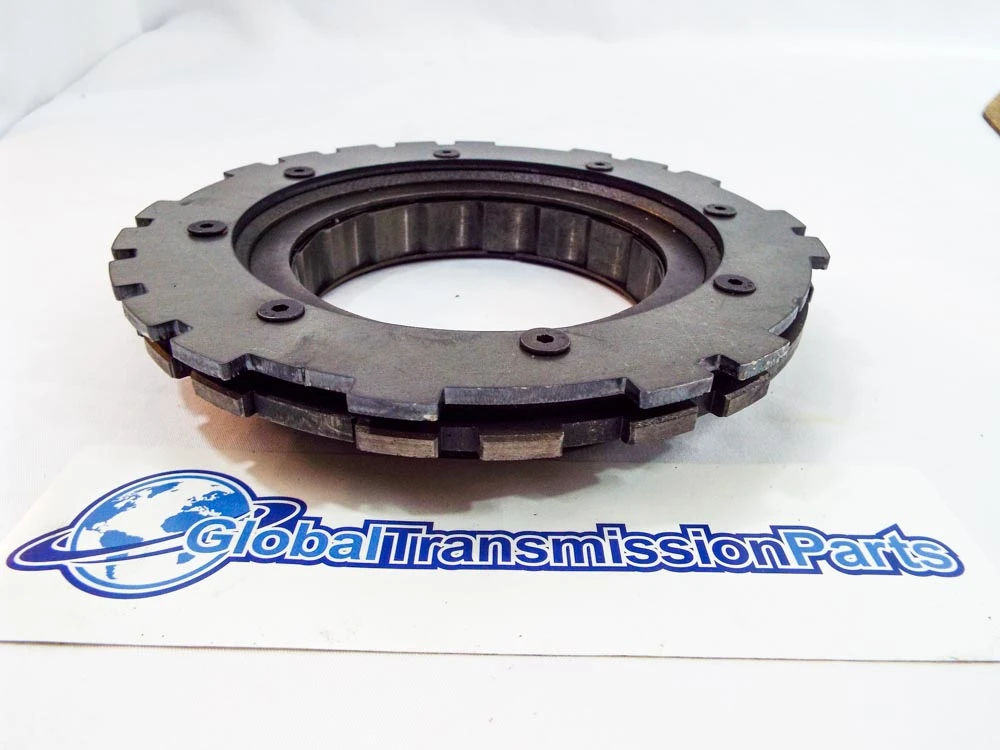

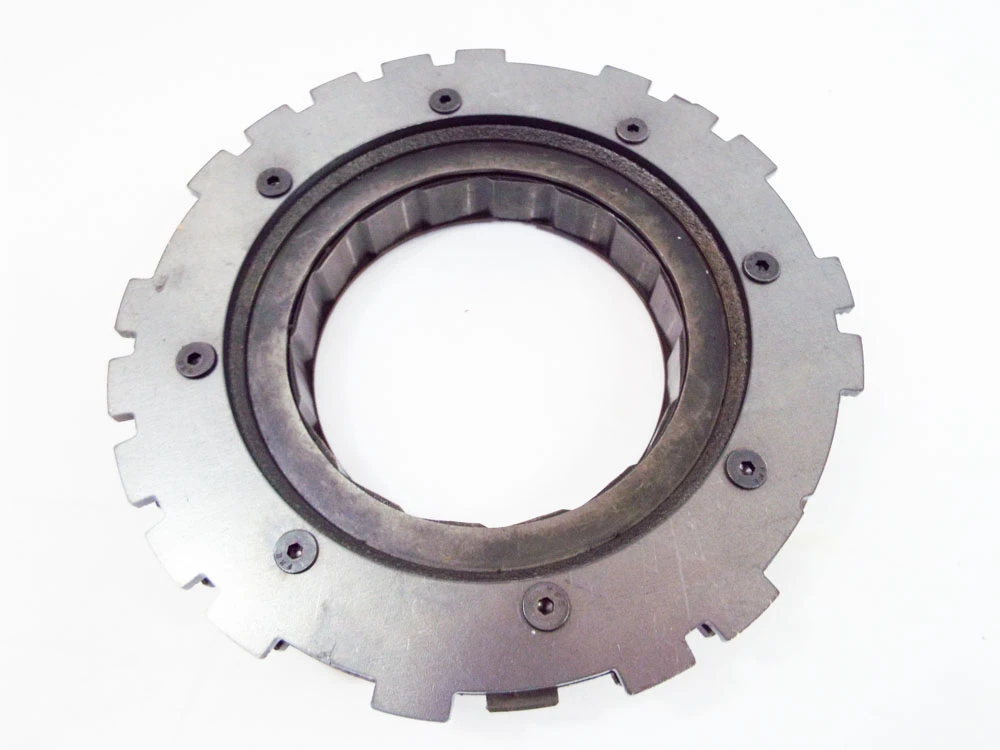

Center Support Case Saver Kit

This solution by Adapt-A-Case reinforces center support and is laser cut from high tensile steel for strength and accurate fit.  Just replace your old damaged center support outer race with this update and your case is now fixed.  No need to purchase a new case!

Kit Includes

• Inspected and refurbished center support outer sprag race ready for updated wide sprag.
• New laser cut updated lug support and bolts
• New 0.030'' spacer shim

DOES NOT INCLUDE WIDE SPRAG INNER RACE.  WILL NOT WORK WITH NARROW SPRAG MODELS

Installation

Complete reassembly up to the low reverse friction pack.  Discard the anti-rattle spring to the scrap bin.  Then remove the Allen-Head screws from your Center Support Case Saver, which will remove the reinforced plate.  Install the center support.  Install the snap ring and new plate.  Line up the holes then install the Allen-Head screws with blue Loctite to max 12-ft/lbs.

Please Note: For installing the heavy duty center support on 4L60E/700R4, you need a 0.030 shim under the output rear ring gear.  Also, if you choose to install the anti rattle spring, grind approximately 1/16'' off the lug on the reinforced plate where it contacts the anti-rattle spring.
