Valve Body Parts

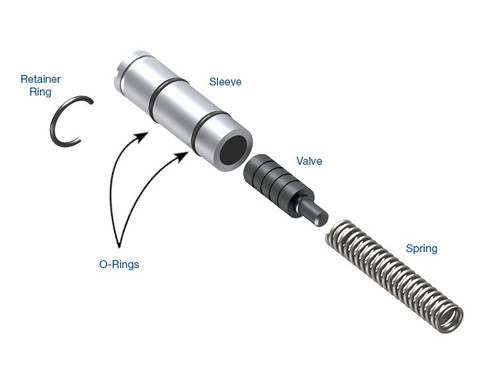

722.6 TCC Damper Valve Kit | Sonnax

722.6 TCC Damper Valve Kit  Late Style Units Only! Early-style units do not have TCC damper valve Sonnax Part Number: 68942-23K NO TOOLING REQUIRED Late-style Mercedes 722.6 valve bodies added a TCC damper valve at a previously vacant bore in the...

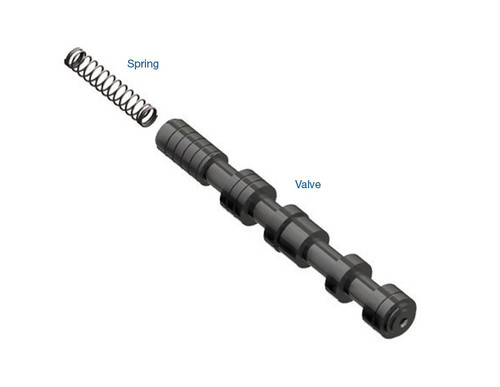

722.6 Oversized TCC Lockup Clutch Regulator Valve Kit | Sonnax

722.6 Oversized TC Lockup Clutch Regulator Valve Kit Sonnax Part Number: 68942-10K TOOLING REQUIRED F-68942-TL10 VB-FIX In Mercedes 722.6, excessive clearance at the outboard spool fed by the PWM solenoid allows modulating lube to exhaust. The...

722.6 Oversized Regulating Valve Pressure Control Valve Kit | Sonnax

722.6 Oversized Regulating Valve Pressure Control Valve Kit Sonnax Part Number: 68942-17K TOOLING REQUIRED F-68942-TL14 VB-FIX In Mercedes 722.6 units, severe wear of the regulating valve pressure control valve bore results in shift quality and...

722.6 Oversized Pressure Regulator Valve Kit | Sonnax

722.6 Oversized Pressure Regulator Valve Kit FITS BORES CONTAINING OE PR VALVE WITH 0.512'' DIAMETER SPOOL ONLY Sonnax Part Number: 68942-07K TOOLING REQUIRED F-68942-TL7 VB-FIX In Mercedes 722.6 units, excessive valve-to-bore clearance at the...

722.6 Oversized Lubricating Pressure Control Valve Kit | Sonnax

722.6 Oversized Lubricating Pressure Control Valve Kit Sonnax Part Number: 68942-14K TOOLING REQUIRED F-68942-TL14 VB-FIX In Mercedes 722.6 units, severe wear of the lubricating pressure control valve can create delayed engagements, poor performance,...

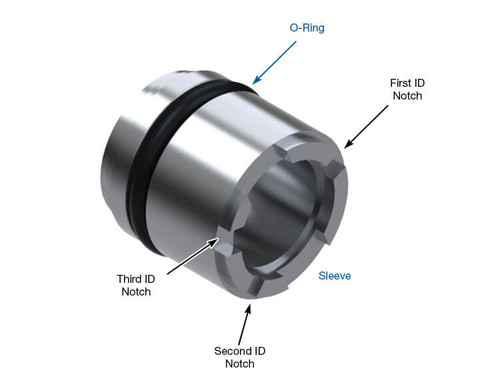

722.6 3-4 Overlap Control Sleeve Kit | Sonnax

722.6 3-4 Overlap Control Sleeve Kit Sonnax Part Number: 68942-04 Continuous plunger valve oscillation causes wear at the overlap control valve sleeves, allowing modulated oil pressure to exhaust or oppose the shift and create numerous shift complaints...

722.6 2-3 Overlap Control Sleeve Kit | Sonnax

722.6 2-3 Overlap Control Sleeve Kit Sonnax Part Number: 68942-03 Continuous plunger valve oscillation causes wear at the overlap control valve sleeves, allowing modulated oil pressure to exhaust or oppose the shift and create numerous shift complaints...

722.6 1-2 4-5 Overlap Control Sleeve Kit | Sonnax

722.6 1-2 4-5 Overlap Control Sleeve Kit Sonnax Part Number: 68942-02 Continuous plunger valve oscillation causes wear at the overlap control valve sleeves, allowing modulated oil pressure to exhaust or oppose the shift and create numerous shift...

722.6 Master Overlap Control Valve Sleeve Kit | Sonnax

722.6 Master Overlap Control Valve Sleeve KitPart No. 68942-05K Continuous plunger valve oscillation causes wear at the overlap control valve sleeves, allowing modulated oil pressure to exhaust or oppose the shift and create numerous shift...
