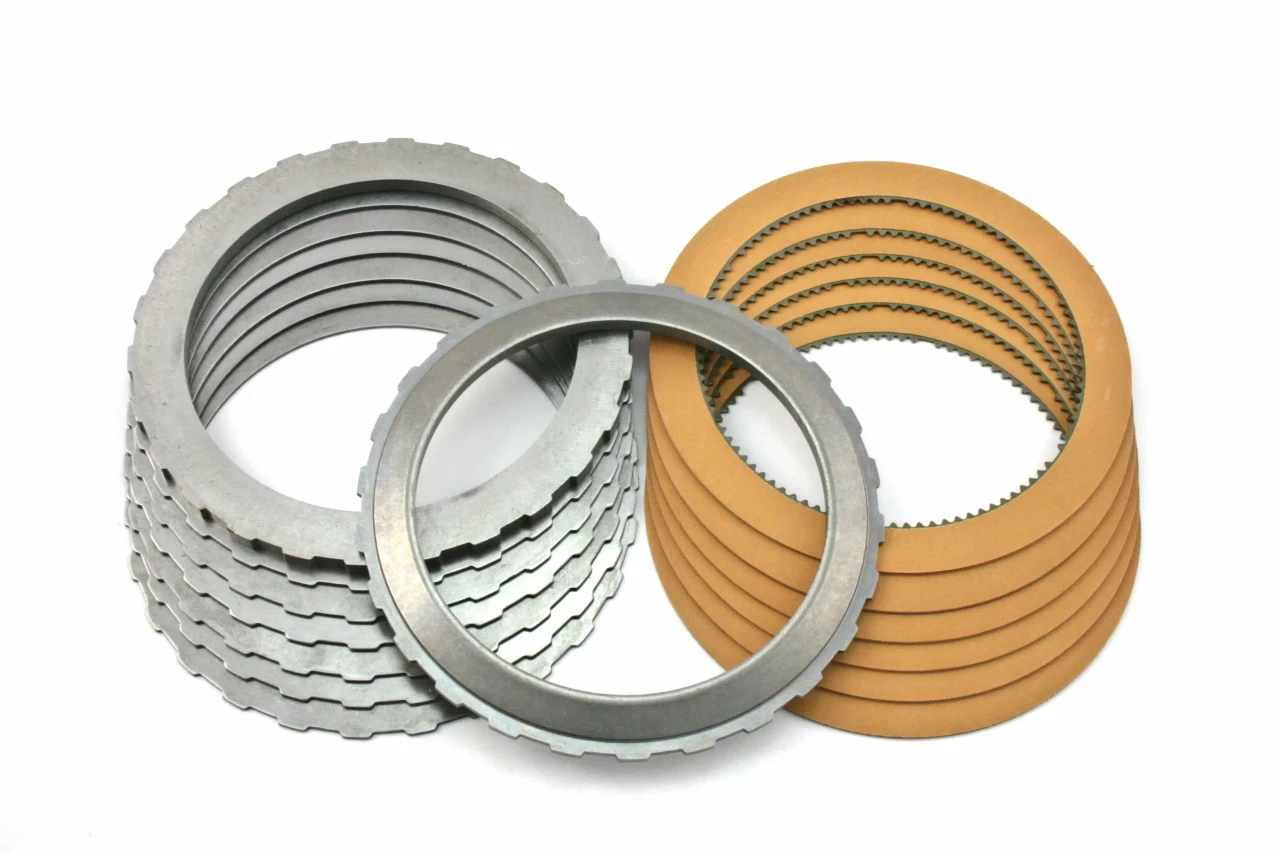

C6 E4OD 4R100 Forward Clutch Powerpack 1966-UP (Tan Frictions with Normal Steels)

Product Description

Ford C6/E4OD/4R100 Transmission Forward Clutch Performance Powerpack

Made in the USA by Alto Products Corp

Contents

• (6) 026710 Friction Plates
• (6) 026701A Steel Plates
• (1) 026760-630 Top Pressure Plate
• (1) 026760A673 Bottom Pressure Plate

Instructions

1. Stack up is the same method as OE. Start with the bottom apply plate dished side down. Install the cushion spring then alternately install the friction and steel plates starting with a steel and ending with a friction plate. Install the top pressure plate and the selective snap ring
2. Apply air to assembled clutch pack several times to seat the friction and steel elements. Using a feeler gauge measure between the bottom of the selective snap ring and the top of the pressure plate. Clearance should be .040” to .075” (1.02 to 1.91mm).
3. Adjust clutch pack clearance by selecting the correct selective snap ring.

The following Selective Snap Rings are available from Alto: 026251-050; 026251-058; 026251-062; 026251-076; 026251-090; 026251-094; 026251-112; 026251-130

PRINTABLE INSTRUCTIONS

ALTO PRODUCTS CORP # 026755A
