Product Description
4R100, E4OD
Cooler Bypass Valve Kit
Part No. 36605-02K
Fits '97-later units with either style outboard fitting.
Sticking of bypass components, spring relaxation or poor ball seat in Ford 4R100 and E4OD units will allow the bypass to open at lower cracking pressure. This reduces TCC apply pressure, cooler flow at the overdrive section, and radiator flow responsible for heat transfer. Sonnax cooler bypass valve kit 36605-02K allows the bypass valve assembly to be rebuilt and maintains cracking pressure at 70-75 psi.
- Hardened steel T-valve provides secure checkball seat and adequate bypass flow
- New spring cracks open at 70-75 psi to provide lube if cooler is blocked or restricted
- Hardened alloy steel checkball resists damage
- Seven new O-rings provide positive seal for cooler circuit
- Allows salvage of the OE fittings

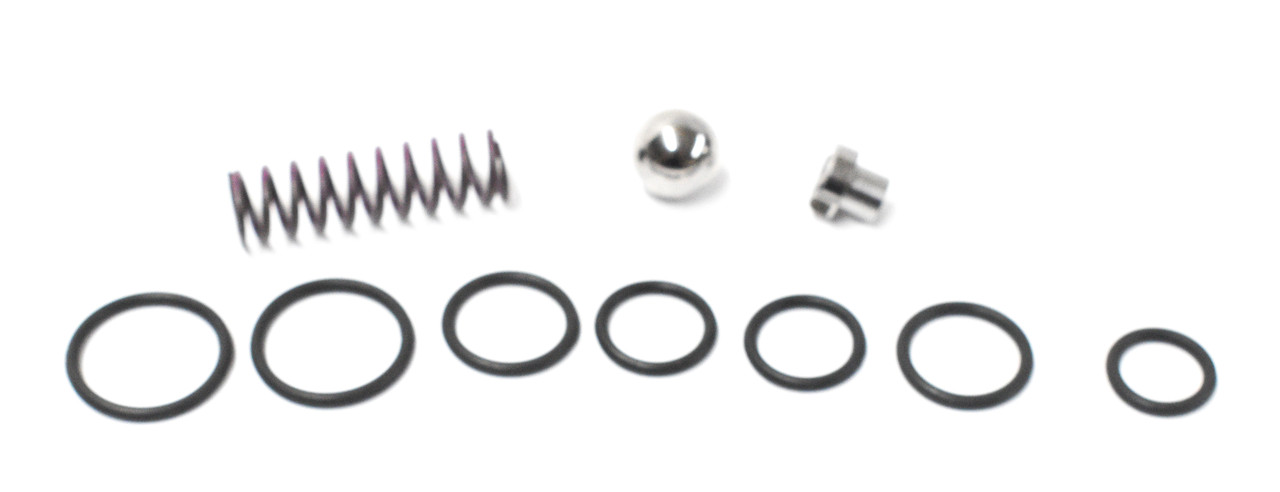

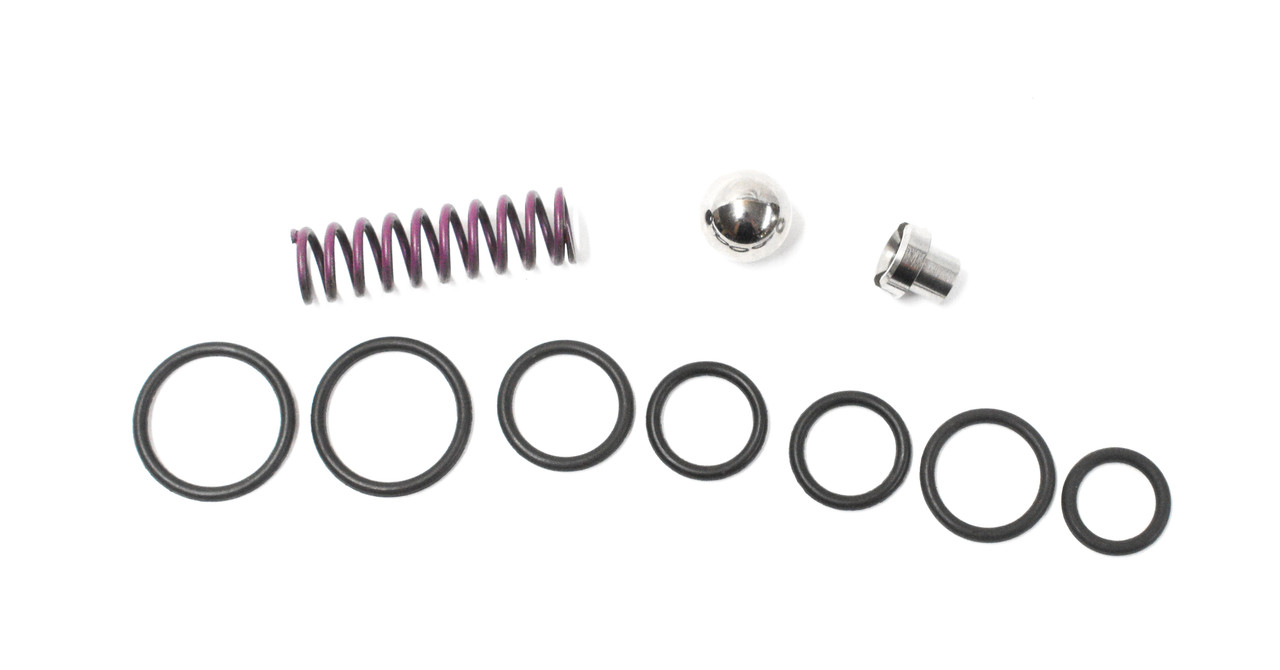

- T-Valve
- Spring
- Checkball
- Small O-Ring
- Medium O-Rings (2)
- Large O-Rings (2)
- Extra Large O-Rings (2) 1 Extra
Symptoms:
- TCC slip
- Soft TCC apply
- Code 1783
- Code 1741, 1744
- Overheating
- Low cooler flow
- Overheated converter
- Overheated OD area
