Product Description
A750E A750F O-Ringed End Plug Kit
Sonnax Part Number: 147741-31K
NO TOOLING REQUIRED
The primary design function of the OE end plug is to prevent critical pressure loss by capping the bore. OE end plugs rely entirely on small clearances between the end plug and bore to confine hydraulic fluid under fluctuating pressure. End plugs are often tasked with a secondary role functioning as a spring stop or valve stop. The repetitious and varying actions of fluid pressure, spring motion and valve impact cause wear at the end plug and bore mating surface, and can distort the shape of the end plug. High pressure fluid that leaks through the clearance gap can, with time, erode the surface material of both end plug and bore. Eventually, the cumulative loss of hydraulic integrity leads to low pressure in critical circuits. Complaints vary depending on the location of the worn end plug, but are always related to pressure losses. Sonnax O-ringed end plug kit 147741-31K replaces worn, distorted or eroded end plugs in Toyota A750E and A750F transmissions. Sonnax end plugs have an O-ring seal that reduces leakage further by blocking off worn areas of the bore which the new end pllug alone could not seal.
- No special tools required
- Minimal end plug-to-bore clearance with added O-ring for positive seal
- Drop-in Zip Valve™ parts install quickly and easily

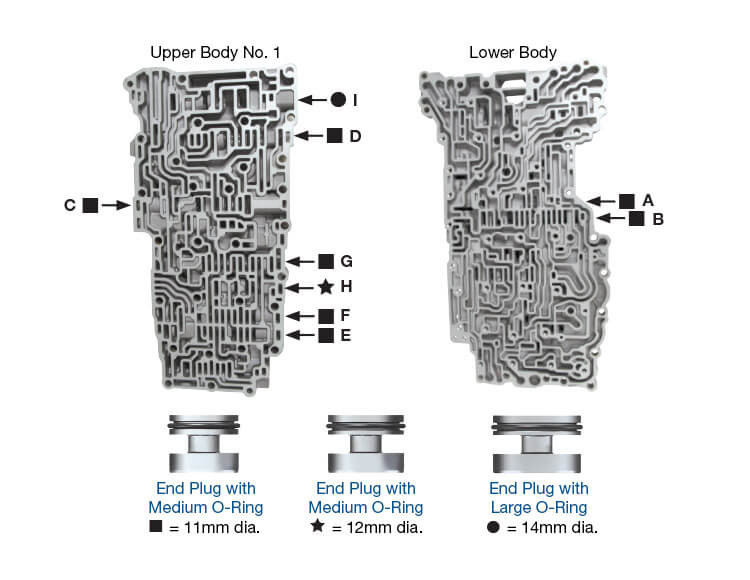

PACKAGE CONTAINS
- End Plugs, 11mm (7)
- End Plug, 12mm
- O-Rings, Medium (14) 6 Extra
- End Plug, 14mm
- O-Rings, Large (2) 1 Extra
- Installation Screw Not Shown
SYMPTOMS
- Various concerns depending on location of leaking end plug
- Pressure loss
CAUSE
CORRECTION
