Product Description

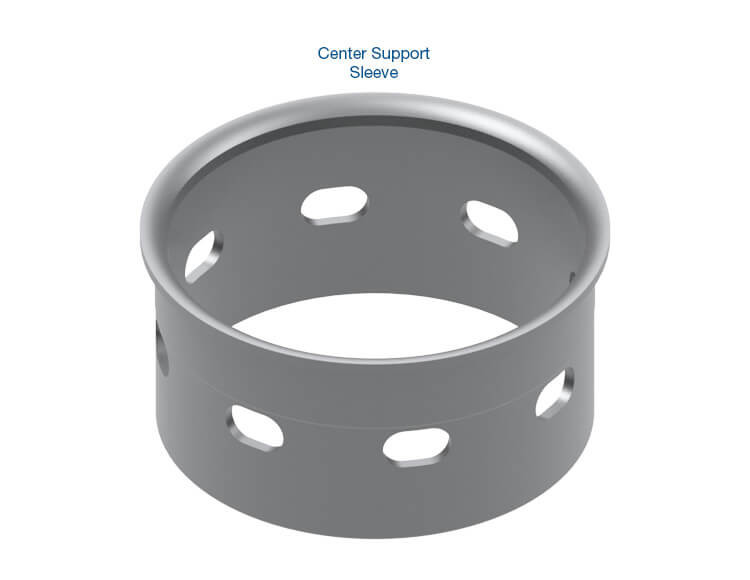

6R60 6R75 6R80 Center Support Sleeve
Sonnax Part Number: 95630-02
In Ford 6R60, 6R75 and 6R80 transmissions, the sleeve in the center of the 2-6 “C” clutch housing is the sealing surface for the 3-5-R or “B” clutch housing sealing rings. These sealing rings are on the lower portion of the drum, and wear grooves into the sleeves and creates leakage and 3-5-R “B” clutch failure.

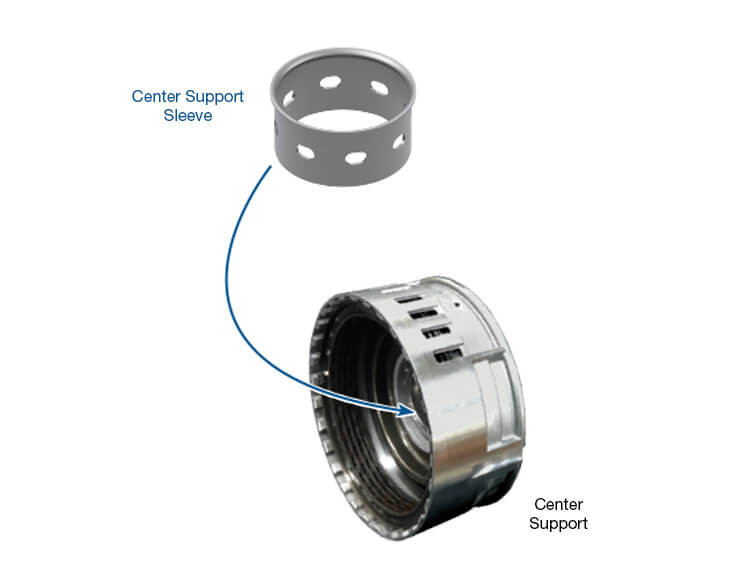

Machining the 2-6 “C” clutch housing bore (center support) and installing the hardened steel Sonnax center support sleeve 95630-02 restores proper hydraulic integrity and prevents future sealing ring wear.
PACKAGE CONTAINS
- Sleeve (1)
SYMPTOMS
- Damaged center support rings
- Burnt clutches
CAUSE
The sealing rings for the 3-5-R “B” clutch housing are on the lower portion of the drum. These sealing rings wear into the sleeve in the 2-6 "C" clutch housing, causing 3-5-R clutch failure.
CORRECTION
Installing the Sonnax hardened steel center support sleeve into the machined 2-6 "C" clutch housing bore (center support) restores proper hydraulic control and prevents future wear caused by the 3-5-R “B” clutch housing sealing rings.
