Product Description
6R100 6R60 6R75 6R80 6HP19 6HP26 6HP32 Oversized Clutch D1/E Control Valve Kit
Sonnax Part Number: 95740-08K
TOOLING REQUIRED
- F-95740-TL8
- VB-FIX
DOES NOT FIT 2ND 3RD 4TH DESIGN 6R80 - FITS EITHER OF TWO LOCATIONS
NOTE: This kit is not compatible with: ZF6HP19/26/32 (Gen.1) units with an 053 separator plate, ZF6HP21/28/34 (Gen.2) units, or 2012-later 6R80 applications that contain an OE "D1" valve with two equal diameter spools. Kit is NOT compatible with ZF6HP21/28/34 (Gen.2) units.
Flare upshifts or downshift bind-ups are common problems in vehicles equipped with ZF6HP19/26/32 (Gen. 1) and Ford 6R60, 6R80, 6R100 transmissions. These problems can be accompanied by a coastdown neutral condition or pressure control out of range codes. The clutch control valve controls clutch apply and release timing, and problems occur when the clutch control valve or bore wears. To fix these issues, Sonnax offers the oversized clutch D1/E control valve kit 95740-08K. Installing this kit will restore shift timing and vehicle drivability.

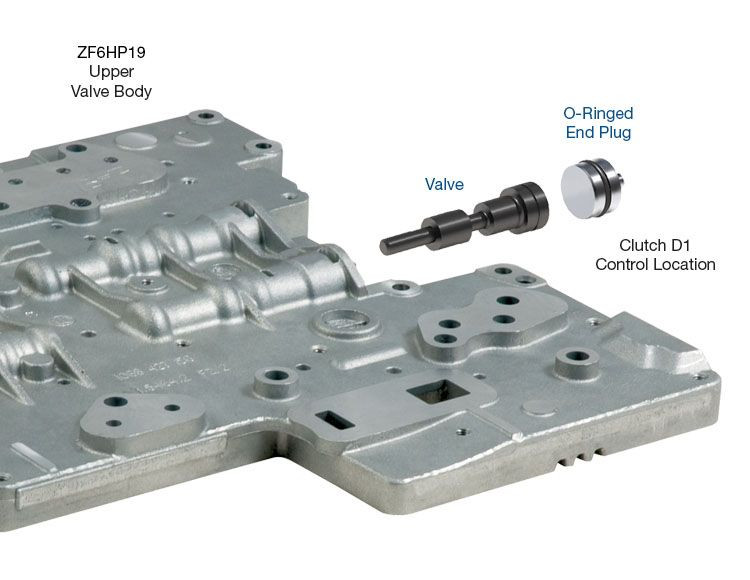

- Can be used in either clutch D1 or clutch E location
- Hardcoat anodized aluminum valves combat premature wear
- Tighter fit to the bore than OE for better sealing
PACKAGE CONTAINS
- Valve
- O-Ring
- End Plug
SYMPTOMS
- Excess clutch overlap & clutch distress
- Pressure control out-of-range codes
- Downshift bind-ups
- 1-2 Bind-up
- 3-2 Harsh
- Coastdown Neutral
- Flare shifts
CAUSE
Bore wear at the D1 or E clutch control valve allows pressure loss that causes driveability concerns.
CORRECTION
Renew clutch action and restore normal shift operation by reconditioning the bore and installing Sonnax oversized D1/E control valve kit.
