Product Description

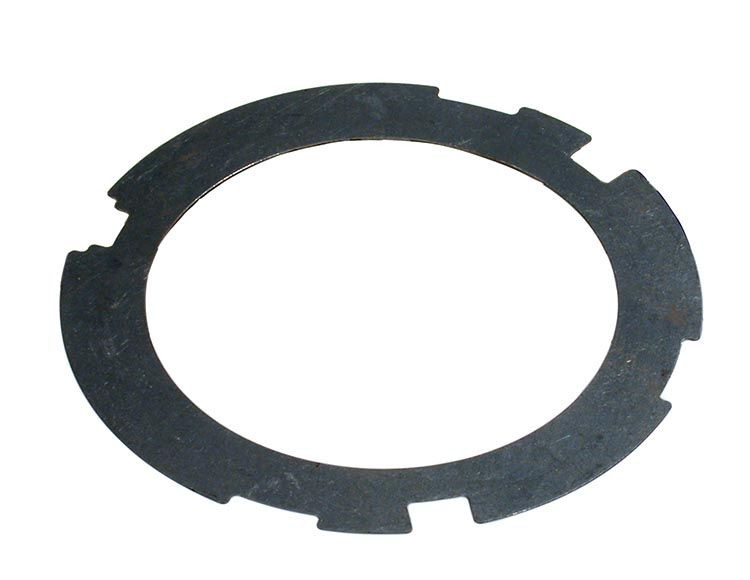

46RE 46RH 47RE 47RH A727 Rear Planet Endplay Shim | Pack of 10
Sonnax Part Number: 22700-Z
FITS EITHER THE 3 OR 4-TANGED OE THRUST WASHER DESIGN
NO TOOLING REQUIRED

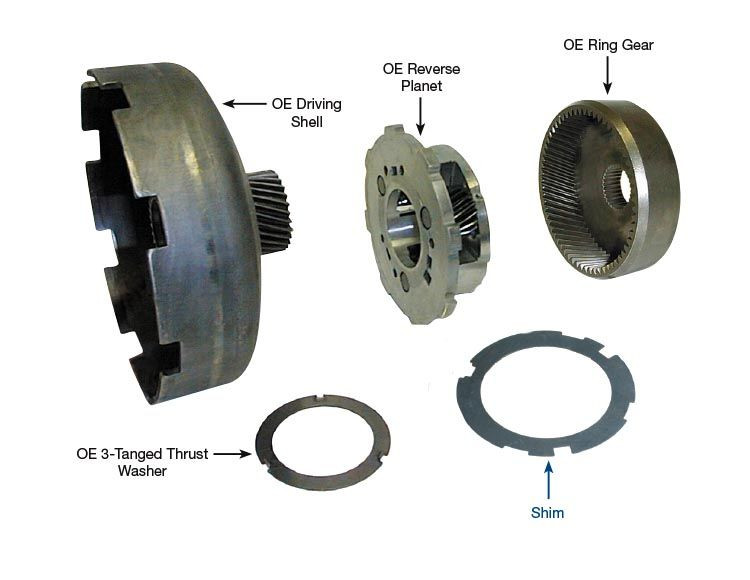

It is often difficult to reduce the total transmission endplay in listed Chrysler transmissions. Excessive total and/or rear unit endplay is often the result of gear, snap ring and/or spline wear. Rear unit endplay can be difficult to reduce with available selective washers. When rear unit endplay is loose, the total unit endplay measurement is excessive also. Sonnax offers .010" rear planet endplay shim 22700-Z, which is installed between the OE thrust washer and the rear planetary. Adding a shim or shims between the OE thrust washer and the rear planetary reduces rear unit endplay, which also reduces total assembled transmission endplay.
PACKAGE CONTAINS
- Shim (10)
SPECIFICATIONS
- Material: Steel
- Outer Notch Count: 6
- Inner Dia.: 2.520"
- Thickness: 0.010"
- Outer Dia.: 3.406"
SYMPTOMS
- Excess total transmission endplay
CAUSE
Endplay due to worn gears, snap rings, and/or splines.
CORRECTION
This shim reduces transmission endplay for 3- or 4-tanged OE washers.
