Product Description

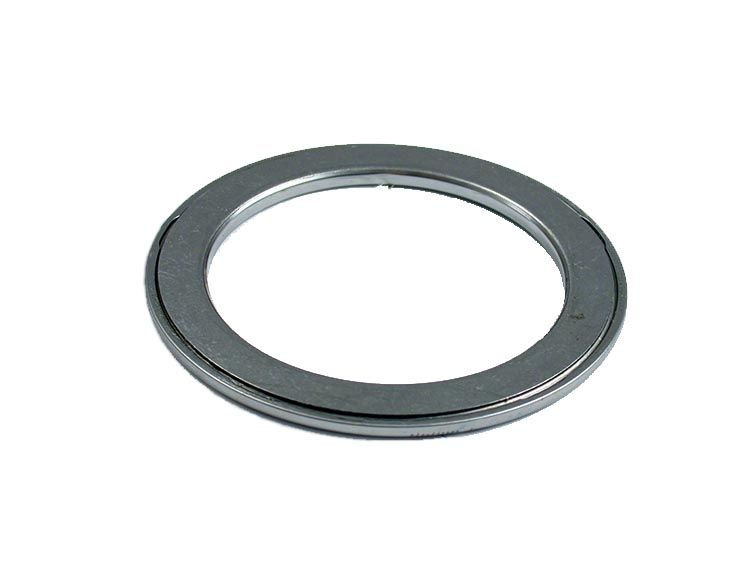

46RE 46RH 47RE 47RH 48RE A727 Case Repair Bearing
Sonnax Part Number: 22556-BRG
In listed Chrysler transmissions, the inner race or hub of the one-way roller clutch may come into contact with and cause wear to the back of the transmission case. This rearward movement of the hub is primarily a result of excessive endplay. To protect the case from further wear and eliminate excessive endplay, install Sonnax case repair bearing 22556-BRG. This repair bearing requires that the case be machined using a milling machine with a rotary table. Late cases will require machining of the reverse drum.
- Salvages hard-to-find expensive cases
- Eliminates excessive endplay
- Prevents further wear
PACKAGE CONTAINS
- Bearing (3)
SYMPTOMS
- Damaged case
- Output & planet assembly wear
- Output & planet assembly failure
CAUSE
The inner race of the one-way roller clutch comes in contact with the case, causing damage.
CORRECTION
Sonnax case repair bearing saves expensive cases and prevents further case damage.
