Product Description

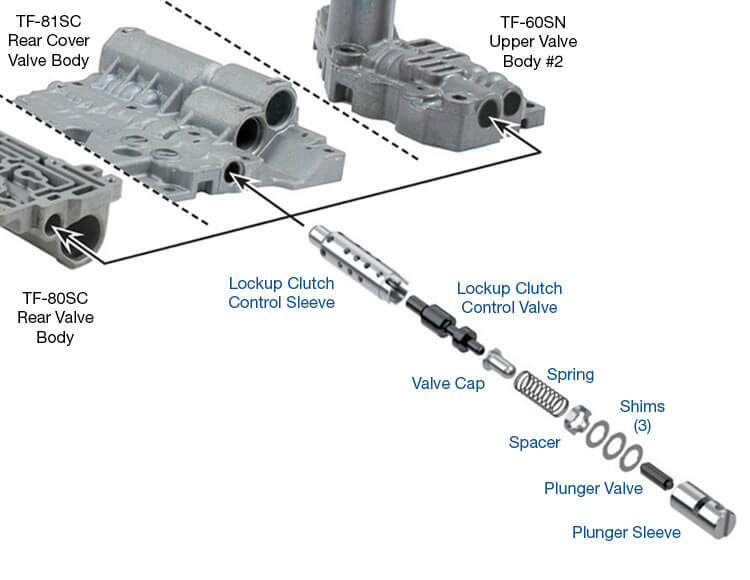

09G 09K 09M TF60SN TF80SC TF81SC Lockup Clutch Control Valve Kit
Also fits Volvo AM6, Opel (AF40), SAAB (AF40/6), Ford (AF21), Mazda (AW6A-EL)
Sonnax Part Number: 15741-29K
TOOLING REQUIRED
- F-15741-TL29
- F-15741-TL29PL
- VB-FIX
Bore wear at the TCC control valve and/or sleeve in listed units results in loss of torque converter clutch control. The TCC can remain applied, transferring shift shock, or can result in RPM fluctuations. Reconditioning the bore and installing Sonnax lockup clutch control valve kit 15741-29K eliminates bore wear for renewed TCC and drivability performance.
- Allows salvage of previously non-repairable worn valve bodies
- Highly wear-resistant aluminum sleeves provide additional valve support and stability
- Hardcoat anodized aluminum valves combat premature wear

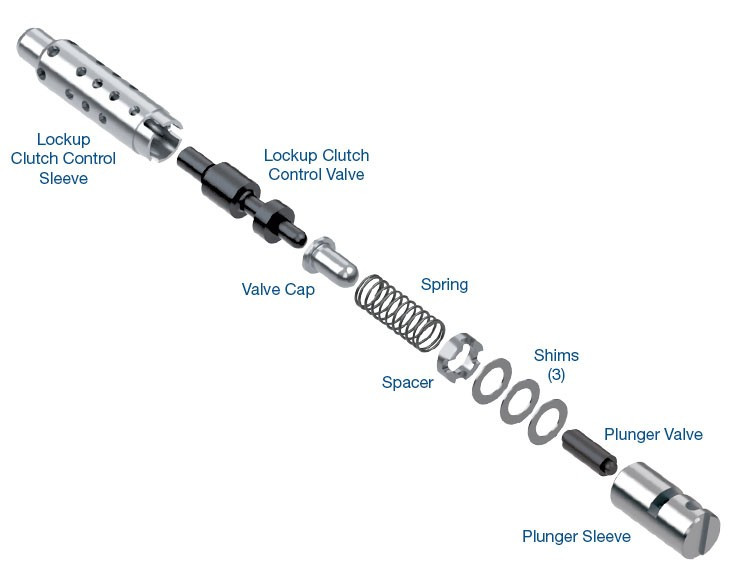

PACKAGE CONTAINS
- Lockup Clutch Control Valve
- Lockup Clutch Control Sleeve
- Valve Cap
- Spring
- Spacer
- Shims (3)
- Plunger Valve
- Plunger Sleeve
SYMPTOMS
- TCC codes
- TCC apply & release concerns
- RPM surge on light acceleration
- Harsh downshifts
- RPM surge on coast
- Overheated fluid
CAUSE
TCC control bore wear allows pressure loss that results in drivability concerns.
CORRECTION
Recover hydraulic control and restore normal operation by reconditioning the bore and installing Sonnax lockup clutch control valve kit.
Product Videos
Custom Field
Requires Tooling? No
