Product Description

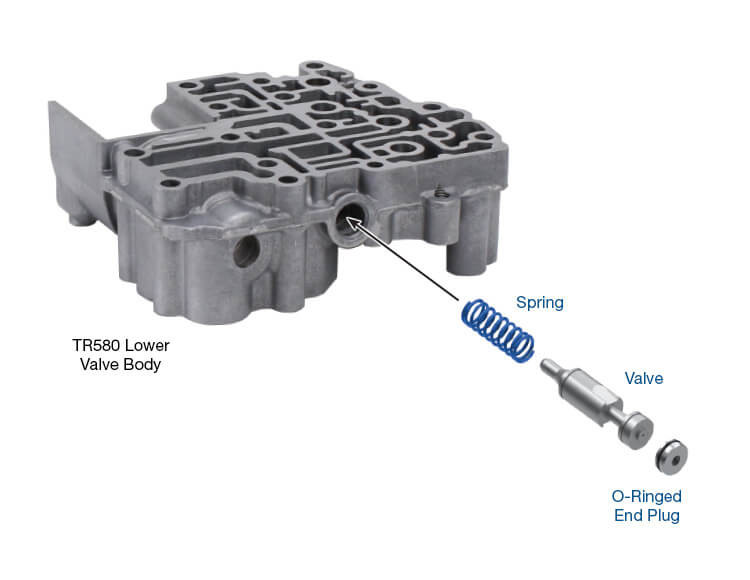

TR580 Oversized Lubrication Valve Kit
Sonnax Part Number: 823740-03K
TOOLING REQUIRED
- F-823740-TL3
- VB-FIX
Wear in the lubrication bore and on the major spool areas of the lubrication valve is common in Subaru TR580 continuous variable transmissions. This wear minimizes secondary pressure control resulting in overheating, lube failures and TCC apply and release concerns.
Reconditioning the bore and installing Sonnax oversized lubrication valve kit 823740-03K eliminates the leakage of secondary pressure fluid to exhaust. The incorporation of annular grooves on the outboard and inboard major diameter spools of the valve ensures the valve functions and operates in the center of the bore. The O-ringed end plug provides a positive seal and prevents critical secondary pressure fluid from leaking. These Sonnax features ensure your unit will have proper secondary pressure through all drive ranges.
- O-Ringed end plug provides positive seal to prevent critical secondary pressure fluid from leaking to exhaust
- Hardened carburized steel valve combats premature wear
- Annular grooves help center the valve in the bore to reduce future side-load wear
- New spring restores OE pressure specifications

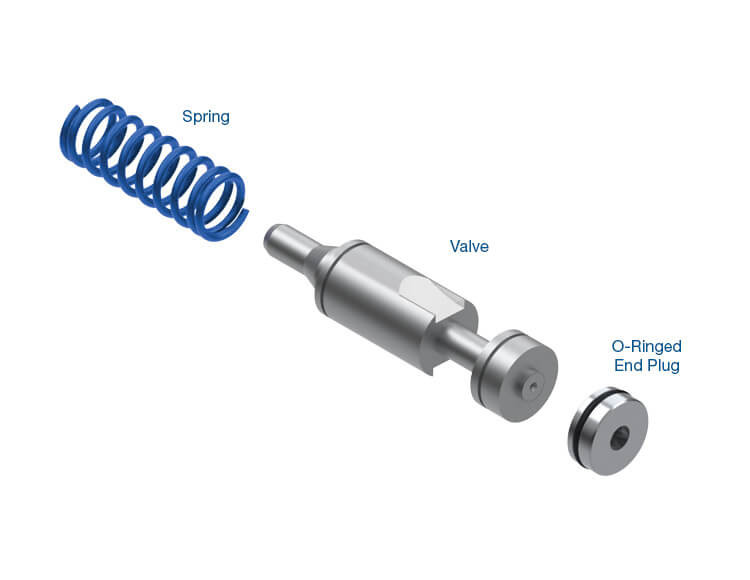

PACKAGE CONTAINS
- Valve
- Spring
- End Plug
- O-Rings (2) 1 Extra
SYMPTOMS
- Overheating
- Lube failures
- TCC apply & release concerns
CAUSE
CORRECTION
Recover hydraulic control and renew secondary pressure performance by reconditioning the bore and installing Sonnax oversized lubrication valve kit.
