Product Description

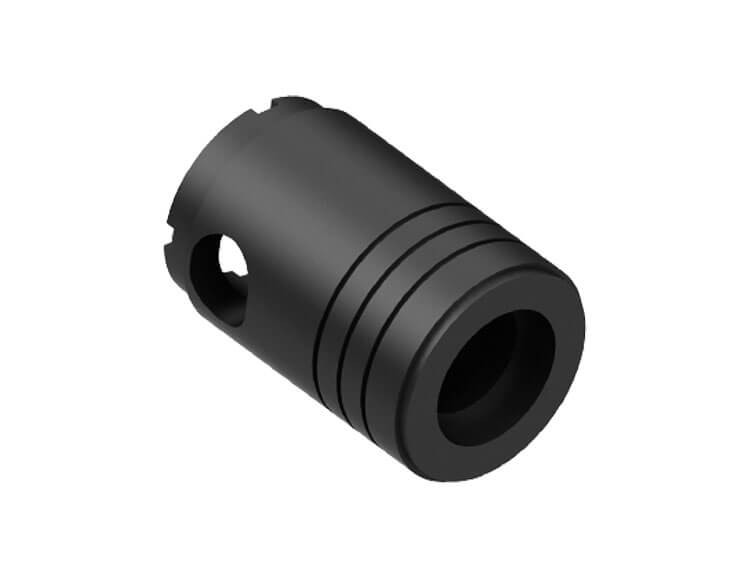

JF010E Oversized Pump Flow Control Valve | Sonnax
Sonnax Part Number: 113741-26
MEASURE OE VALVE AND SPRING CAGE FIRST TO ENSURE COMPATBILITY. INCORECT USAGE CAN CREATE FLOW ISSUES ANDN EARLY PULLEY DAMAGE
Tooling Required
- F-113741-TL7C
- VB-FIX
- VB-06
NOTE: Use of the VB-06 base plate is highly recommended when using the F-113741-TL7C tool kit. The standard VB-FIX base plate would require drilling and tapping to allow reverse installation.
In Jatco/Nissan JF010E (RE0F09A/RE0F09B) units, the pump body flow control valve bore wears due to constant valve movement. Wear allows critical pump pressure to leak into the low pressure side of the pump, reducing pressure needed for proper engagements and push belt pulleys to operate correctly. Sonnax oversized pump flow control valve 113741-26 allows the pump body to be refurbished and hydraulic control to be restored.
This Sonnax valve is designed to work in the OE version with the longer valve and shorter sleeve. It should not be used in the OE version with a short valve and long sleeve or code P07468 or P0868 can result due to excess bypass flow. Related Sonnax valve 113741-07 should be used to replace a worn OE short valve and long sleeve design.
- Hardcoat anodized aluminum valve combats premature wear
- Use of the VB-06 base plate and the VB-FIX reaming fixture, allows salvage of previoulsy non-repairable pump bodies
PACKAGE CONTAINS
- Valve
SYMPTOMS
- Delayed engagement
- Push belt slippage
CAUSE
CORRECTION
Refurbish the pump flow control valve bore and install the Sonnax oversized pump flow control valve to restore adequate pressure for the pump drive pulleys.
