Honda/Acura 9-Speed Transmissions & ZF9HP48 A&F Dog Clutch Plunger Valve Kit
ONLY FITS UNITS WITH 0.196'' DIAMETER PLUNGER VALVES! THE ZF9HP48 PBW (PARK-BY-WIRE) AND PBC (PARK-BY-CABLE) HAVE DIFFERENT PLUNGER VALVE DIAMTERS THAN CHRYSLER APPLICATIONS AND SOYULD NOT BE INTERCHANGED.
Sonnax Part Number: 85740-22K
NO TOOLING REQUIRED

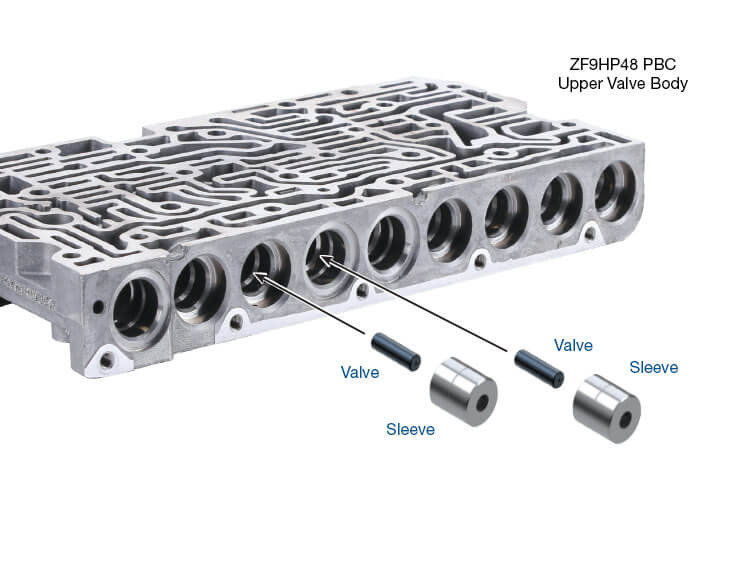

Honda/Acura 9-speed and ZF9HP48 transmissions are equipped with an aluminum sleeve for the A and F dog clutch plunger valve. This material is prone to wear from valve plunger reciprocation. Failure of this sleeve results in a variety of shift problems and solenoid codes. Sonnax A & F dog clutch plunger valve kit 85740-22K restores the correct hydraulic clearance and proper function of the assembly.
- Hardcoat anodized aluminum valves combat premature wear
- Highly wear-resistant sleeves increase service life
- Drop-in Zip Valve™ parts install quickly and easily

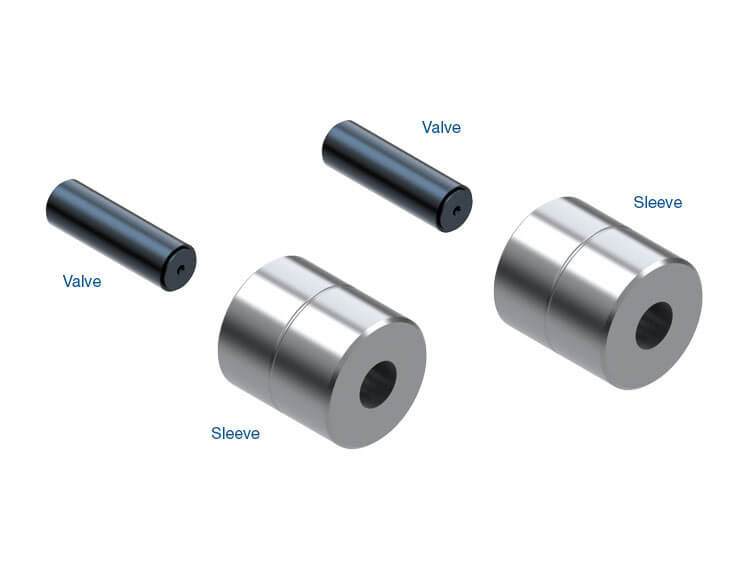

PACKAGE CONTAINS
- Valves (2)
- Sleeves (2)
SYMPTOMS
- Loss of higher gears
- Damaged A dog clutch
- Damaged F dog clutch
- Input shaft damage
- P3 & P4 sun gear damage
- Delayed engagement
- Cycling RPM during shift
CAUSE
The dog clutch plunger valves provide source pressure for both the A and F dog clutch apply and release. Responding to TCM and the linear solenoid, the clutch control valve establishes control timing of apply and release relative to engine RPM. Bore wear will cause an overlap or premature exhaust of clutch pressure.
CORRECTION
Sonnax drop-in A & F dog clutch plunger valve kit corrects circuit pressure loss and restores control timing of the A and F dog clutch valves.
