Product Description

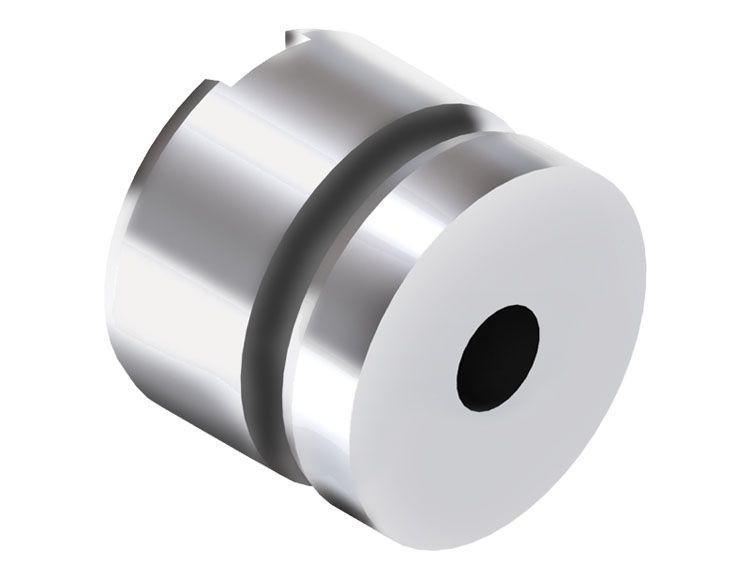

Honda/Acura 4-Speed & 5-Speed 3-Shaft Transmission Valve Body End Plugs
FITS UNITS WITH DUAL LINEAR SOLENOIDS ONLY

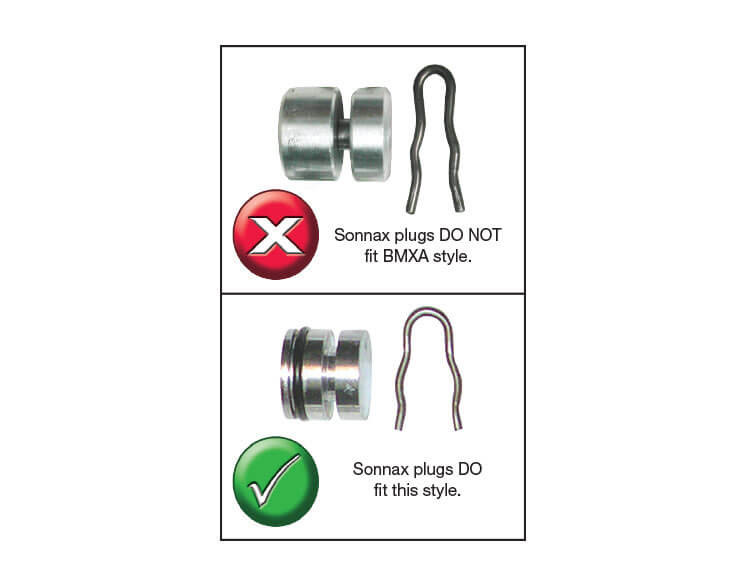

SOME BMXA UNITS HAVE BEEN FOUNDN WITH PLUGS WHICH HAVE SMALLER DIAMETER CLIP-GROOVES AND NARROWER RETAINERS. SONNAX END PLUGS WILL NOT WORK IN THESE APPLICATIONS.
DUE TO APPLICATION VARATIONS, ADDITONAL END PLUGS MAYBE BE REQUIRED. SINGLE END PLUGS IN ALL THREE SIZES (12mm, 14mm, 15mm) ARE AVAILABLE SEPARATELY.
Sonnax Part Number: 98892-03
NO TOOLING REQUIRED
Valve bore plugs on Honda/Acura 4-speed, 3-shaft and 5-speed valve bodies wear and allow critical CPC and solenoid feed oil to leak to exhaust, leading to low CPC pressures and soft or inconsistent shifts. Sonnax 15mm end plug 98892-03 replaces the worn OE end plugs and restores critical circuit pressures. The drop-in Zip Valve™ installs quickly and easily.
PACKAGE CONTAINS
- End Plug (1) 15mm
SYMPTOMS
- Inconsistent shift quality
- TCC codes
- TCC lining failure
CAUSE
Worn, eroded end plugs allow loss of critical hydraulic pressure.
CORRECTION
Sonnax drop-in end plug restores correct circuit pressures.
