Honda Acura 4-Speed & 5-Speed Transmission TC Check Valve Kit | Sonnax

Product Description

Honda/Acura 4-Speed & 5-Speed 3-Shaft Transmission Oversized Converter Charge Regulatred Pressure Regulator Valve Kit

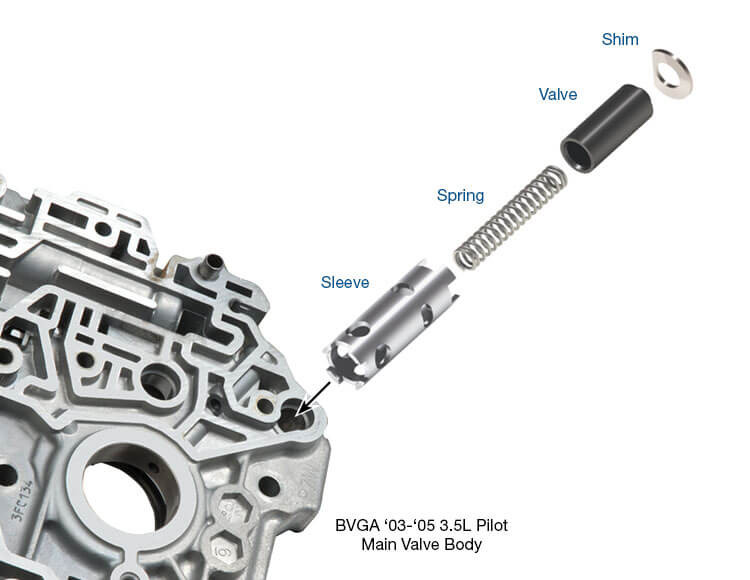

THIS KIT FITS VARIOUS HONDA 4/5 SPEED MODELS. HOWEVER, MODEL TO MODEL, THE APPERANCE OF VALVE BODIES AND THE LOCATION OF THE TORQUE CONVERTER CHECK VALVE MY VARY. THE BVGA 2003-2005 3.5L PILOT MODEL IS ILLUSTRATED HERE.

IN ADDITION, CERTAIN MODELS REQUIRE A DIFFERENT STYLE TC CHECK VALVE.REFER TO THE APPLICATION CHART.

Sonnax Part Number: 98892-06K

NO TOOLING REQUIRED

An overheated converter, TCC codes, and/or poor cooler flow are common problems in Honda/Acura vehicles equipped with 4-speed, 3-shaft and 5-speed automatic transmissions. These conditions can be caused by a worn or sticking TC check valve.

The TC check valve ensures converter pressure does not become excessive during TCC apply, release or partial apply. Over time, repeated stroking of the valve creates wear areas in the casting. Depending upon specific Honda/Acura application, this valve can stroke in one casting or between multiple castings stacked together. The valve often sticks on the ledges of these wear areas or at the edges of the stacked castings.

If the TC check valve sticks in the open position, converter pressure will be reduced. If stuck in the closed position, excess converter pressure can result. Severe bore wear allows critical pressure to exhaust, resulting in high or low converter pressure. Prevent valve hang-up and recover hydraulic control by installing Sonnax TC check valve kit 98892-06K.

• Sonnax sleeve eliminates ledges that cause valve sticking
• Larger sealing surface area between valve and sleeve for effective hydraulic control, even in worn castings
• Sleeve manufactured from highly wear-resistant aluminum
• Salvages OE valve bodies machined with an edge remaining at the relief ports
• Drop-in Zip Valve™ parts install quickly and easily

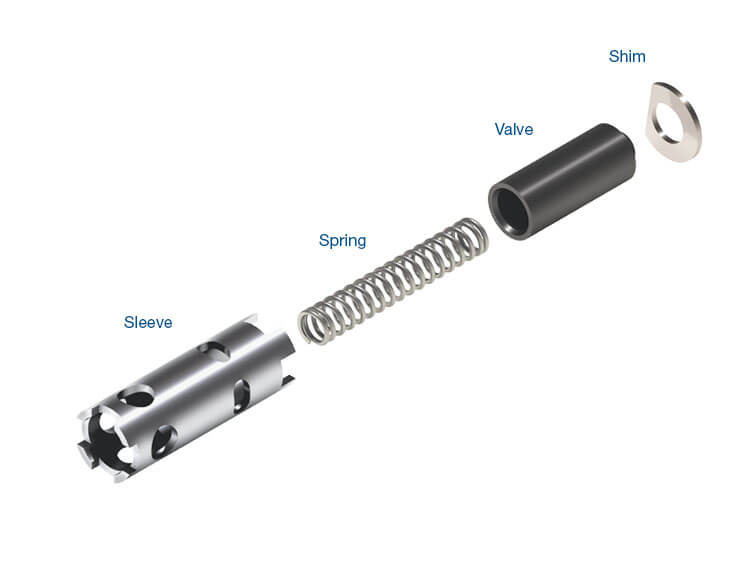

PACKAGE CONTAINS

• Valve
• Sleeve
• Spring
• Shims (2) 1 Extra

SYMPTOMS

• Overheated converter fluid
• Poor converter & cooler oil flow
• TCC codes
• TCC apply & release concerns

CAUSE

Excess wear in TC check valve bore and/or sticking check valve allows critical pressure loss that prevents normal operation.

CORRECTION

Recover hydraulic control and renew TCC operation by installing Sonnax drop-in TC check valve kit.

98892-06K INSTRUCTIONS
