Product Description
Ford E4OD 4R100 Transmission Overdrive Clutch PowerPack
Made in the USA by Alto Products Corp
1989-1998
Performance Upgrade for Stock, Heavy Duty and Race Applications
Alto Part Number: 026758A

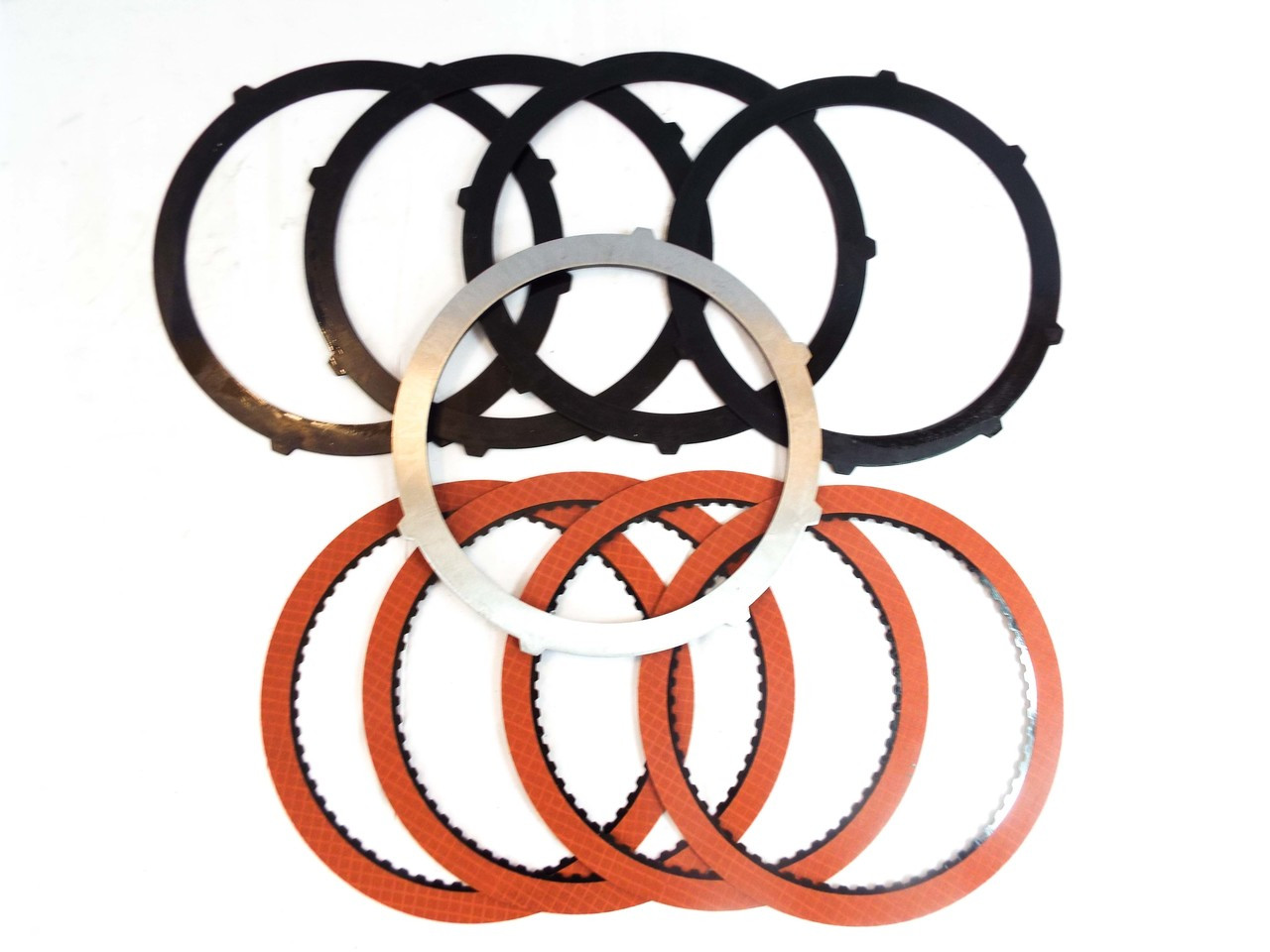

THIS POWERPACK CONTAINS
- (4) 026722C177 (.070” / 1.78mm) Kriptonite® Friction Plates
- (4) 026723K200 (.080” / 2.0mm) Kolene® Steel Plates
- (1) 026763-487 (.192” / 4.88mm) Top Backing Pressure Plate
Installation Instructions
The recommended stack-up for the Overdrive Clutch is four (.070” / 1.77mm) friction plates, four (.080” / 2.0 mm) steel plates and the (.192” / 4.87mm) top backing pressure plate. Start the stack up with an Alto Steel Plate and alternate with an Alto Friction Plate until all four frictions and steels are used.
NOTE: The stack-up of the Overdrive Clutch is the same method as OE.
The overdrive clutch pack clearance should be set at .022” - .047” (0.55mm – 1.20mm). Measure by using a feeler gauge between the top pressure plate and the snap ring. NOTE: Always pre-soak friction elements for at least 15-20 minutes in manufacturer recommended ATF prior to assembling the clutch pack.
