Product Description
4R100, E4OD
Center Support Shim

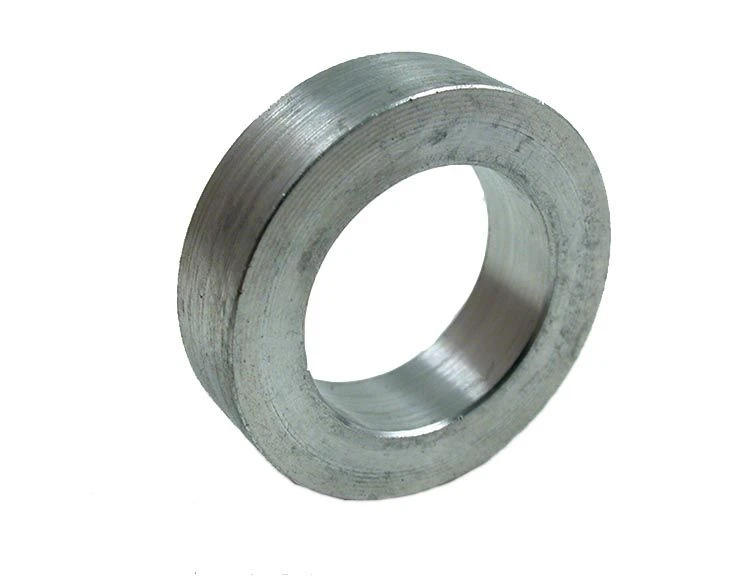

Part No. 36743-01
Package Quantity: 10
Ford E4OD and 4R100 transmissions are prone to case deflection because the OE design, which has a gap between the case and center support. When the center support bolts are torqued to OE specifications without the shim, typical case distortion is .005" in the area around the center support bolts, which causes valve body cross leaks as well as leaks of the 2nd clutch feed between the case and center support. Sonnax center support shim fills this gap so that when the center support bolts are tightened, it prevents the case from distorting, decreasing case deflection and reducing cross leaks.
- Minimizes case distortion
- Reduces cross leaks
The center support shim fills the gap between the outer diameter of the center support and the rough-cast surface inside of the case. Since the inside of the case is not a machined surface, the gap between the case and center support will vary between units. The shim thickness will work in MOST units, but due to the variability in case thickness, it will not work in ALL units.
- Material: Aluminum
- Thickness: 0.204"
- Inner Dia.: 0.480"
- Outer Dia.: 0.750"
Symptoms:
- Cross leaks
- Second clutch feed passage leaks at case & center support
