Product Description
DISCONTINUED BY SONNAX
AX4S AXODE AXOD 1-2 Accumulator Bore Sleeve
Sonnax Part Number: 96513K
NO TOOLING REQUIRED
The 1-2 accumulator bore on Ford AX4S, AXOD and AXODE channel castings can become scored which creates loss of clutch pressure or cross-leaks. The continuous oscillation of the piston within the bore causes excess wear. In addition, a broken accumulator spring can get caught between the piston and the bore causing a deep groove in the casting wall. You can resolve these problems by installing Sonnax 1-2 accumulator bore sleeve kit 96513K.
- Kits contain an aluminum sleeve and new steel accumulator piston with a Viton® O-ring
- Piston is compatible with all OE springs and OE piston pins
- Length of piston-to-pin contact area has been increased to reduce piston cocking and increase sealing surface area
- Drop-in Zip Valve™ parts install quickly and easily

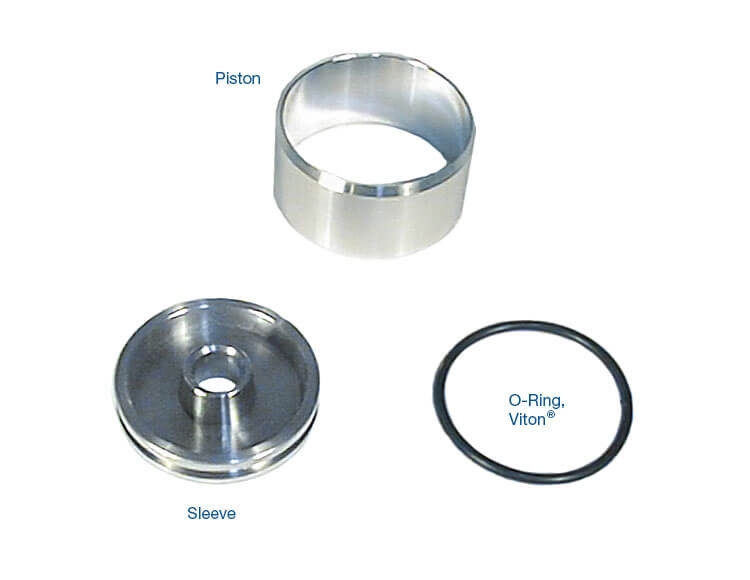

PACKAGE CONTAINS
- Sleeve
- Piston
- O-Ring Viton®
SYMPTOMS
- Flare shifts
- Harsh shifts
- Delayed engagement
CAUSE
Scored accumulator bores create loss of clutch pressure or cross leaks.
CORRECTION
Sonnax drop-in accumulator bore sleeve is made from wear-resistant aluminum and the length of the piston-to-pin contact area has been increased to reduce piston cocking and increase sealing surface area.
Product Videos
Custom Field
Requires Tooling? No
