Product Description
455-50SN 55-51SN RE5F22A Oversized Lockup Relay Valve Kit
Sonnax Part Number: 59947-77K
TOOLING REQUIRED
- F-59947-TL20
- VB-FIX
Vehicles equipped with Aisin AW 55-50SN and 55-51SN transmissions often exhibit several common concerns related to wear in the lockup relay valve bore. Oscillation of the lockup relay valve and stroking of the lockup control relay valve in its sleeve results in wear, which creates a loss of hydraulic control of the lockup circuit. Various TCC apply/release related concerns develop in these cases. Sonnax oversized lockup relay valve kit 59947-77K allows the bore to be refurbished, restoring normal TCC operation.
- Sleeve is manufactured from highly wear-resistant aluminum
- Hardcoat anodized aluminum valves combat premature wear

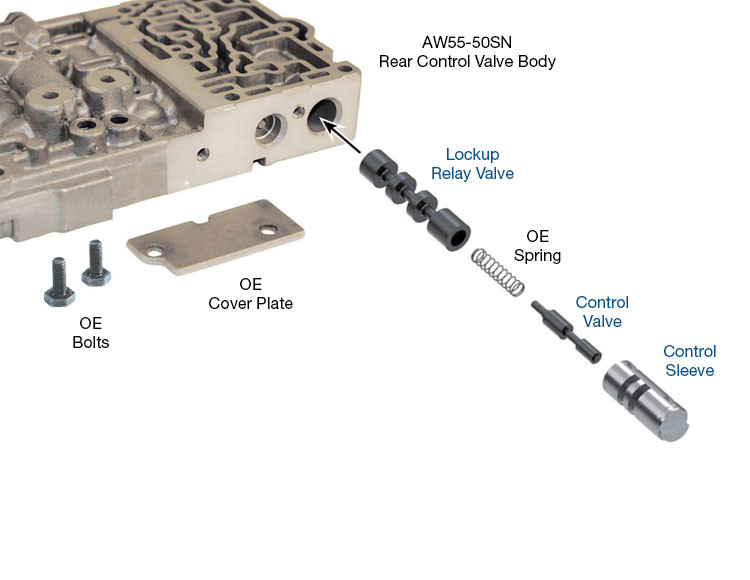

PACKAGE CONTAINS
- Control Valve
- Lockup Relay Valve
- Control Sleeve
SYMPTOMS
- No lockup
- TCC apply & release concerns
- Delayed lockup
- Burnt converter
- Inadequate lubrication
CAUSE
Worn and/or sticking lockup relay and control valves can prevent full TCC apply or release, which can create multiple TCC symptoms.
CORRECTION
Ream the bore and install Sonnax oversized lockup relay valve kit to restore hydraulic control of the TCC circuit.
Product Videos
Custom Field
Requires Tooling? Yes
