Product Description
AS66RC AS69RC Oversized Cooler, Main Converter & Converter Relief Valve Kit
Sonnax Part Number: 122740-10K
Tooling Required
- F-122740-TL10
Aisin Seiki AS66RC and AS69RC units often suffer overheating and converter slip/code issues caused by excess wear in the cooler, main converter pressure and converter relief bores. This wear allows fluid loss, which can lead to poor cooling, low cooler feed, low converter charge, TCC slip and TCC slip codes. When working properly, these valves dampen/absorb pressure spikes to ensure proper apply and release of the TCC.
Reconditioning the bores and installing Sonnax oversized cooler, main converter pressure and converter relief valve kit 122740-10K re-establishes correct clearances for proper valve function.
- Steel valves combat premature wear
- Annular grooves, where appropriate, help center the valve in the bore to reduce side-load wear
- Springs calibrated to match OE function

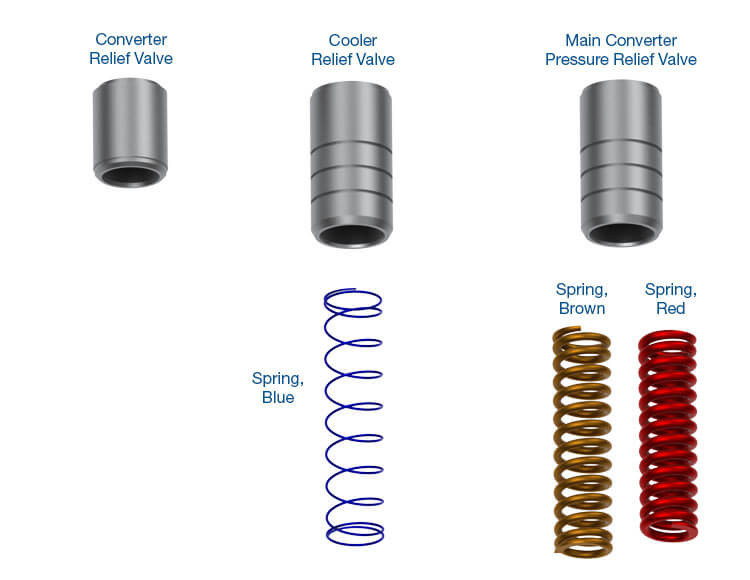

PACKAGE CONTAINS
- Cooler Relief Valve
- Cooler Relief Valve Spring - Blue
- Main Converter Pressure Relief Valve
- Main Converter Pressure Relief Valve Spring - Brown for Gas Applications
- Main Converter Pressure Relief Valve Spring - Red for Diesel Applications
- Converter Relief Valve
SYMPTOMS
- Low cooler flow
- Overheated fluid
- Low converter pressure
- TCC slip
- TCC slip codes
CAUSE
Bore wear in the cooler, main converter pressure relief and/or converter relief valve can cause excess leakage and/or sticking valves in their respective circuits resulting in various overheating and converter apply and release issues as well as TCC slip codes.
CORRECTION
Restore hydraulic control by reconditioning the bores and installing Sonnax oversized cooler, main converter pressure and converter relief valve kit.
