Product Description
A750E A750F A760E A760F A760H A761E A960E A960F AB60E AB60F Oversized Secondary Pressure Regulator Valve Kit
Sonnax Part Number: 147741-10K
TOOLING REQUIRED
- F-147741-TL4
- VB-FIX
The continuous oscillation of the secondary pressure regulator valve in Toyota/Lexus A750, A760, A960 and AB60 series transmissions wears the valve spools and valve body bore at the contacting surfaces. This wear results in TCC pressure irregularities and valve instability. If pressure is high, harsh lockup clutch engagement can result. If the pressure is too low, the TC clutch cannot achieve complete lockup. Continuous clutch slippage will lead to burnt clutch material and converter. Under these conditions, loss of mileage and poor drivability are to be expected.
Sonnax oversized secondary pressure regulator kit 147741-10K includes a high-quality steel valve with annular grooves to reduce side-load wear and extend valve and valve body life. Sonnax tool kit F-147741-TL4 was designed as a multi-purpose tool. Used in conjunction with our VB-FIX reaming fixture, both the main pressure regulator bore and the secondary pressure regulator bore can be reamed and prepared for their respective kits: 147741-10K and oversized pressure regulator and boost valve kit 147741-04K.
- Valve is made from high quality, hardened steel to resist wear
- Inner spool has annular groove to reduce side-loading

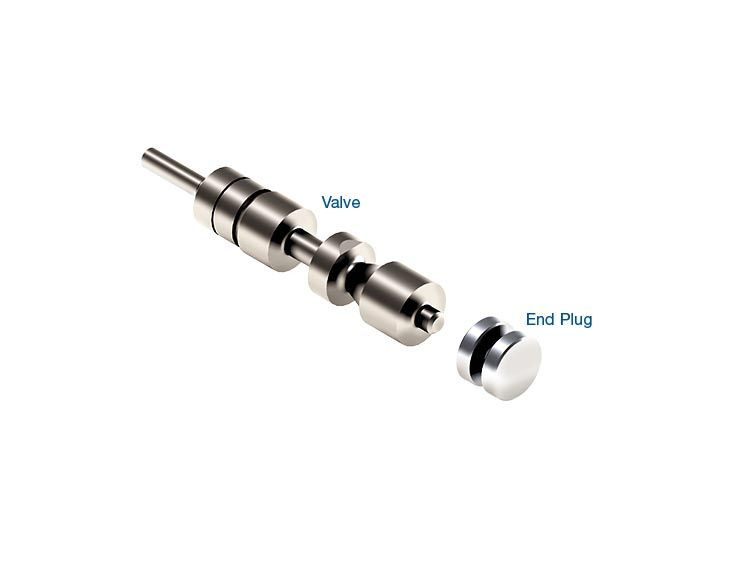

PACKAGE CONTAINS
- Valve
- End Plug
SYMPTOMS
- Harsh lockup
- TCC apply & release concerns
- Burnt converter
- Lube failures
CAUSE
CORRECTION
