Product Description
This product has been discontinued by the manufacture and replaced with 46-47RHE-ZIP. CLICK HERE to go to replacement part. Thank you!
The Sure Cure® Kit
Part No. SC-46-47RHE-OS
Tooling Required: F-22771A-TL7 - 22771A-TL13 - 22771-TL12 - F-22771-TL - VB-FIX
Sonnax Sure Cure Kit SC-46-47RHE-OS targets the root cause of multiple concerns by sealing critical circuit pressure losses in the valve body. The kit contains uniquely-designed parts to prevent the loss of pressures within the main line, converter clutch, throttle and lube circuits. Many of the valve components for the valve body are oversized to address significant wear from many miles, which requires appropriate tool kits for installation. The kit also contains updated transmission components to address unit end play, 2-3 shift complaints, direct clutch failure, kickdown band strut breakage, reverse complaints and other chronic issues.
The Sure Cure Kit quick guide provides clear and easy instructions to get the unit sealed up and back on the road quickly.
- Restores OE shift quality
- Repairs biggest trouble areas to reduce comebacks
- Get everything you need for restoring troublesome units in one place, at one cost

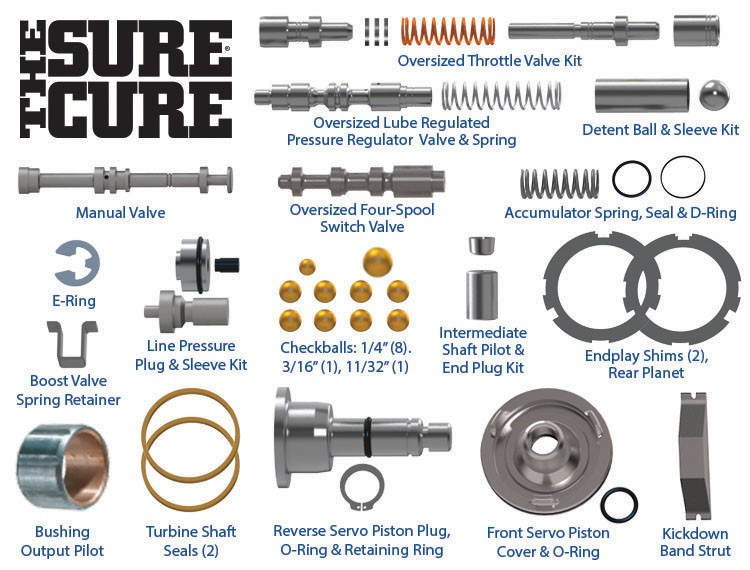

A518/A618 Zip Kit Contains
- Turbine Shaft Seals (2)
- Front Servo Piston Cover Kit
- Kickdown Band Strut
- Lube Regulated Pressure Regulator Valve
- 4-Spool Switch Valve
- Manual Valve
- 3-4 Accumulator Spring
- Throttle Valve Kit
- 3-4 Accumulator Piston Seals
- Boost Valve Spring Retainer
- Checkballs (10)
- Intermediate Shaft Pilot & End Plug Kit
- Output Pilot Bushing
- Rear Planet End Play Shims (2)
- Reverse Servo Piston Plug Kit
- E-Ring
- Detent Ball & Sleeve Kit
- Line Pressure Plug & Sleeve Kit
