9T45 9T50 9T60 9T65 O-Ringed End Plug Kit | Sonnax

Product Description

9T45 9T50 9T60 9T65 O-Ringed End Plug Kit

Fits both ETRS and non-ETRS valve bodies. Port configurations may change due to variations of casting channels.

Sonnax Part Number: 184740-03K

NO TOOLING REQUIRED

OE end plugs are designed to prevent critical pressure loss by capping the bore while also functioning as a spring or valve stop. Repetitive spring motion, valve impact and fluid pressure variations cause wear between the end plug and bore mating surface, allowing vital pressure to escape the circuit.

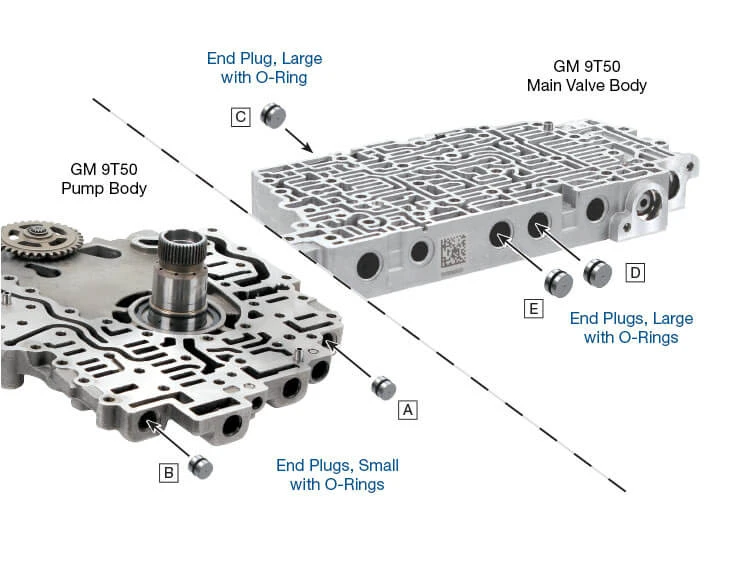

GM 9T45/50/60/65 valve body and pump have end plugs at various bores that are susceptible to the wear conditions described above. When pressure drops due to plug deterioration, assorted shift concerns can arise and burnt clutches often result in the affected circuit. Put an end to leaks, restore hydraulic integrity and renew shift operation by installing Sonnax O-ringed end plug kit 184740-03K.

• Minimal end-plug-to-bore clearance with added O-ring for positive seal
• Prevents loss of critical pressure
• Reduces or eliminates leakage in eroded OE bores
• Drop-in Zip Valve™ parts install quickly and easily

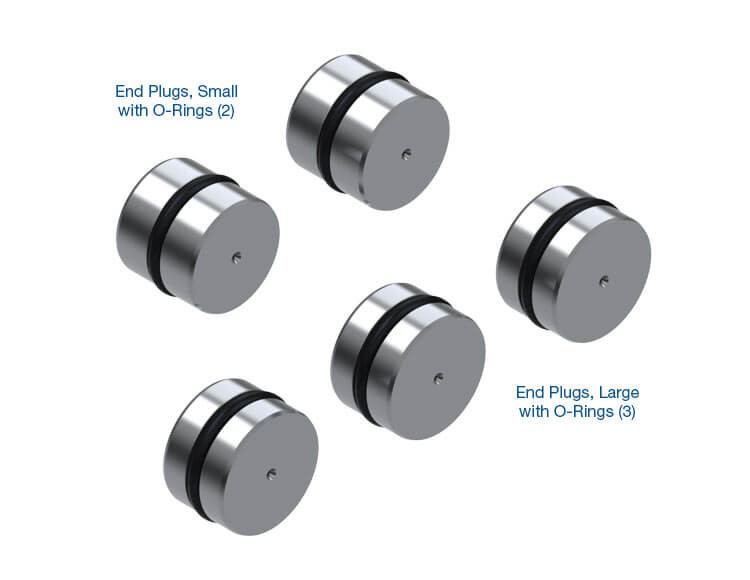

PACKAGE CONTAINS

CORRECTION
