Product Description
948TE, Honda, Acura 9-Speed, ZF9HP48 Shift Valve System Pressure Valve Kit
Sonnax Part Number: 85740-07K
REPLACES VALVES WITH OVERALL LENGTH OF 1.157''. INNER SPOOL LENGTH OF 0.435'' AND END PLUG WITH WIRE RETAINER
A unique valve in Chrysler 948TE, Honda/Acura, 9-speed and ZF9HP48 transmissions is the shift valve system pressure valve (SV-SP), which is designed to help control main line pressure by feeding pressure to the inboard side of the main pressure regulator valve. Wear at this SV-SP valve can prevent proper line regulation, which results in incorrect line pressure control, poor shift quality and burnt clutches. Sonnax shift valve system pressure valve kit 85740-07K restores the hydraulic control necessary to provide proper line pressure regulation.
- Sleeve manufactured from highly wear-resistant billet aluminum
- Hardcoat anodized aluminum valve combats premature wear
- Drop-in Zip Valve™ parts install quickly and easily

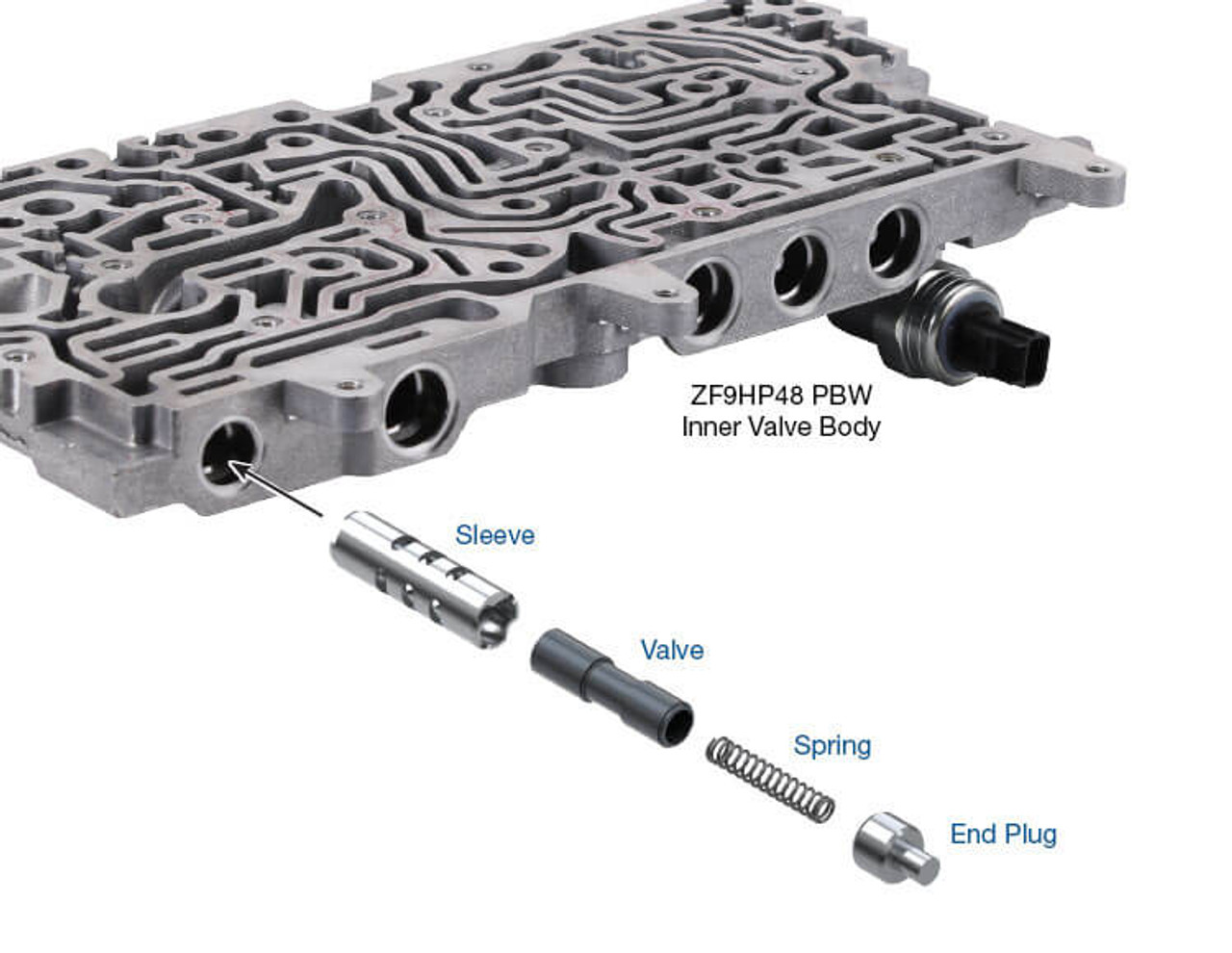

KIT CONTAINS
- Sleeve
- Valve
- Spring
- End Plug
SYMPTOMS
- Poor line pressure control
- Poor shift quality
- Burnt clutches
CAUSE
A worn or stuck valve prevents proper control main line pressure, resulting in incorrect line pressure control, poor shift quality and burnt clutches.
CORRECTION
Recover main line pressure control and shift feel by installing Sonnax drop-in, sleeved shift valve system pressure valve kit.
