Product Description

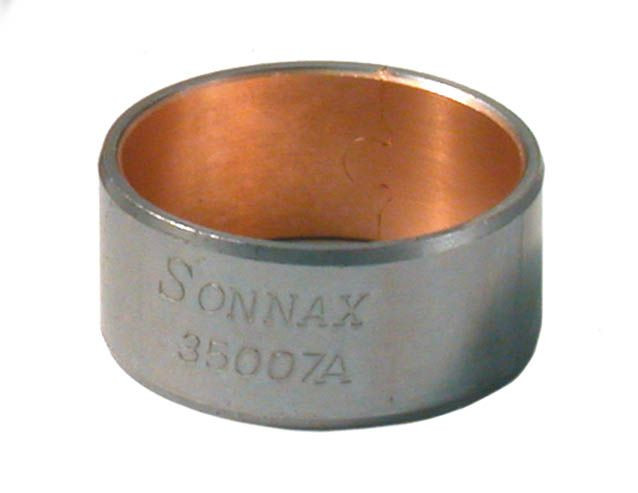

Sonnax stator support bushing 35007A allows technicians to service both Sonnax and OE stator support tubes.
Use the chart below to determine proper usage as a front stator bushing in 4L60/E applications.
| Sonnax Bushing No. | Description | 4L60, 4L60-E, 4L65-E, 4L70-E Application |
|---|---|---|
| 35007A | Thin wall (1.004" I.D.) | ’84-Later |
| N/A | Thick wall (.908" I.D.) | ’82–’84 (4L60 early, small shaft diameter) |
PACKAGE CONTAINS
- Bushing (1)
SPECIFICATIONS
- Bushing Style: Precision
- Material: Steel-backed copper alloy
- Width: 0.500"
- Housing Bore: 1.121"
- Inner Dia.: 1.004"
- Shaft Dia.: 1.002"
