Product Description
6T30 (Gen. 1), 6T30 (Gen. 2), 6T30 (Gen. 2), 6T40 (Gen. 1), 6T40 (Gen. 2), 6T45 (Gen. 2), 6T45 (Gen.1), 6T50 (Gen. 1), 6T50 (Gen. 2)
Oversized TCC Control Valve Kit
Part No. 144510-05K
Tooling Required:
- F-144510-TL5C
- VB-FIX
Common concerns associated with GM Gen. 1 and Gen. 2 6T30/40/45/50 transmissions are TCC slip, TCC lining degradation, TCC slip codes and converter apply or release issues. These problems are often caused by excess wear at the TCC control valve bore. In addition, converter/lube and cooler flow can be restricted, resulting in an overheat situation.
Reconditioning the bore and installing Sonnax oversized TCC control valve kit 144510-05K restores hydraulic integrity for renewed TCC, lubrication and cooler operation. Hardcoat anodized aluminum valve combats premature wear.
Proper TCC control relies on correct line pressure; if line pressure problems are discovered, Sonnax offers oversized pressure regulator valve kit 144510-01K.
Prior to reaming TCC control valve bore, a 1/2" spacer plate must be inserted between pump and VB-FIX. See instructions for details.

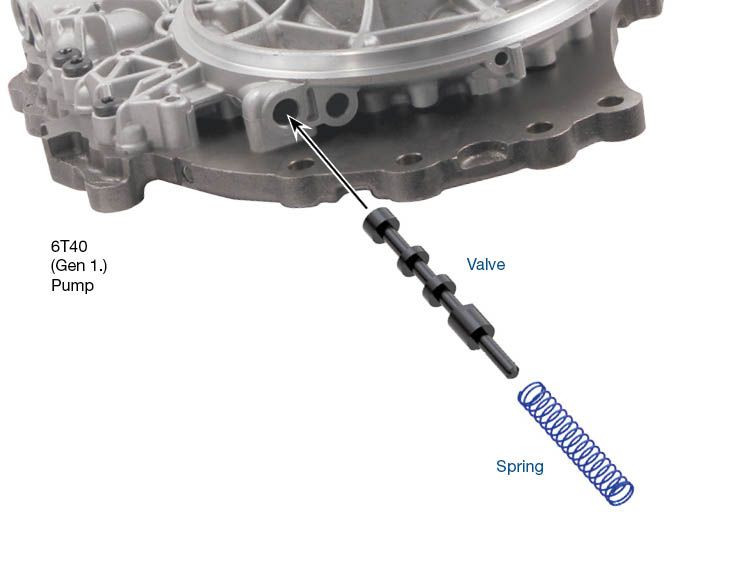

- Valve
- Spring
Symptoms:
- Excess TCC slip
- Low cooler flow
- Overheating
- Low converter & lube flow
- TCC apply & release concerns
- TCC codes
- TCC lining failure
Cause:
Wear of the TCC control valve bore due to continuous valve oscillation causes multiple TCC and lube/cooler circuit concerns.Correction:
Recover hydraulic control and restore proper TCC apply/release and cooling circuit operation by installing Sonnax oversized TCC control valve kit.
