6L80 6L90 6L50 5L40 Transmission RingMaster Specialty Snap Ring Pliers

Product Description

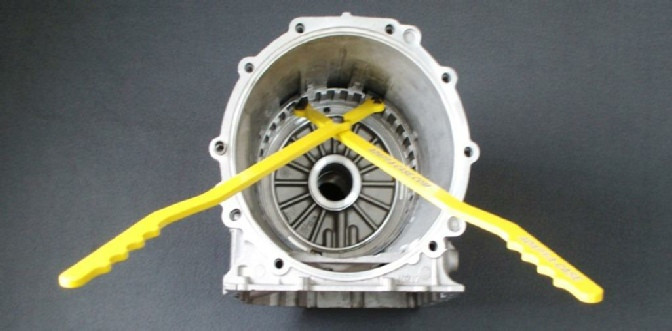

The RingMaster Transmission Snap Ring Pliers

Designed GM 5L40 / 6L50 / 6L80 / 6L90 transmissions

Made in the USA by Adapt-A-Case

The 6L80 ushered in a new era as GM's rear-wheel drive workhorse.  A fascinating design that uses a Lepelletier-inspired gear train.  The 6L80 also uses a large aluminum center support which must be removed to gain access to the low/reverse clutch pack and the rear planet assembly.

The center support houses the 2-6 clutch pack on the front side and the low/reverse on the rear.  The size of the support and the amount of stress of the two clutch packs it contains made necessary the use of a rather large, extremely stout snap-ring to hold it firmly in place.  Therefore, a rather large and stout pair of pliers is required!  Until just recently none were available.  To remove the snap ring many have found it necessary to cut into the case from the bottom to gain access with a screwdriver and hammer to "pop" it out of the groove.  Leverage is the name of the game when this much pressure is in play.  The engineers at Adapt-A-Case went through many designs before arriving at what you see.

The heavy-duty tips are replaceable (Part Number: 4513-3)

Adapt-A-Case Part Number: T-6800AC
