6L80 6L90 4-5-6 Clutch 1-Sided Red Eage Powerpack

Product Description

GM 6L80 Transmission 4-5-6 Clutch Powerpack

Made in the USA by Alto Products Corp

1-Sided High Performance Red Eagle Clutches

Contents

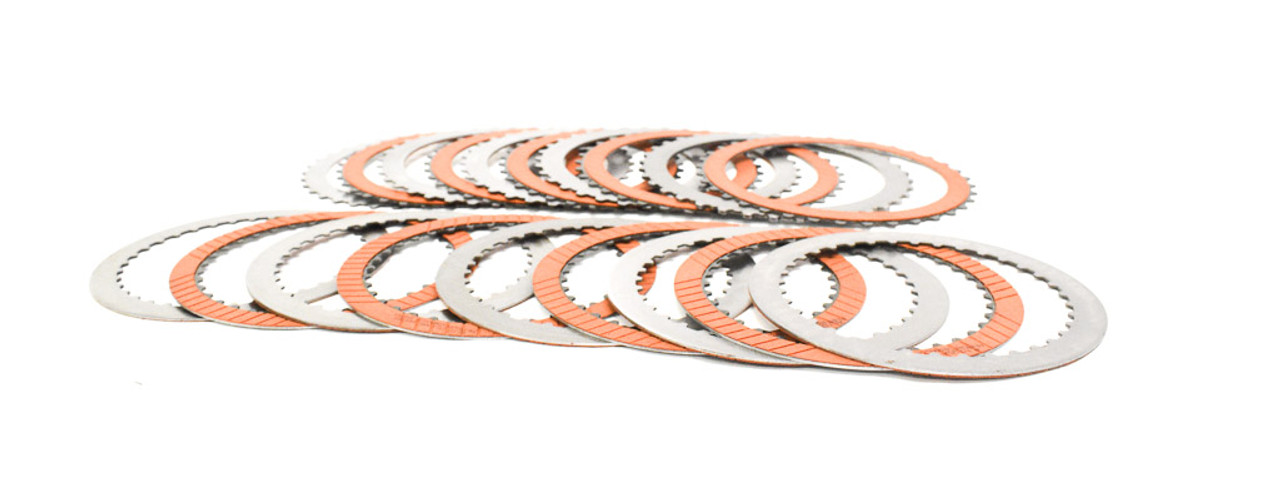

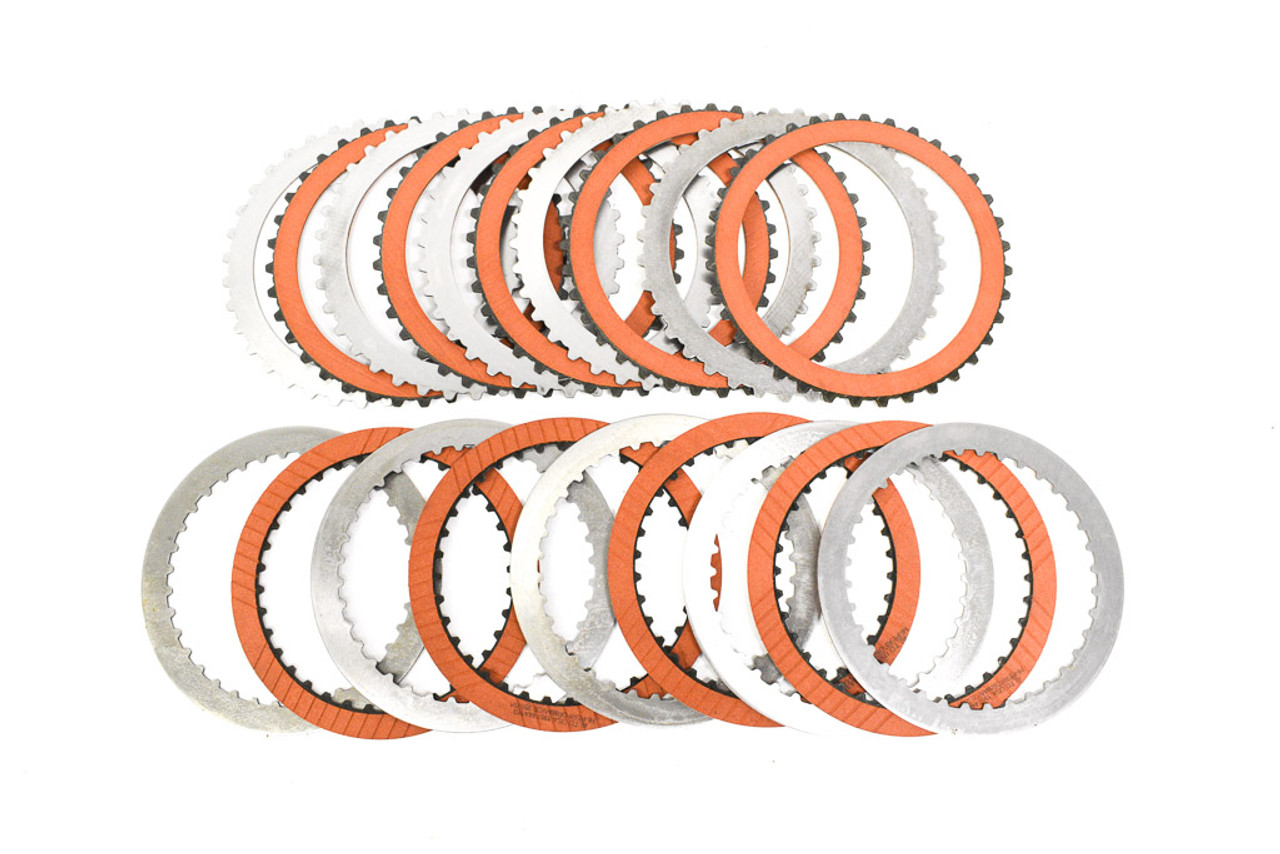

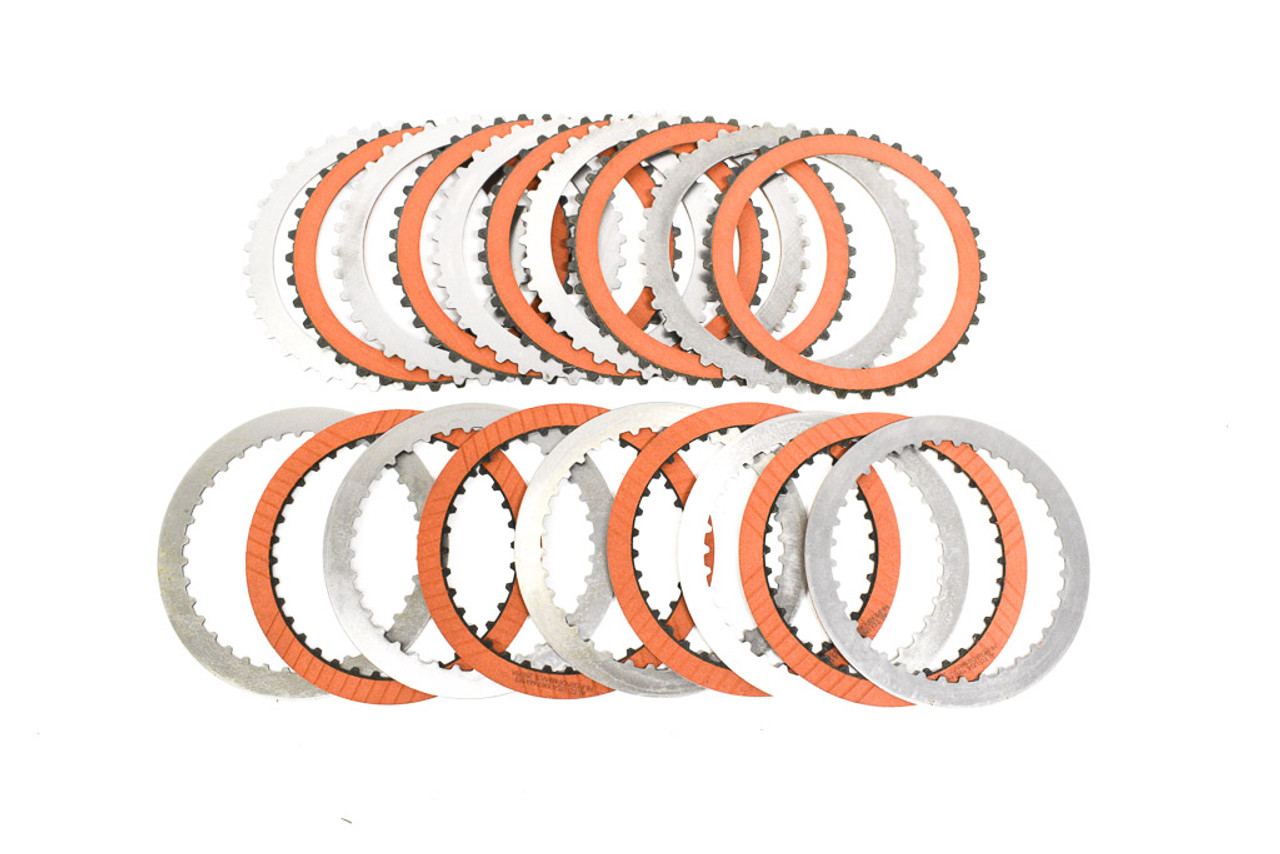

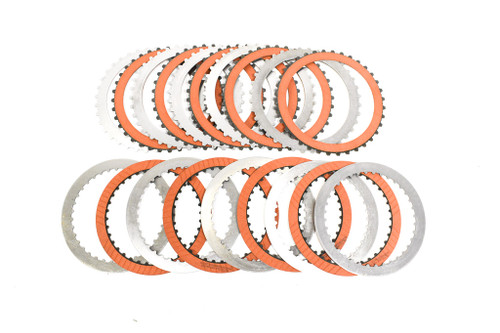

• (9) 195745A163 Red Eagle® External Spline Frictions Plates (1.63mm / .064”)
• (9) 195744A163 Red Eagle® Internal Spline Frictions Plates (1.63mm / .064”)
• (1) 195705-225 Steel Plate (2.23mm / .088”)

Directions

4-5-6: 6 Friction Drum

1. Remove the cushion spring that rides on the apply piston.
2. Start the stack-up with the steel plate followed by an externally splined friction plate with the friction lining facing up then an internally splined friction plate with the friction lining facing up.
3. Continue stacking external and internal friction plates ending with an internal splined plate, all of the friction plates must have the lining facing up or the clutch will fail. (7 internal and 7 external plates)
4. Install pressure plate and snap ring.

4-5-6: 7 Friction Drum

1. Remove the cushion spring that rides on the apply piston.
2. Start the stack-up with an externally splined friction plate with the friction lining facing up followed by an internally splined friction plate with the friction lining facing up.
3. Continue stacking external and internal friction plates ending with an internal splined plate, all of the friction plates must have the lining facing up or the clutch will fail. (9 internal and 9 external plates)
4. Install pressure plate and snap ring. (You will not use the steel plate in this stack-up)

NOTE: Always pre-soak the frictions in the type of ATF recommended by the OE for at least 30 minutes.

Check clutch pack clearance between the pressure plate and the top friction plate in 3 different locations, clearance should be .045” to .075” (1.14 – 1.90 mm).

PRINTABLE INSTRUCTIONS

ALTO PRODUCTS CROP # 195756
