6HP21 6HP28 6HP34 O-Ringed End Plug Kit | Sonnax

Product Description

ZF6HP21 ZF6HP28 ZF6HP34 O-Ringed End Plug Kit

KIT IS NOT COMPATIBLE WITH ZF6HP19 ZF6HP26 AND ZF6HP32 GEN-1 UNITS!

Sonnax Part Number: 95740-27K

NO TOOLING REQUIRED

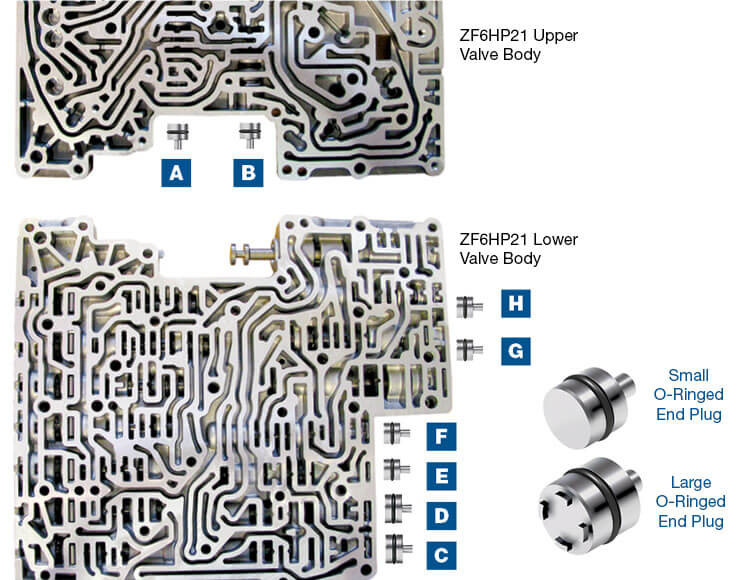

Valves, springs and pressurized fluid repeatedly push on end plugs causing them to deform and wear. As a result, critical pressure is lost due to excessive clearance betweeen the plug and bore. Sonnax O-ringed end plug kit 95740-27K services the eight individual bores in the ZF6HP21/28/34 (Gen. 2) valve body which use internal end plugs to isolate valves from solenoids. The O-ringed end plugs replace damaged OE end plugs and restore pressure containment to the valve bore.

Also available for this unit is the double O-ringed end plug kit 95740-30K that services all seven of the 12mm dia. bores.

• Prevents loss of critical pressure
• Requires no machining or special tools
• Services all seven bores to isolate valve from solenoids with 12mm internal end plugs
• Drop-in Zip Valve™ parts install quickly and easily

PACKAGE CONTAINS

• Large End Plugs (2) 15mm
• Large O-Rings (4) 2 Extra
• Small End Plugs (6) 13mm
• Small O-Rings (9) 3 Extra

SYMPTOMS

CAUSE

CORRECTION

Sonnax drop-in O-ringed end plugs restore correct circuit pressures. The O-ring provides additional sealing to reduce pressure losses past the end plug.

95740-27K INSTRUCTIONS
