Product Description

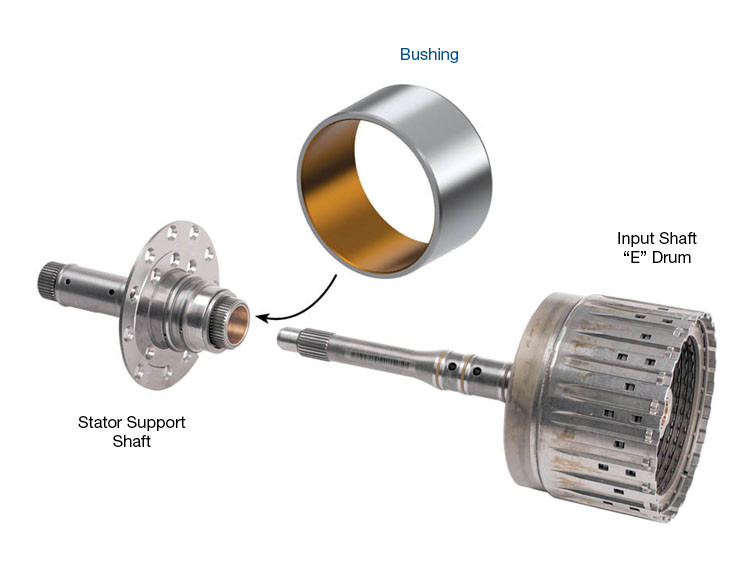

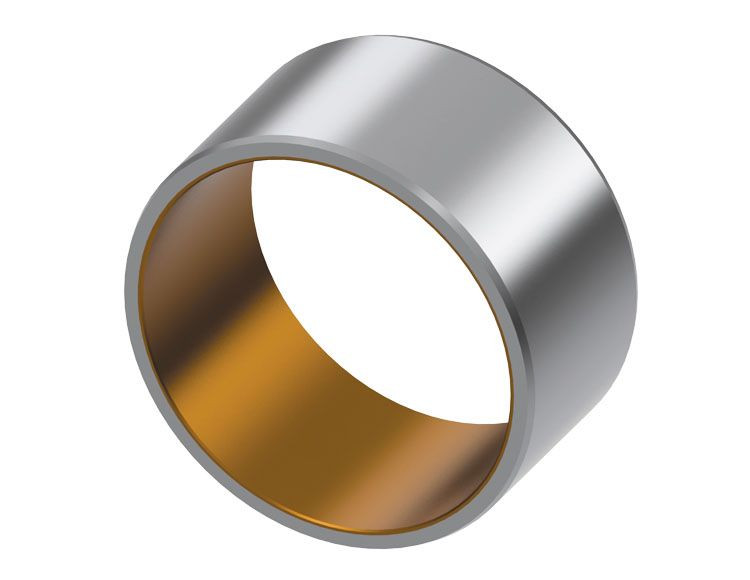

ZF6HP19 6HP26 6HP28 Rear Stator Support Bushing
FITS 1.022'' (25.97mm) DIAMETER INPUT SHAFT JOURNAL ONLY
Sonnax Part Number: 95030-01
USE OF AN ARBOR PRESS IS REQUIRED FOR CORRECT INSTALLATION. DO NOT USE A HYDRAULIC PRESS OR BUSHING DRIVER/HAMMER COMBINATION TO INSTALL, AS DOING SO WILL DISTORT THE BUSHING AND CAUSE FITMENT ISSUES
OE rear stator support bushings in ZF6HP19, ZF6HP26 and ZF6HP28 units have a tendency to wear out prematurely due to sub-optimal material composition. This wear can lead to bushing failure, loss of correct pressure to the E-clutch, and gear ratio or solenoid codes. Sonnax offers improved rear stator support bushing 95030-01 to restore worry-free operation.
- Upgraded material composition outperforms OE bushing
- Superior wear characteristics eliminate premature deterioration
PACKAGE CONTAINS
- Bushing (5)
SPECIFICATIONS
- Bushing Style: Precision
- Material: Steel-backed alloy
- Width: 0.590"
- Housing Bore: 1.142"
- Shaft Dia.: 1.022"
SYMPTOMS
- E Clutch burned
- Gear ratio & solenoid codes
- Bushing wear
- Bushing failure
CAUSE
CORRECTION
Install improved Sonnax rear stator support bushing to restore critical clearances and resist untimely wear.
