Product Description

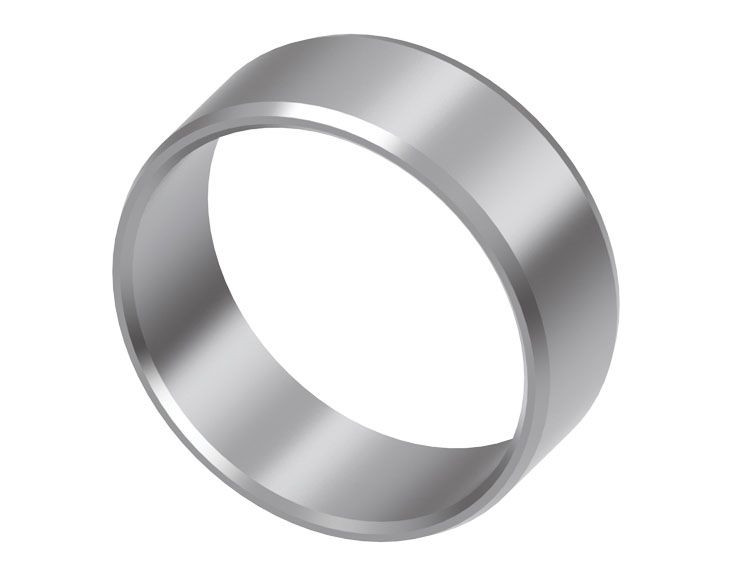

6HP19 6HP21 Front Stator Support Bushing
FITS .952'' (24.17mm) DIAMETER INPUT SHAFT FRONT JOURNAL. NOT ALL ZF6HP19 AND ZF6HP21 UNITS UTILIZE A FRONT STATOR SUPPORT BUSHING. PLEASE VERIFY APPLICATION BEFORE ORDERING
Sonnax Part Number: 95030-09
USE OF AN ARBOR PRESS IS REQUIRED FOR CORRECT INSTALLATION. DO NOT USE A HYDRAULIC PRESS OR BUSHING DRIVER/HAMMER COMBINATION TO INSTALL, AS DOING SO WILL DISTORT THE BUSHING AND CAUSE FITMENT ISSUES
Front stator support bushings in ZF6HP19 and ZF6HP21 units have a tendency to wear out prematurely due to sub-optimal material composition of OE bushing. This wear can lead to bushing failure and possible converter damage. Sonnax front stator support bushing 95030-09 features superior wear characteristics, eliminating premature deterioration for worry-free operation.
- Upgraded material composition outperforms OE bushing
PACKAGE CONTAINS
- Bushing (6)
SPECIFICATIONS
- Bushing Style: Precision
- Material: Bimetal, aluminum alloy lining
- Housing Bore: 1.063"
- Shaft Dia.: 0.952"
- Width: 0.393"
SYMPTOMS
- Bushing wear
- Bushing failure
- Damaged converter
CAUSE
CORRECTION
Install improved Sonnax front stator support bushing to restore critical clearances and resist untimely wear.
