Product Description

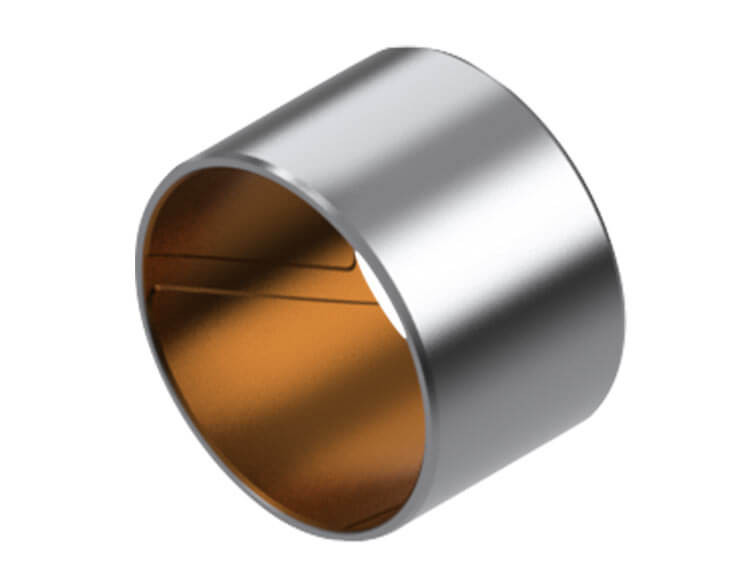

68RFE Overdrive Clutch Hub/Shaft Front Bushing
Sonnax Part Number: 72030-05
WARNING: USE OF AN ARBOR PRESS IS REQUIRED FOR CORRECT INSTALLATION. DO NOT USE A HYDRAULIC PRESS OR A BUSHING DRIVER/HAMMER COMBINATION TO INSTALL, AS DOING SO MAY DISTORT THE BUSHING AND CAUSE FITMENT ISSUES.
The front bushing in the Chrysler 68RFE overdrive clutch hub serves not only as a key support, but the oil grooves are an important path for OD clutch lubrication oil. OE bushings have lube supply grooves that vary in depth and lube oil volume. Other aftermarket bushing grooves restrict OD clutch lube to far lower levels than the OE bushings. Sonnax overdrive clutch hub/shaft front bushing 72030-05 features grooves with a 10% greater flow area than OE, providing optimum levels of lubrication and OD clutch cooling to this critical area of the transmission.
- Increases OD clutch lubrication and cooling
- Does not restrict OD clutch lubrication like other aftermarket bushings
- Upgraded material composition outperforms OE bushings
PACKAGE CONTAINS
- Bushing (5)
SPECIFICATIONS
- Bushing Style: Precision
- Material: Steel-backed Alloy
- Housing Bore: 1.218"
- Shaft Dia.: 1.115"
- Width: 0.780"
SYMPTOMS
- Bushing wear
- Bushing failure
- Inadequate lubrication
CAUSE
CORRECTION
Install improved Sonnax overdrive clutch hub/shaft front bushing to restore critical clearances, resist untimely wear and improve OD clutch lubrication.
