Product Description

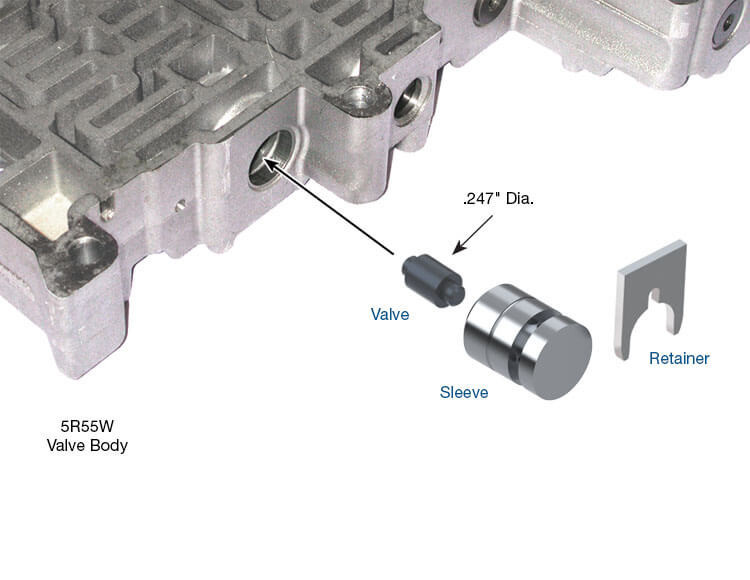

5R55S 5R55W Oversized VFS Modulator Control Valve Kit
Sonnax Part Number: 56947J-19K
TOOLING REQUIRED
- F-56947J-TL19
- VB-FIX
NOTE: Kit works in either the VFS1 or VFS2 modulator control bore locatioin.
In Ford 5R55W and 5R55S transmissions, bore wear at the VFS1 (PCA) and VFS2 (PCB) locations allows modulated line pressure to exhaust instead of feeding the overdrive, intermediate or low/reverse servos or the coast clutch. Fluid pressure loss at these apply components results in low line pressure, shift complaints and burnt clutches and bands. The Sonnax VFS modulator control sleeve and valve kit 56947J-19K allows correct hydraulic pressures to be restored to these critical apply components.
- Wear-resistant sleeve provides additional support to the control valve
- Valve is hardcoat anodized to reduce wear and has more sealing contact with the bore than OE to minimize leakage.
- O-ringed end plug provides positive seal to the bore once valve/sleeve assembly is installed.
- Spring maintains OE operating pressures.
PACKAGE CONTAINS
- Sleeve
- Spring
- Valve
- End Plug
- O-Rings (2) 1 Extra
SYMPTOMS
- Flare shifts
- Pressure control out-of-range codes
- Low line pressure
CAUSE
Bore wear at the VFS1 (PCA) and VFS2 (PCB) locations allows modulated line pressure to exhaust instead of feeding the overdrive, intermediate or low/reverse servos or the coast clutch. Fluid pressure loss at these apply components results in low line pressure, shift complaints and burnt clutches and bands.
CORRECTION
This Sonnax kit allows wear to be eliminated, future wear to be prevented and correct hydraulic pressures to be restored to critical apply components. The kit works in either modulator control bore location.
