Product Description
5R55S 5R55W Oversized TCC Modulator Plunger Valve Kit w/ OE Ratio
Sonnax Part Number: 56947J-80X
TOOLING REQUIRED
- F-56947J-TL80
- VB-FIX
Some common complaints associated with Ford 5R55W and 5R55S are high TCC slip RPMs under increasing loads, slip codes and converter apply or release concerns. These complaints are often caused by wear at the I.D. of the TCC modulator plunger valve sleeve, due to constant oscillation by the pulse width modulated TCC solenoid. This plunger valve positions the TCC modulator valve, which feeds line to the apply circuit, which controls slip rate. Wear of the sleeve will allow the TCC slip rate to continue to rise, and could prevent full lockup. Another path for hydraulic leakage can be created by the OE retaining clips raising a burr on the TCC modulator sleeve, which gouges the casting bore during disassembly.
Sonnax oversized TCC modulator plunger valve kit 56947J-80K restores hydraulic integrity to the TCC solenoid circuit with precisely toleranced parts. A new design retaining clip prevents future burr creation on the sleeve that results in valve casting damage and leakage during disassembly.
- OE stock ratio restores original lockup feel
- Hardcoat anodized aluminum valve combats premature wear
- High-grade aluminum sleeves are extremely wear-resistant
- New design retainer eliminates burr creation
PACKAGE CONTAINS

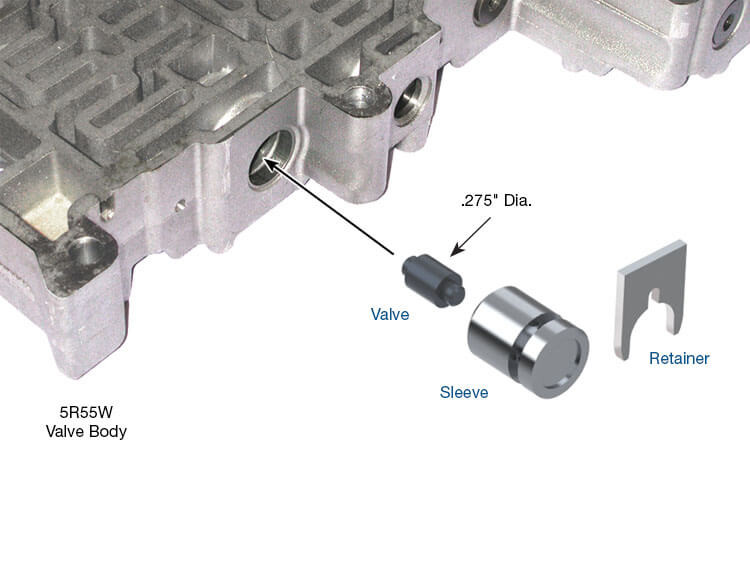

- Valve .275" dia.
- Sleeve
- Retainer
SYMPTOMS
- Damaged valve body casting
- Slip codes
- High TCC slip RPM at increasing load
- Overheated fluid
CAUSE
Plunger valve related sleeve wear reduces converter apply pressure and TCC slippage increases. OE clips raise burrs on the sleeve, which drag a groove into the casting bore during removal, allowing hydraulic leakage.
CORRECTION
Sonnax oversized TCC modulator plunger valve kit restores proper hydraulic clearances so fluid pressure can position the TCC modulator valve to fully apply lockup. The new design retainer prevents burr issues on the sleeve that create additional hydraulic leakage.
