Product Description
5L40E 5L50E Pump Pressure Regulator Valve Kit
Sonnax Part Number: 55211-08K
TOOLING REQUIRED
- 55211-TL8
In GM 5L40-E and 5L50-E transmissions, constant oscillation of the pressure regulator valve can cause excess bore wear, resulting in oil pressure loss and cross leaks. Severe wear leads to low pressure, which can cause gear ratio codes and a no 4-5 shift condition. Sonnax pressure regulator valve kit 55211-08K allows the pump bore to be refurbished to remove wear and hydraulic integrity to be restored. The highly wear resistant sleeve provides more contact surface with the valve for increased stability and durability, preventing future wear.
- Valve and sleeve kit restores hydraulic integrity to the pressure regulator valve circuit
- Allows salvage of expensive pumps

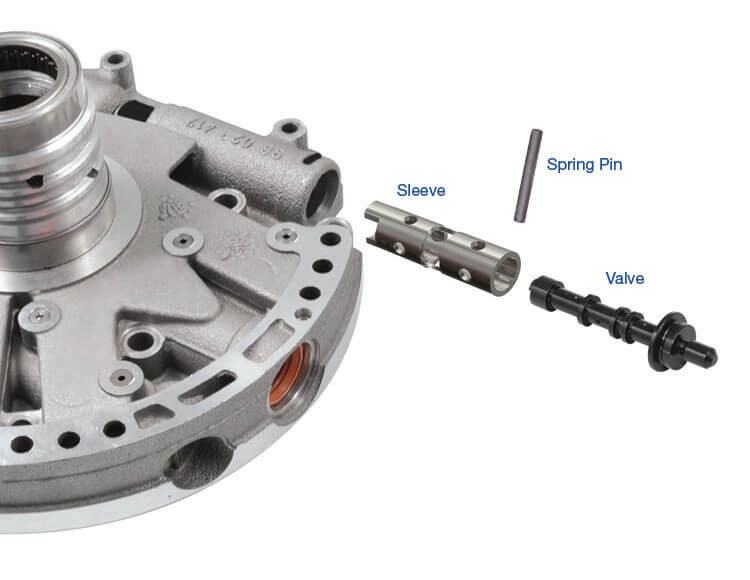

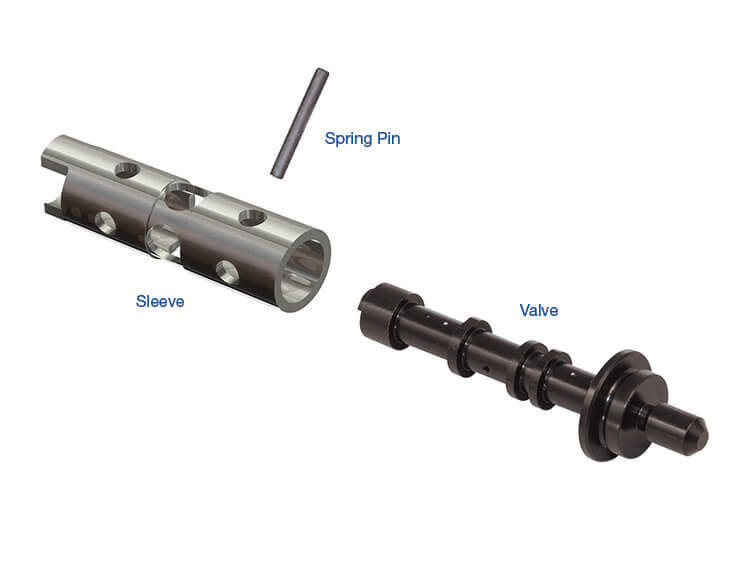

PACKAGE CONTAINS
- Valve
- Sleeve
- Spring Pin
SYMPTOMS
- Low pressure
- Pump damaged
- Pump slide wear
- Gear ratio codes
- No 4-5
CAUSE
Wear at the main pressure regulator bore causes instability in decrease oil and balance oil.
CORRECTION
Sonnax pressure regulator valve enables the repair of the pressure regulator bore, returning stability to decrease oil and balance oil.
Product Videos
Custom Field
Requires Tooling? Yes
