Product Description
4R44E 4R55E 5R44E 5R55E Oversized Coast Clutch Valve Kit
Sonnax Part Number: 37947-33K
TOOLING REQUIRED
- 37947-TL33
NOTE: Although this valve can be used on any valve body independent of other repairs, we strongly suggest this kit be used with Sonnax's Converter Regulator Sleeve Kit (37947-09K). These two line-ups share the same bore and are both commonly worn.
The coast clutch valve functions differently in 4R44E/55E units and 5R44E/55 units. The valve is the same but the porting used in their different separator plates makes the difference and will create different complaints as a result of valve or bore wear. In the 4R units, this valve is needed to get proper overdrive servo apply and bring on coast clutch. In the 5R units, the valve is needed to vent overdrive servo release oil and to bring on the coast clutch. Engine braking or loss of coast clutch are common complaints in either unit. Complaints of loss of 4th gear in a 4R or loss of 2nd or 5th gear in a 5R are associated with this valve. The Sonnax oversized coast clutch valve kit 37947-33K and tooling salvages the valve body and restores proper coast clutch function in either style unit.
- Oversized valve allows valve body to be refurbished and salvaged.
- Hard-coat anodized valve resists wear.
- Elongated front spool adds stability and prevents blow-by leakage.
- Annular groove centers the valve hydraulically to prevent wear.
- Recalibrated spring provides proper regulating pressure for oversized valve.
- O-ringed end plug positively seals bore to help maintain coast clutch and TCC pressures.

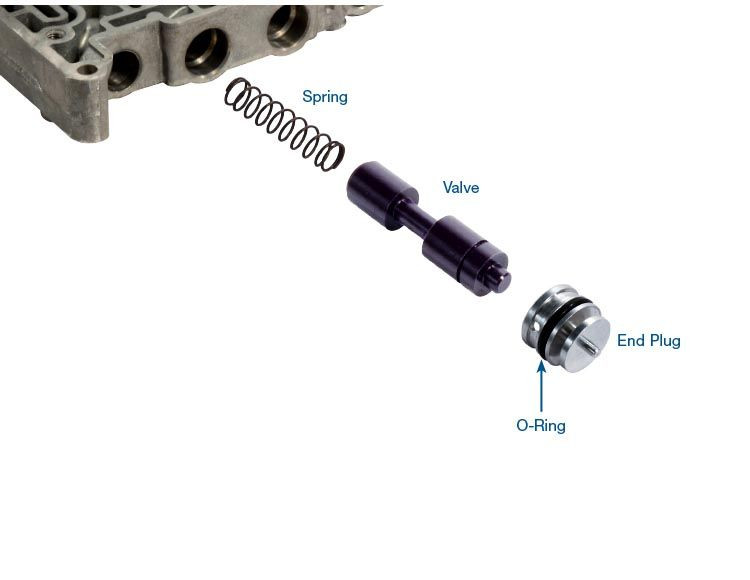

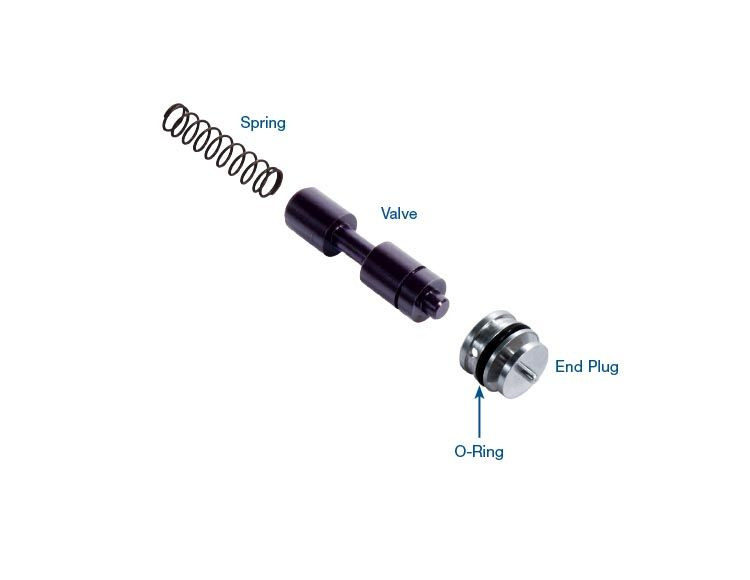

PACKAGE CONTAINS
- Valve
- Spring
- O-Ring
- End Plug
SYMPTOMS
- No engine braking in D3 to low
- No 4th (4R44E/55E)
- No 2nd (5R44E/55E)
- No 5th (5R44E/55E)
- No coast clutch apply
CAUSE
CORRECTION
The Sonnax oversized coast clutch valve kit allows the valve body bore to be refurbished to restore the proper clearance with the valve and eliminate leakage.
